3-5 3 Lubrication points 2.2 Printing head 2.2.1 SY -axis SY -axis lubrication points SY -axis guide Grease nipples SY -axis guide Grease nipples Grease gun: Manual lubrication: SY -axis ball screw Grease nipples 53305-N…
3-4
3
Lubrication points

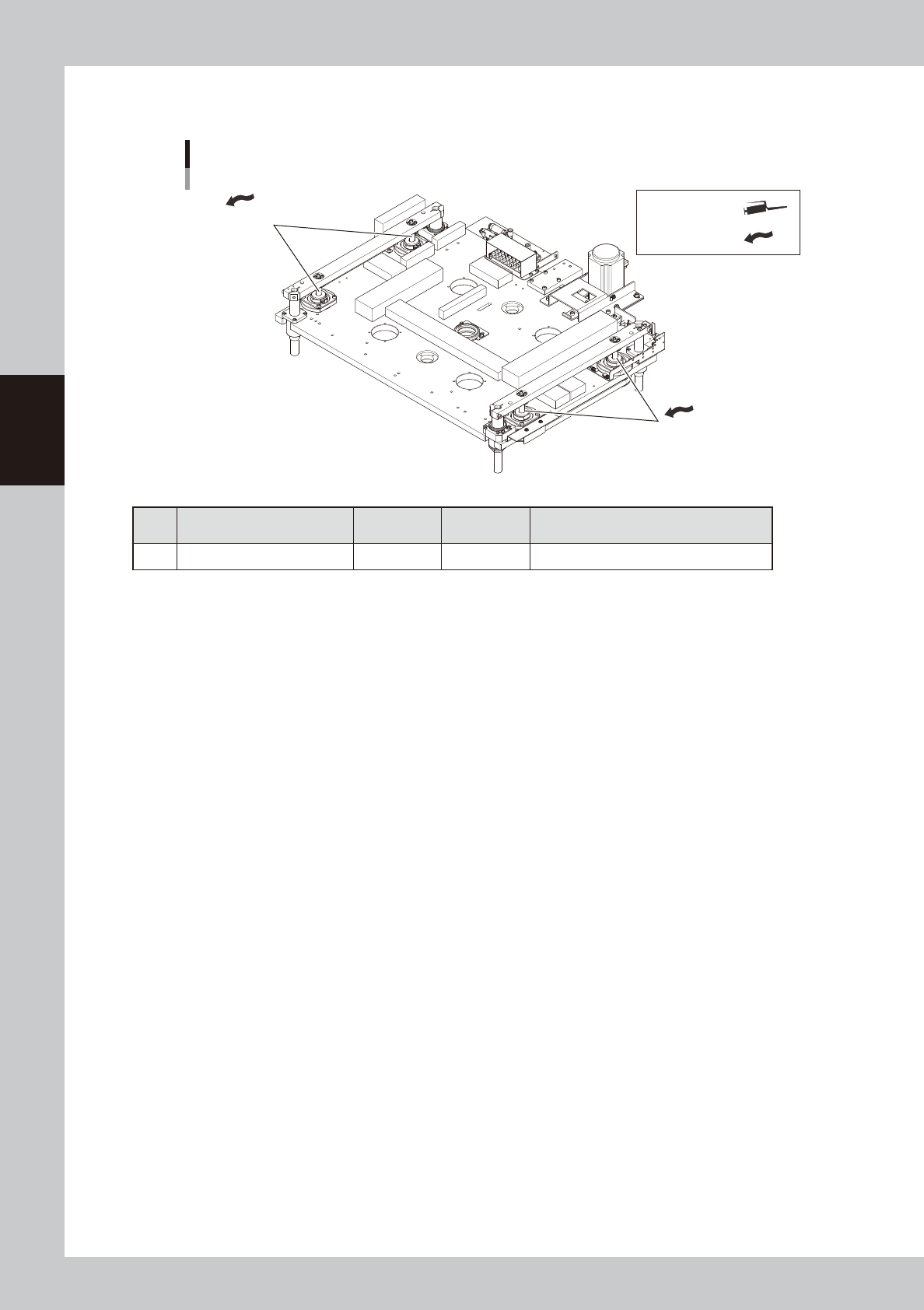

2.1.3 Z-axis
Zaxis lubrication points
Ball screw
Ball screw
Grease gun:
Manual lubrication:
53304-N1-00
Lubrication point
Lubrication
location
Interval Lubrication method
Y-axis ball screw 4 Monthly Manual lubrication
3-5
3
Lubrication points

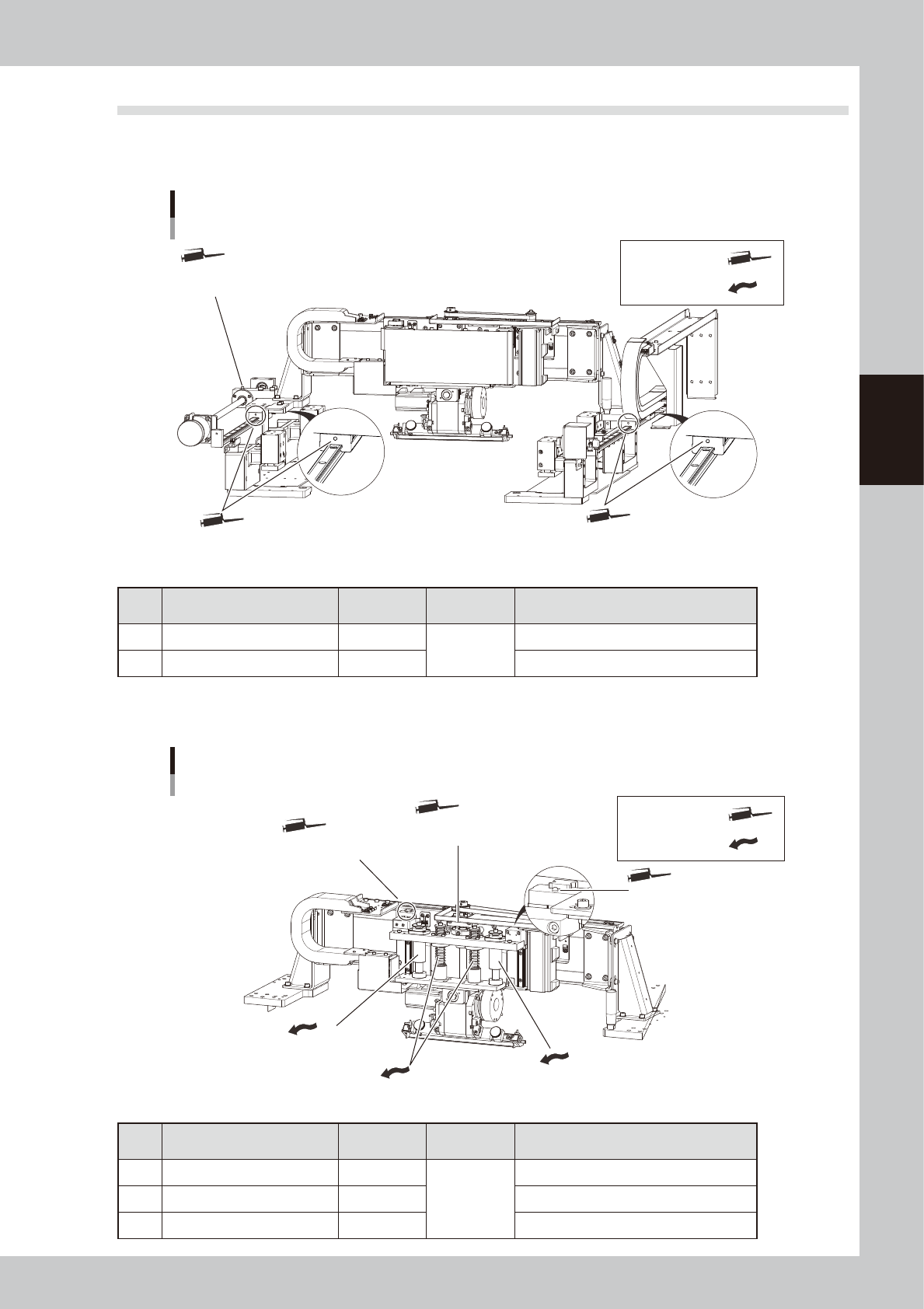

2.2 Printing head
2.2.1 SY-axis
SY-axis lubrication points
SY-axis guide
Grease nipples
SY-axis guide
Grease nipples
Grease gun:
Manual lubrication:
SY-axis ball screw
Grease nipples
53305-N1-00
Lubrication point
Lubrication
location
Interval Lubrication method
1 SY-axis guide 4
Monthly
Grease gun
2 SY-axis ball screw 1 Grease gun
2.2.2 SZ-axis
SZ-axis lubrication points
Guide shaft
Guide shaft
SZ-axis guide
Grease nipples
SZ-axis guide
Grease nipples
Spring
SZ-axis ball screw
Grease nipples
Grease gun:
Manual lubrication:
53306-N1-00
Lubrication point
Lubrication
location
Interval Lubrication method
1 SZ-axis guide 2
Monthly
Grease gun
2 SZ-axis ball screw 1 Grease gun
3 Guide shaft, spring 4 Manual lubrication
3-6
3
Lubrication points

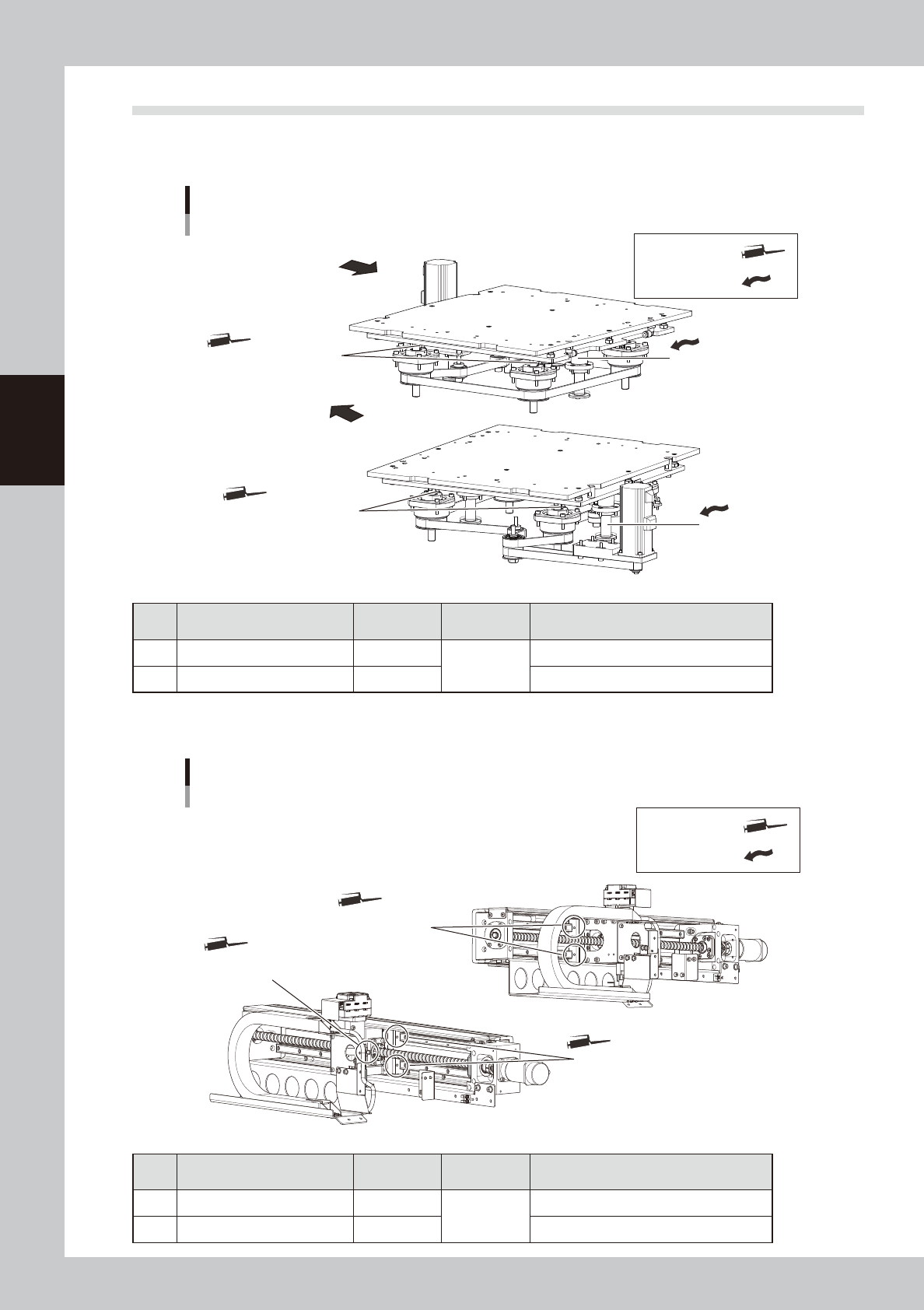

2.3 Conveyor unit
2.3.1 PU-axis
PU-axis lubrication points
Guide shaft
PU-axis ball screw
Grease nipples
Front of machine
Front of machine
Grease gun:
Manual lubrication:
Guide shaft
PU-axis ball screw
Grease nipples
53307-N1-00
Lubrication point
Lubrication
location
Interval Lubrication method
1 PU-axis ball screw 4
Monthly
Grease gun
2 PU-axis guide shaft 2 Manual lubrication
2.3.2 MX-axis
MX-axis lubrication points
MX-axis guide
Grease nipples
MX-axis guide
Grease nipples
MX-axis ball screw
Grease nipples
Grease gun:
Manual lubrication:
53308-N1-00
Lubrication point
Lubrication
location
Interval Lubrication method
1 MX-axis guide 4
Monthly
Grease gun
2 MX-axis ball screw 1 Grease gun
