xxv Safety instructions W arning/caution labels YCP10 cleaning unit 93202-N1-00 W arning/caution labels YCP10 conveyor controller 90K41-001660 93203-N1-00
xxiv
Safety instructions
3.4 Label positions
The following warning/caution labels are attached to the YAMAHA products to ensure safe and correct use.
Check that the information on each label is clearly legible and comply with the instructions.
For safety precautions other than those on the labels shown in this section, see the instructions in "1. Safety".
n
NOTE
Basically, labels are attached to the positions shown below, although they may differ slightly depending on the
machine model.

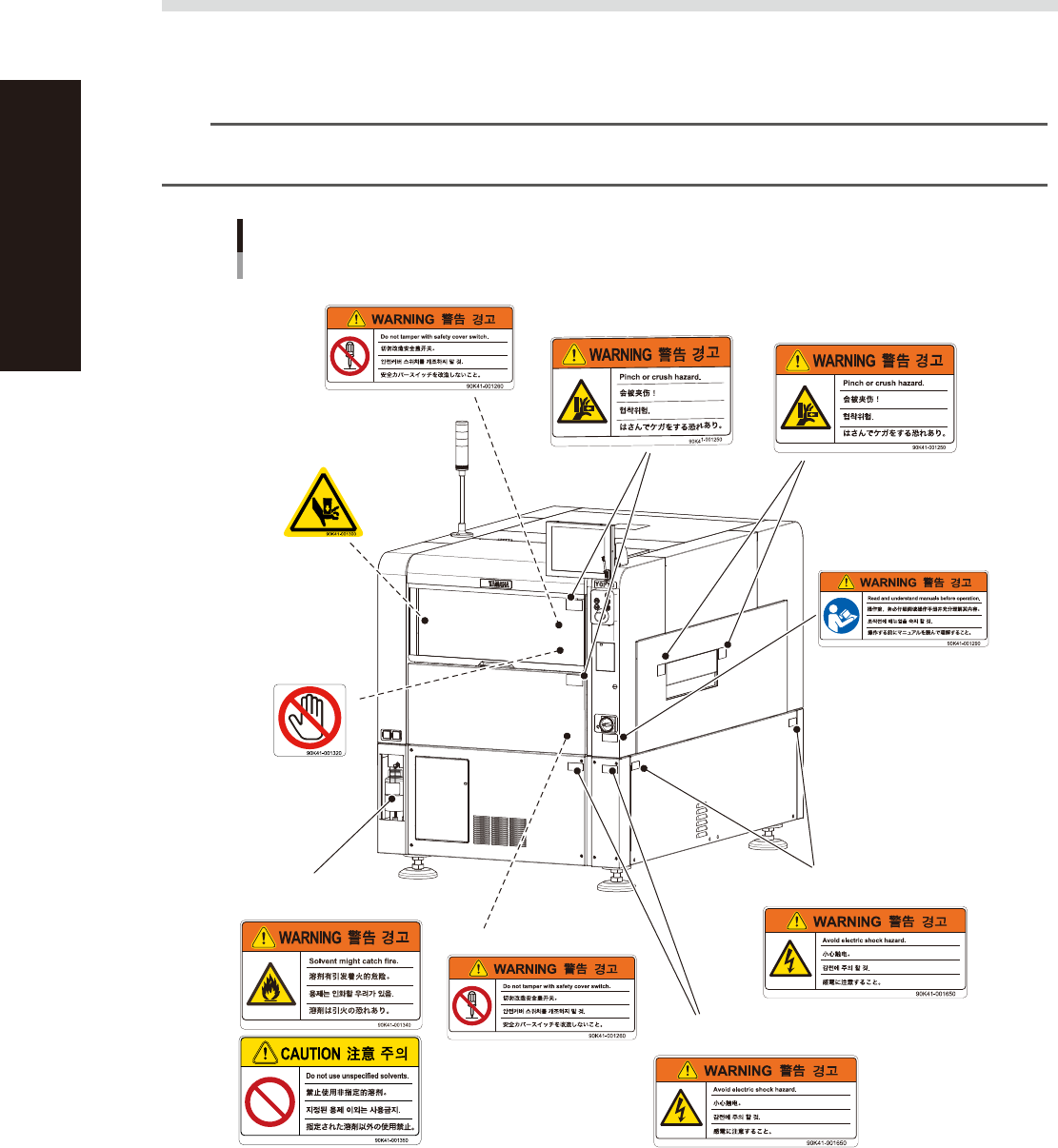

Warning/caution labels
YCP10

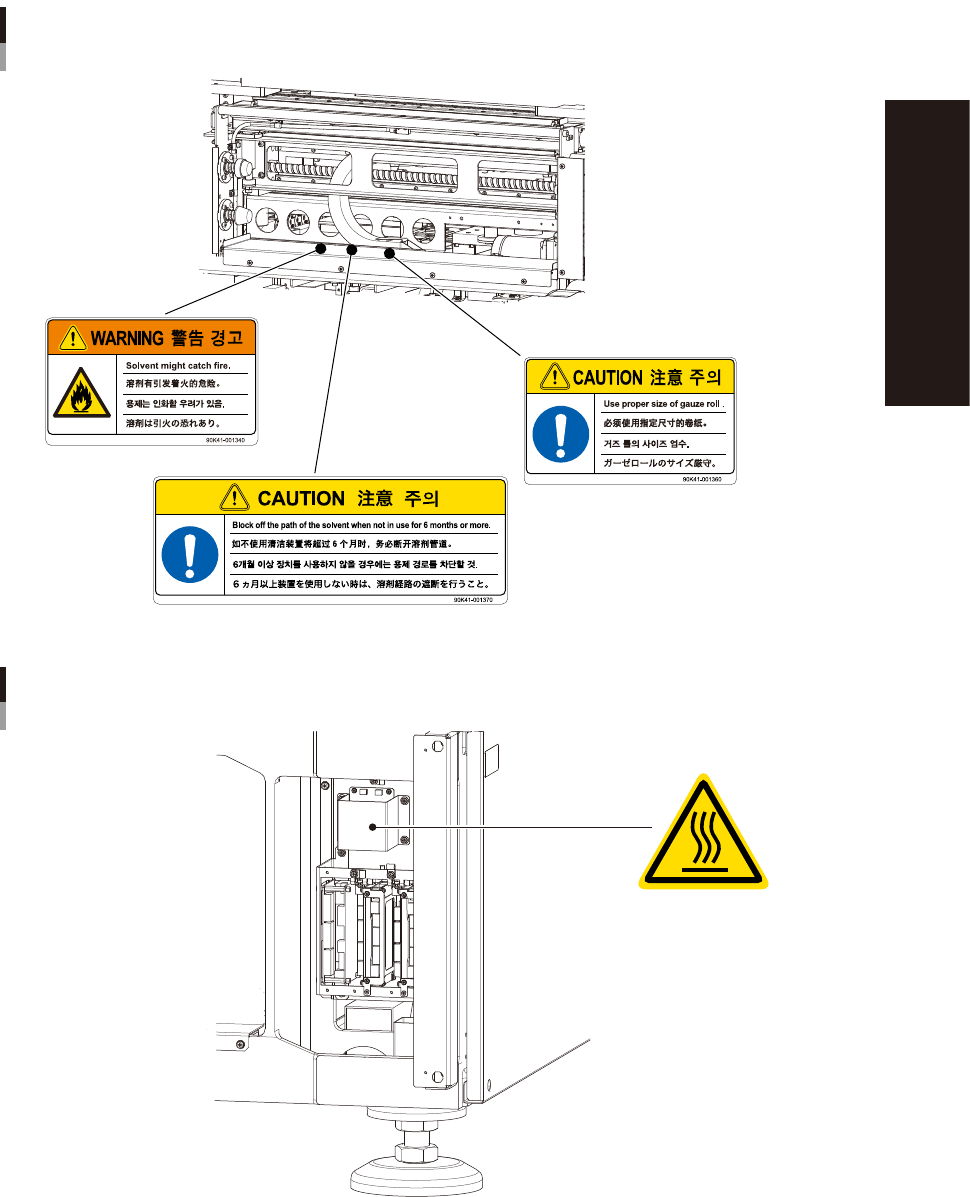

■ Front lower panel, lower right panel,
rear lower panel
■ Side panel (left and right)
on front and rear sides
■ Upper door, front panel
■ Printing table/mask clamp
(inside safety cover)
(Left and right inside upper door)
■ Inside upper door
■ Main switch
■ Conveyor opening
(left and right)
■ Cleaning alcohol
(Solvent bottle)
■ Vision camera unit
■ Inside cleaner cover
93201-N1-00
xxv
Safety instructions
Warning/caution labels
YCP10 cleaning unit
93202-N1-00
Warning/caution labels
YCP10 conveyor controller
90K41-001660
93203-N1-00
Operation Manual
