2.3 Powering off the machine
To power off the machine, follow these steps.
1
Press the [Off] button on the operation screen.
[Off] button
[Off] button
64205-N1-10
2
Press [Yes] button when the "SHUT DOWN" screen appears.
"SHUT DOWN" screen
64206-N1-00
3
Press the [OK] button when the "Move-to-origin" screen appears.
All axes move back to their origins.
2-12
2
Basic operations
4
Press [Yes] button when the "SHUT DOWN" screen appears.
The application software automatically closes.
e
5
Press the emergency stop button.
When the "emergency stop" screen appears, press the emergency stop button and then press the [OK]
button.
6
Turn off the machine power switch.
When the message to power off the machine, "It is now safe to turn off your computer" appears, turn
counterclockwise the power switch on the machine to power off the machine.
c
CAUTION
Data or machine might be damaged or lost if powering off the machine without following the above sequence.
c
CAUTION
To start the machine again after powering off the machine, wait for 2 sec. or longer and power on the machine. If you
ignore this instruction, a trouble may occur when starting the machine again.
2-13
2
Basic operations
3. Operation screen description
The basic configuration and operation methods of the software screens are explained in this section.
Please read through this section before operating the machine.
n
NOTE
As standard specification systems have no keyboard or mouse, all operations are performed from the touch-panel. A
screen appears at parameter input operations, and the desired operations and inputs can then be performed with
the touch-pen.
3.1 Basic configuration of operation screen
The operation screen can be divided into the "Status", "Main menu button" and "Submenu button and
parameter" areas as shown below.

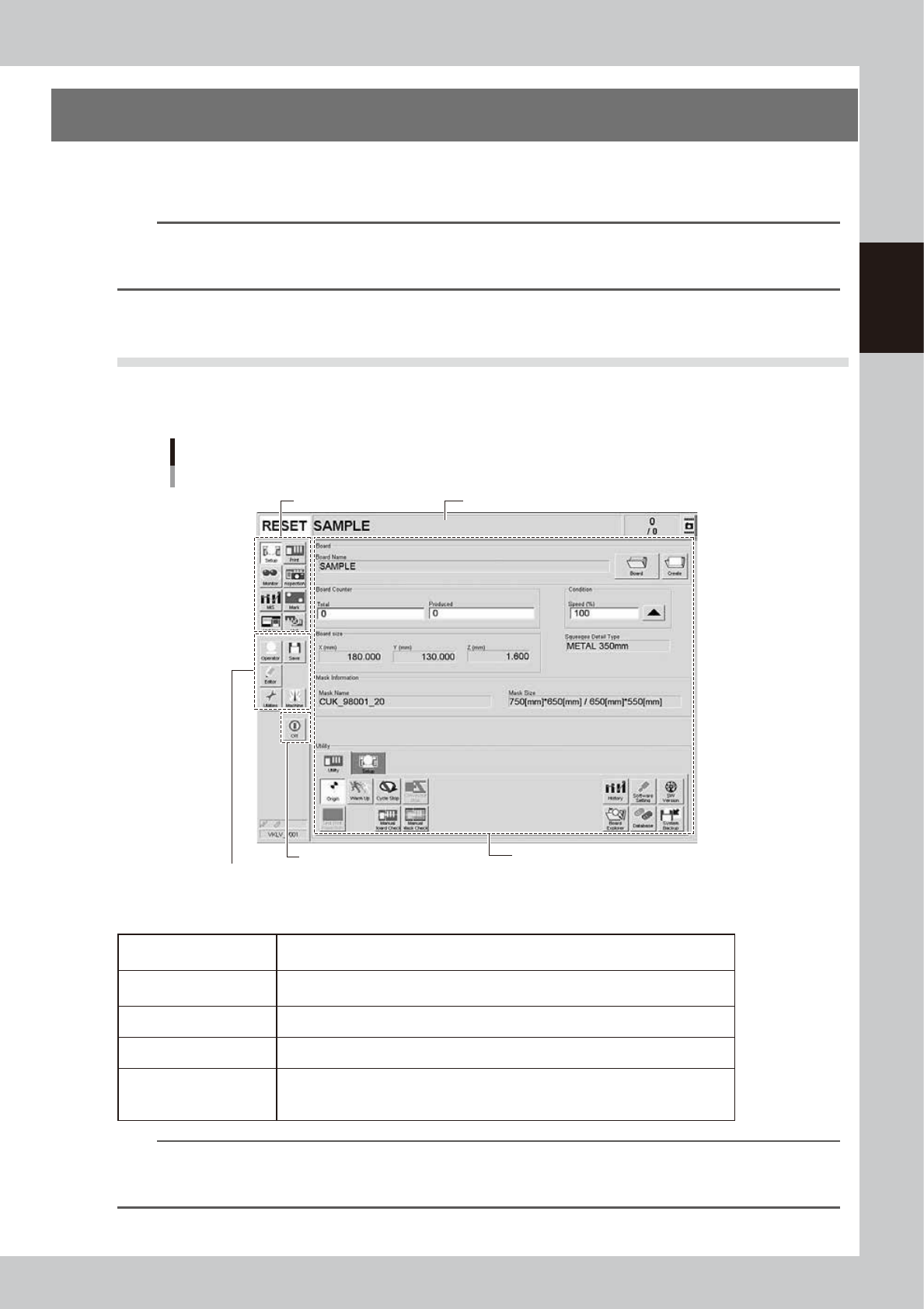

Operation screen basic elements
Setup screen (after selecting board data)
Submenu button
and parameter area
Main menu button area 1
Main menu button area 3
Main menu button area 2
Status area
64207-N1-10
n
Description of each area
Status area
Displays the current machine status on the left end, the selected board data name
in the middle and the number of boards that were produced on the right end.
Main menu button area 1
Shows the main menu buttons used to operate the machine. The submenu button
and parameter area will change according to the selected main menu button.
Main menu button area 2 Shows the menu buttons used to call up auxiliary functions.
Main menu button area 3 Shows the [Off] button to power off the machine power.
Submenu button and
parameter area
Displays the submenu buttons and parameters for machine operation and data
setting.
This area will change according to the selected main menu button.
TIP
The submenu button and parameter area will change according to the selected main menu button. For details on
the menu button functions and parameter items on the operation monitor, see "Chapter 4 Daily operation" to
"Chapter 7 Other functions" in this manual.
