4-10
4
Daily operation
5
Install a new plate.
Next, install a plate suitable for the roll sheet
width to be used.
63408-N1-00
6
Insert the shaft holders into the roll
on the feed side (upper side).
Insert the shaft holders into both sides while
carefully checking the direction of the roll
sheet.
7
Install the roll on the take-up side
(lower side).
Insert the shaft holders onto the roll core in
the same manner as described for the feed
side and install the roll at the set position.
63409-N1-00
8
Feed the gauze roll through the
guides.
Feed the gauze roll through the guides while
keeping the parallelism between the left
and right.
c
CAUTION
Do not attempt to use the backside of the used up
gauze roll.
9
Attach the top end of the new
gauze roll onto the roll core
inserted onto the take-up shaft.
Fasten the top end of the new gauze roll
with an adhesive tape or similar item so that
both ends feed in parallel with each other.
After that, turn the take-up shaft 2 or 3
rotations to wind up the gauze roll.
c
CAUTION
Make sure to wind up the gauze roll. If the gauze roll is
loosen and operate the machine, it will interfere with
each part and the machine may be damaged.
0
Close the front panel and cancel
the emergency stop.
Mounting a new plate.
Step 5
Plate (for replacement) Portion where the solvent accumulates.
Mounting the adaptor (shaft holder).
Step 7
Roll adaptor on drive side
(Shaft holder)
Insert this part onto
the roll core.
4-11
4
Daily operation
n
Machine setting when replacing the cleaner width change unit (option)
When replacing the cleaner width change unit (option), "Cleaner Width" of the machine setting needs to be changed.
c
CAUTION
· To change the machine setting, the administrator authority is required.
· Do not change any parameter as each parameter of the machine setting has been set at shipment (or at installation).
· When changing the cleaner width, refer to the descriptions shown below.
1. Press the [Machine] button on the operation screen to open the "VmSpec" window.
2. Click [Setting] - [Machine Data] - [Cleaner Setting] - [Basic Setting].
3. Set "Cleaner Width".
Select a size of the replaced cleaner width change unit from the drop down list.
4. Click the close button at the upper right corner of the screen to exit the setting.
When you have changed the data, click [Yes] on the "Exit" screen.

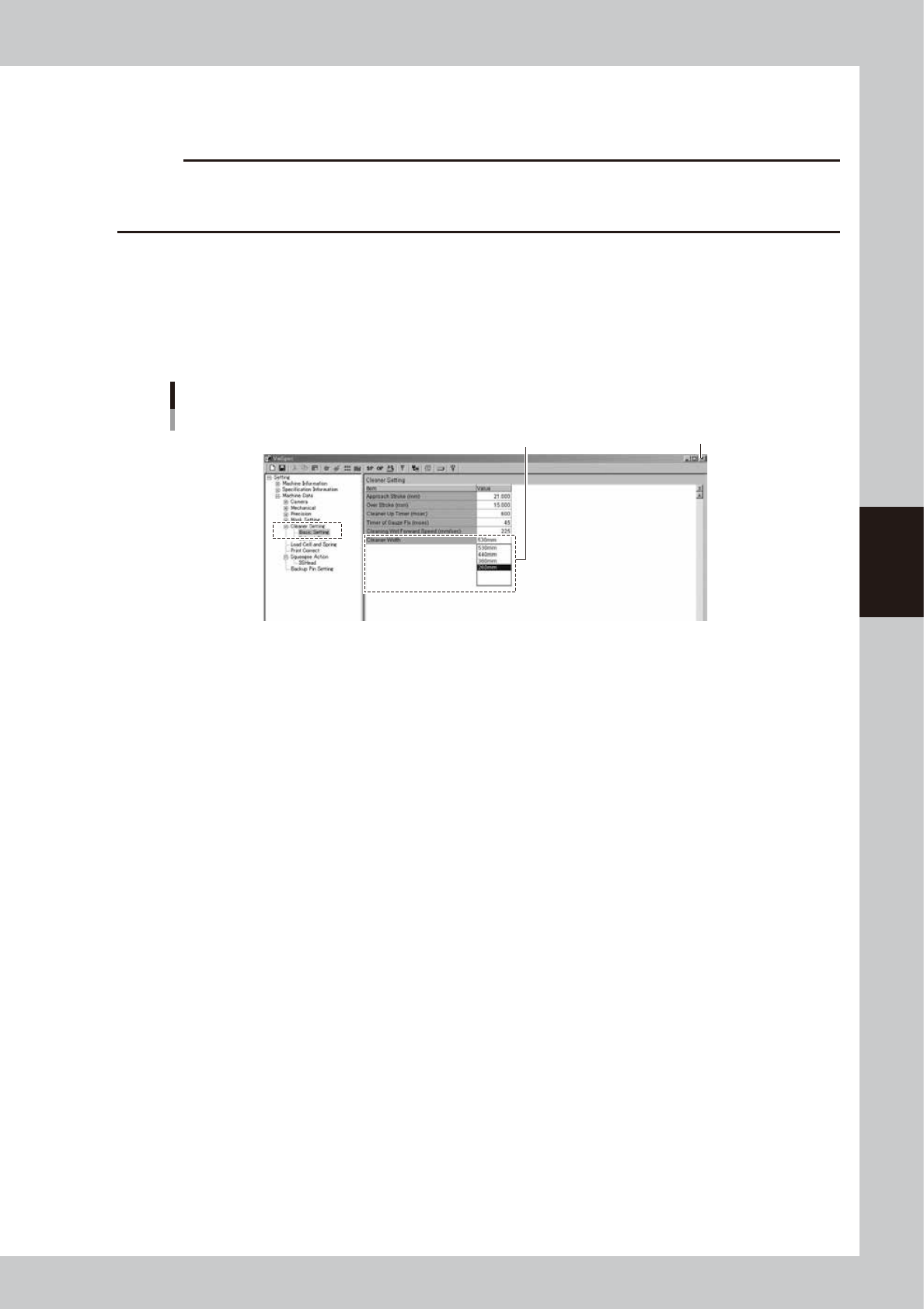

"VmSpec" window
[Cleaner Setting]  [Basic Setting]  [Cleaner Width]
Close button
Select a size and set it.
64423-N1-00
5. When you have changed any value, load the board data again.
As the board data is loaded again, the changes are then enabled.
4-12
4
Daily operation
6. Refilling the cleaning solvent
6.1 Precautions when handling cleaning solvent
w
WARNING
USE ONLY ISOPROPYL ALCOHOL OR ETHYL ALCOHOL (ETHANOL) AS THE CLEANING SOLVENT. OTHER SOLVENTS MAY
CAUSE FIRES.
w
WARNING
NEVER USE ACETONE FOR CLEANING. ACETONE MAY DAMAGE SOLVENT TUBES OR CLEANING UNIT, CAUSING CLEANING
FLUID TO LEAK THROUGH DAMAGED PARTS. ALSO BE SURE TO USE VIRGIN CLEANING FLUID (DO NOT USE USED CLEANING
FLUID).
w
WARNING
BE CAREFUL WHEN USING ISOPROPYL ALCOHOL, SINCE INHALING ALCOHOL FUMES OVER LONG PERIODS CAN BE
HAZARDOUS TO HEALTH.
6.2 Refilling the cleaning solvent
When the fluid level in the solvent bottle is below the solvent run-out sensor, the error screen will appear and
the wet cleaning cannot be performed.
The cleaning solvent bottle is located at the lower left portion on the front of the main unit.
Follow the steps below to refill the solvent.
1
Take out the solvent bottle.
Unplug the connector while pulling the outer
ring of the connector on the machine main
unit side that is connected to the solvent
bottle.
63410-N1-00
2
Refill the bottle with solvent.
Use isopropyl alcohol or ethyl alcohol as the
cleaning solvent.
n
NOTE
Fully refill the bottle with solvent. Additionally, check
that the bottle cap is closed completely.
3
Reinstall the solvent bottle back to
its original position.
Insert the connector on the solvent bottle
cap into the mating connector on the
machine.
4
Clear the error screen and check
the status display.
Check that the yellow indication lamp on
the top of the machine and "error" display in
the status area on the operation screen
have disappeared.

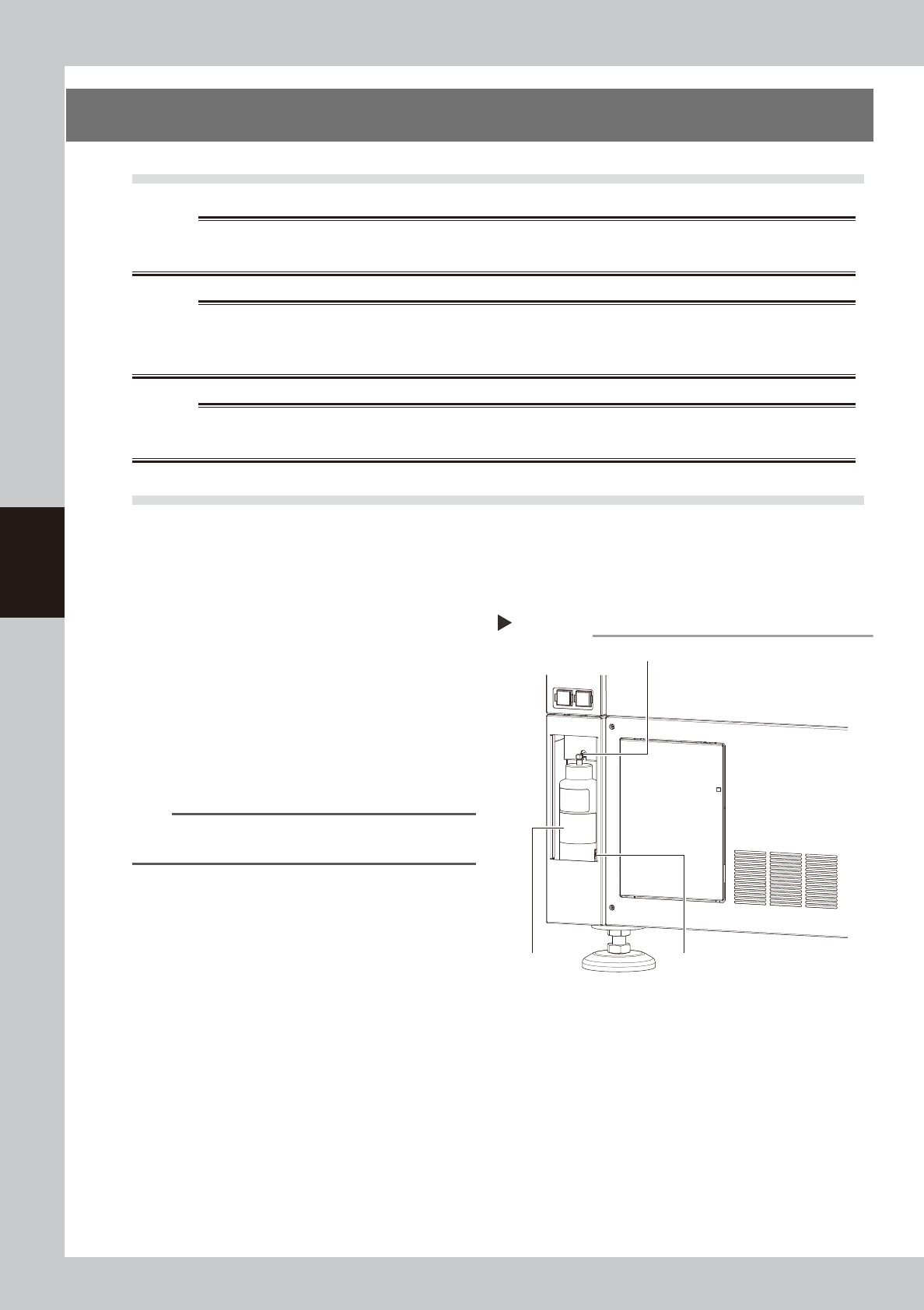

Solvent bottle
Step 1
Solvent bottle Solvent run-out sensor
Unplug the connector (while pulling the outer ring).
