4-19 4 Daily operation 8. Setting up the mask and squeegee This section explains procedures for clamping the mask (stencil) you have prepared on the printing table and installing the squeegee onto the squeegee head. e 1 …
4-18
4
Daily operation
4
Secure the mask adaptor.
Turn the mount knob to secure the mask adaptor.
5
Raise the clamp plate.
Raise the clamp plate of the mask adaptor to attach it to the mask clamp on the machine side. Since a
magnet is provided on the adaptor, the clamp plate is kept raised.
6
Install the right rear mask adaptor.
Install it in the same manner as the left rear one.
7

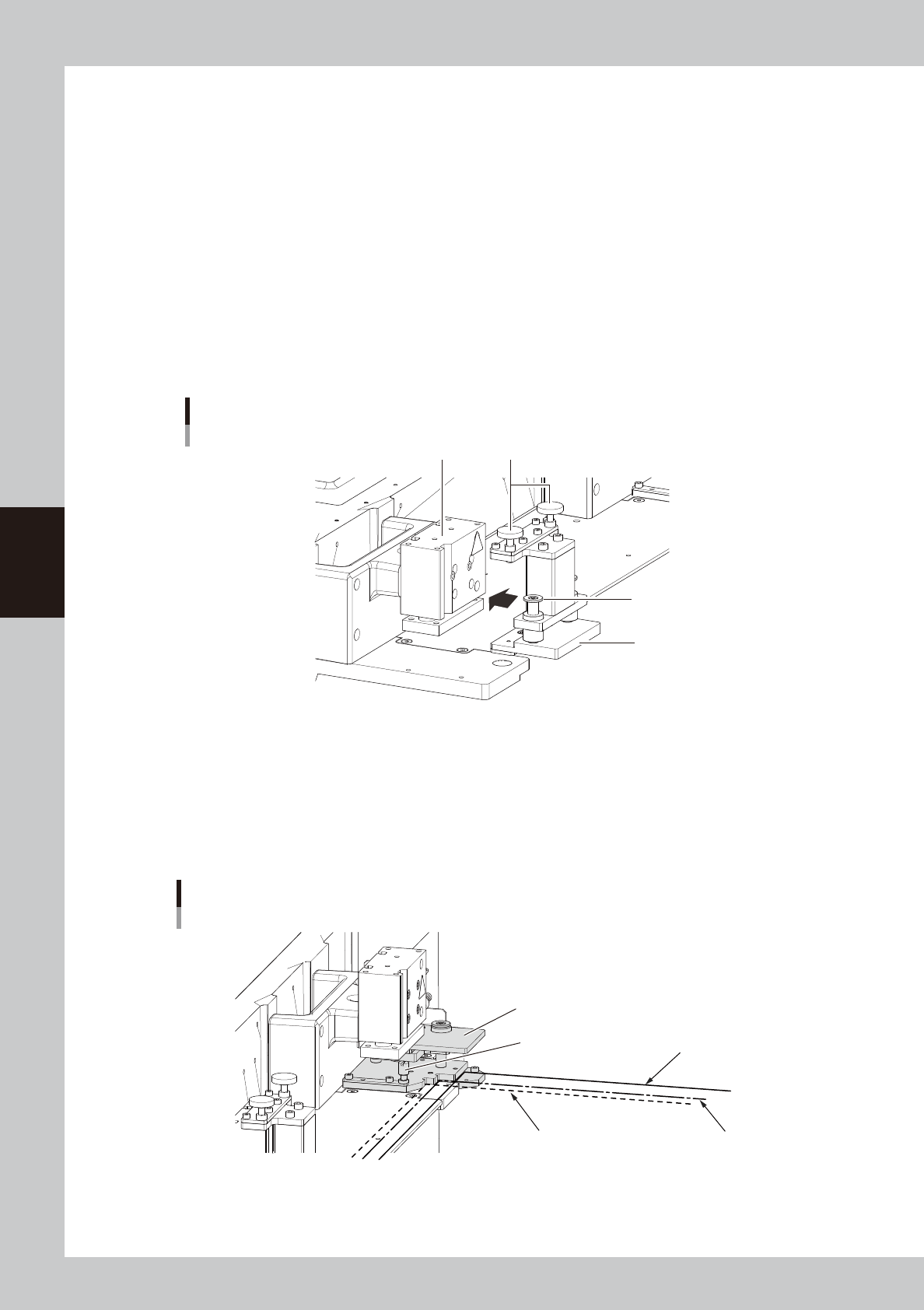

Install the front mask adaptors on the right and left sides.
1.
Fit the mask adaptor from the side to fasten the mask clamp with the guide as shown in the figure
below.
2. Turn the mount knob to secure the mask adaptor.
3. Raise the clamp plate.
Guide
Mask clamp Mount knob
Installing the mask adaptor
Clamp plate
63428-N1-00
8
Install the L side (X direction) stopper.
Install the mask stopper pin at the specified position of the left mask plate while referring to the label
stating “Mask sizes and stopper positions” attached to the machine.
9
Set the mask.
Set the mask while referring to the mask installation position shown in the figure below and turn on the
mask clamp switch to secure the mask.
Mask adaptor
Mask installation position
Clamp plate
Mount knob
"550x650" mask position
"600x550" mask position
"584x584" mask position
63421-N1-00
4-19
4
Daily operation

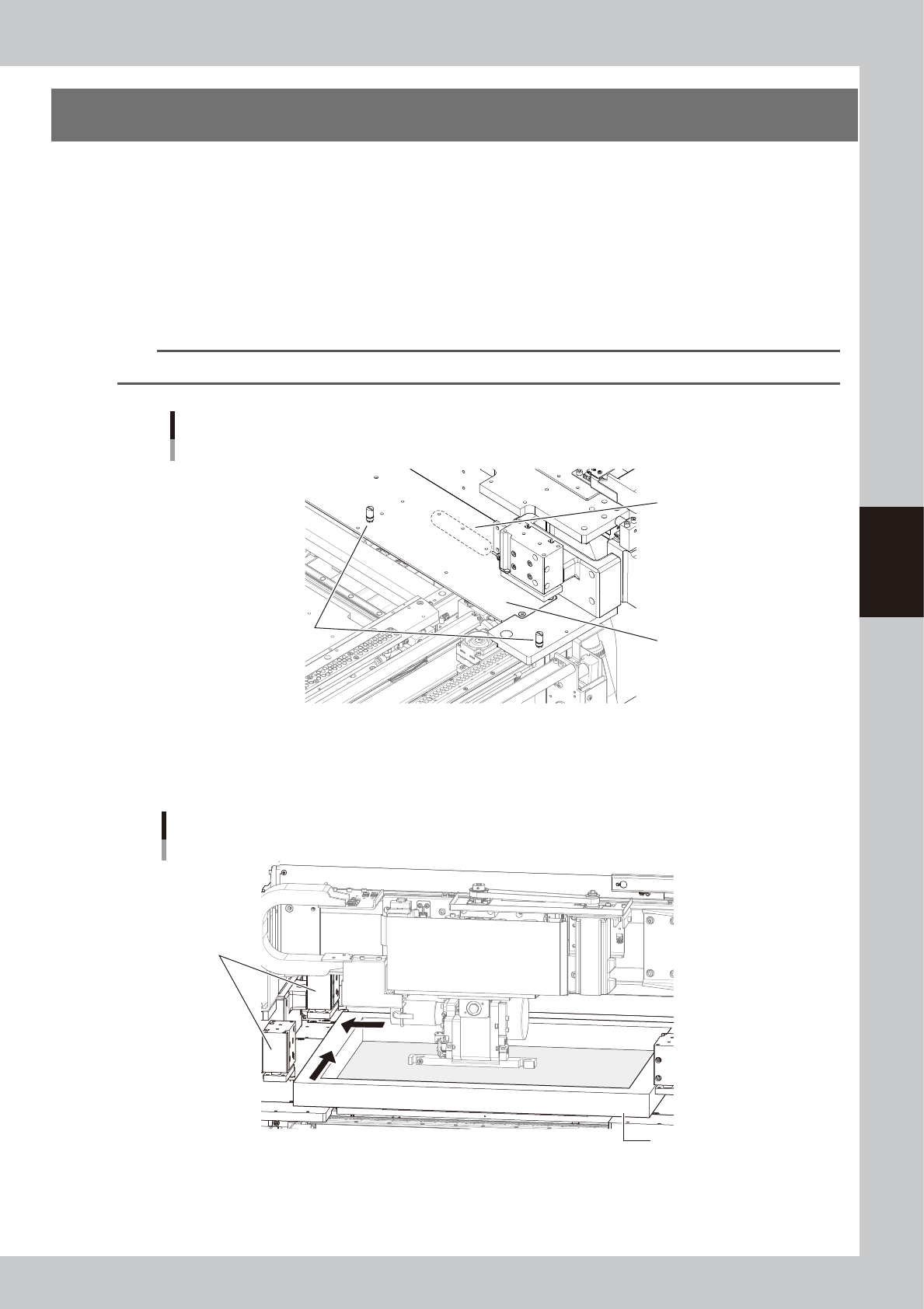

8. Setting up the mask and squeegee
This section explains procedures for clamping the mask (stencil) you have prepared on the printing table and
installing the squeegee onto the squeegee head.
e
1
Press the emergency stop button and open the upper door.
2
Check or change the mask stopper pin position.
If you are using a mask whose frame size is different from the mask previously used, you must change
the mask stopper pin position on the left side of the printing table (W and L). Screw-in the mask stopper
pin into its correct position while referring to the figure affixed to the inside of the upper door and
"7.1 Mask size and mask stopper pin position" in this Chapter.
TIP
It is convenient to insert the pins not in use on the holes on mask guide plate not in use.
Mask stopper pin
Mask stopper pins
Holes for pins not in use
Mask guide plate
63416-N1-10
3
Bring the mask in contact with the stopper.
While keeping the mask frame horizontal, fully insert it in against the left stopper pins along the rear
stopper pins on the printing table.
Mask frame setup
Mask clamp
Mask frame
63417-N1-00
4-20
4
Daily operation
4
Clamp the mask.
With the mask kept in contact with the left corner on the rear of the printing table, turn the mask clamp
switch located on the right of the machine clockwise to clamp the mask.
c
CAUTION
Be careful not to pinch or crush fingers between the mask frame and mask clamps.
5

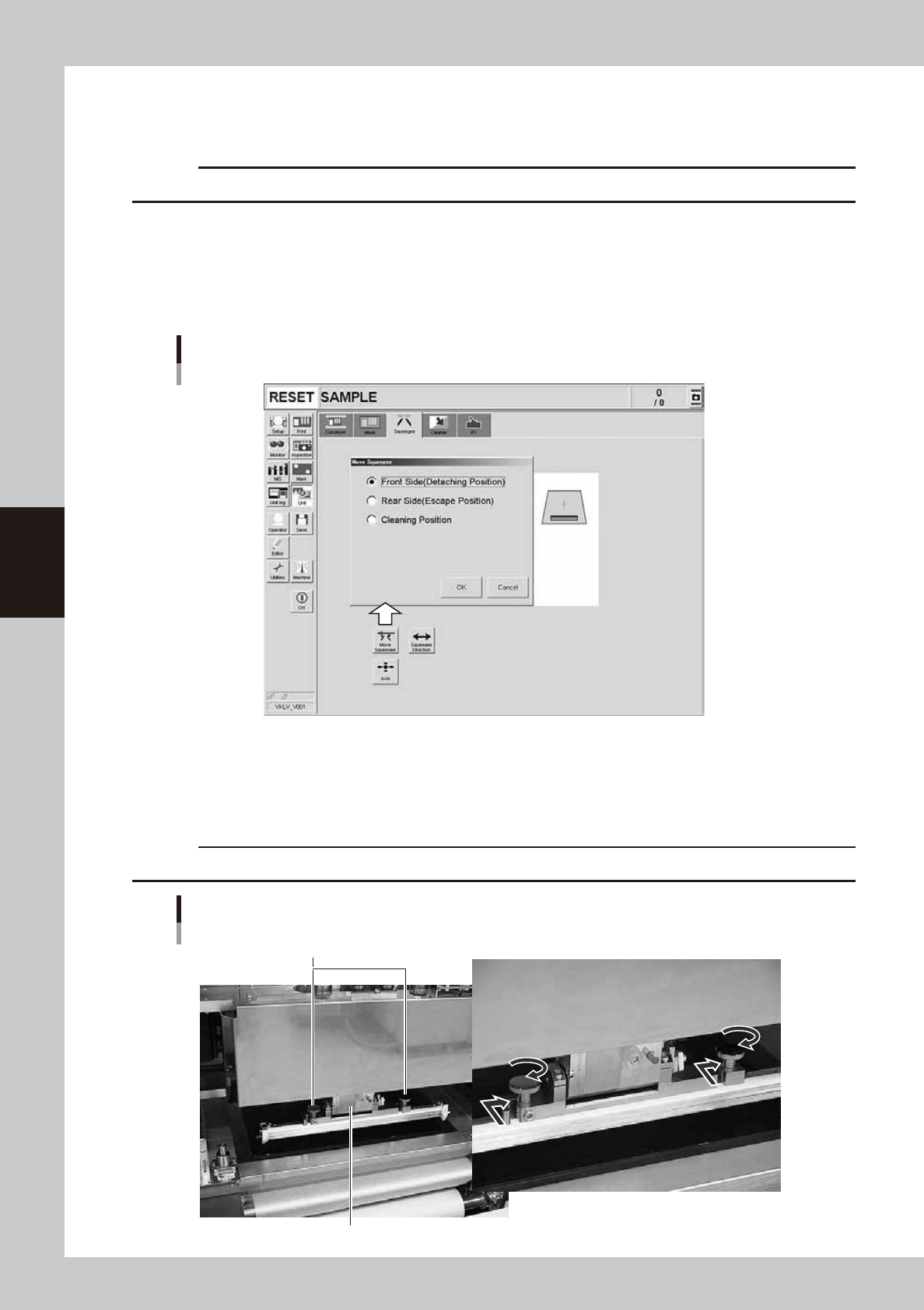

Move the squeegee head to the attach/detach position.
1. After closing the upper door and canceling emergency stop, press the [Move Squeegee] button.
The "Move Squeegee" screen appears.
2. Select the "Front Side" position (attach/detach position) and press the [OK] button.
The squeegee head moves to the front side (towards you).
"Move Squeegee" screen
64409-N1-10
e
6
Press the emergency stop button and open the upper door.
7
Install the squeegee to the squeegee head.
Fit the mount knobs into squeegee head holder and tighten them as below.
c
CAUTION
Be sure to use squeegees specified for use with the YCP10.
Attaching the 3S squeegee
Mount knobs
Squeegee holder
63418-N1-00
