5-1
5
Creating and setting the data
1. Creating new data
First, you must register a new board name to create new data. Register a new board name as follows.
1

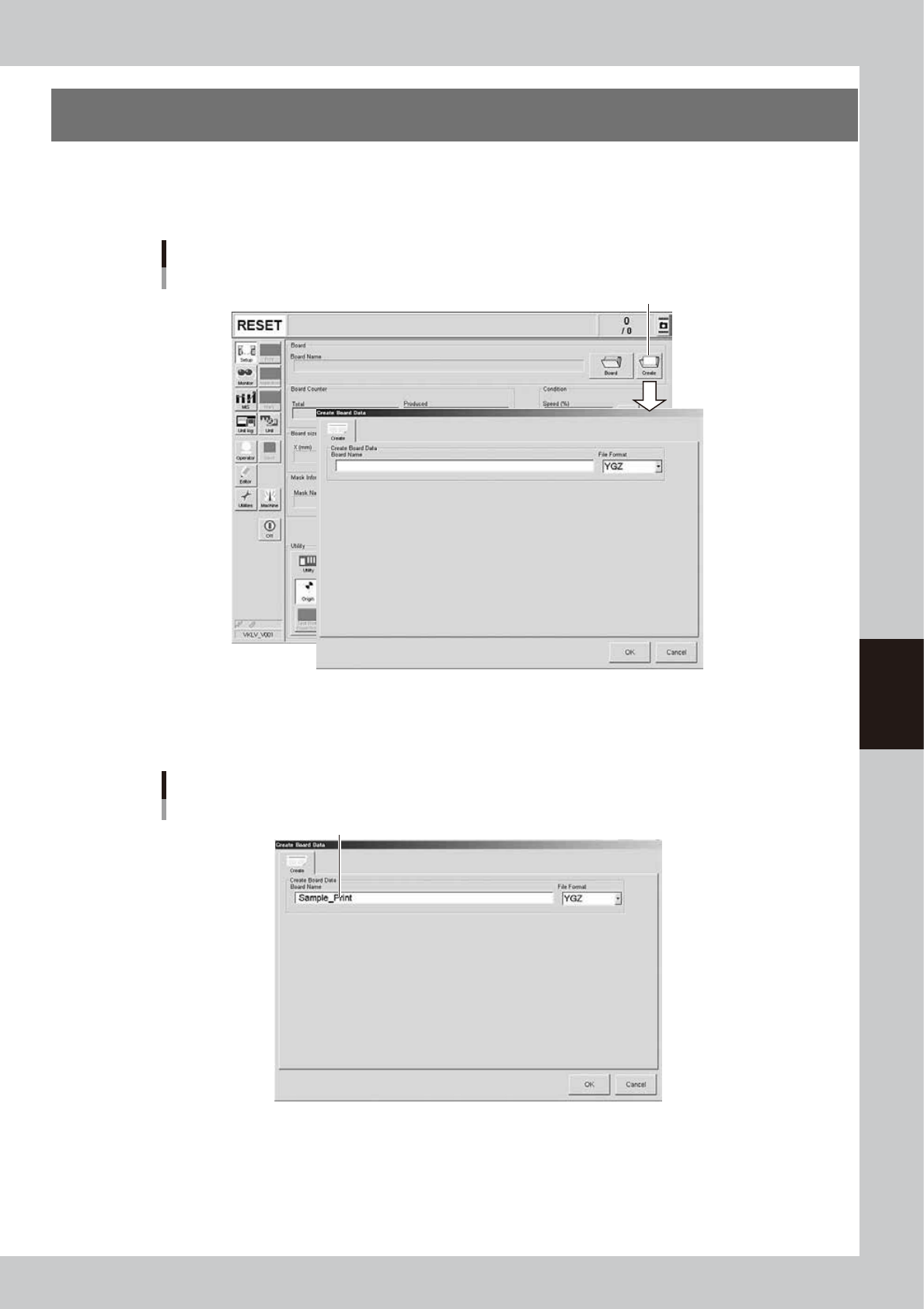

Press the [Create] button on the Setup screen.
The "Create Board Data" screen appears as shown below.
[Create] button
“Create Board Data” screen
64501-N1-10
2
Enter a board name in the "File name" box.
Enter a board name within 20 alphanumeric characters from the keyboard.
Do not use spaces and symbols other than underbars ( _ ) .
Entering a board name
Enter the board name and press [OK].
64502-N1-00
5-2
5
Creating and setting the data
3
Press the [OK] button.
The display returns to the Setup screen.
TIP
An alert screen appears if a board data with the same name has already been registered. If this happens, press the
[Cancel button and reenter a different name. (If you register the same name by overwriting the previous data, press
the [OK] button.)
4
Create necessary data.
Default values are preset for the newly registered board data. Create or edit necessary data referring
from "2. Basic data setting" to "7. Creating the mark data" in this chapter.
5

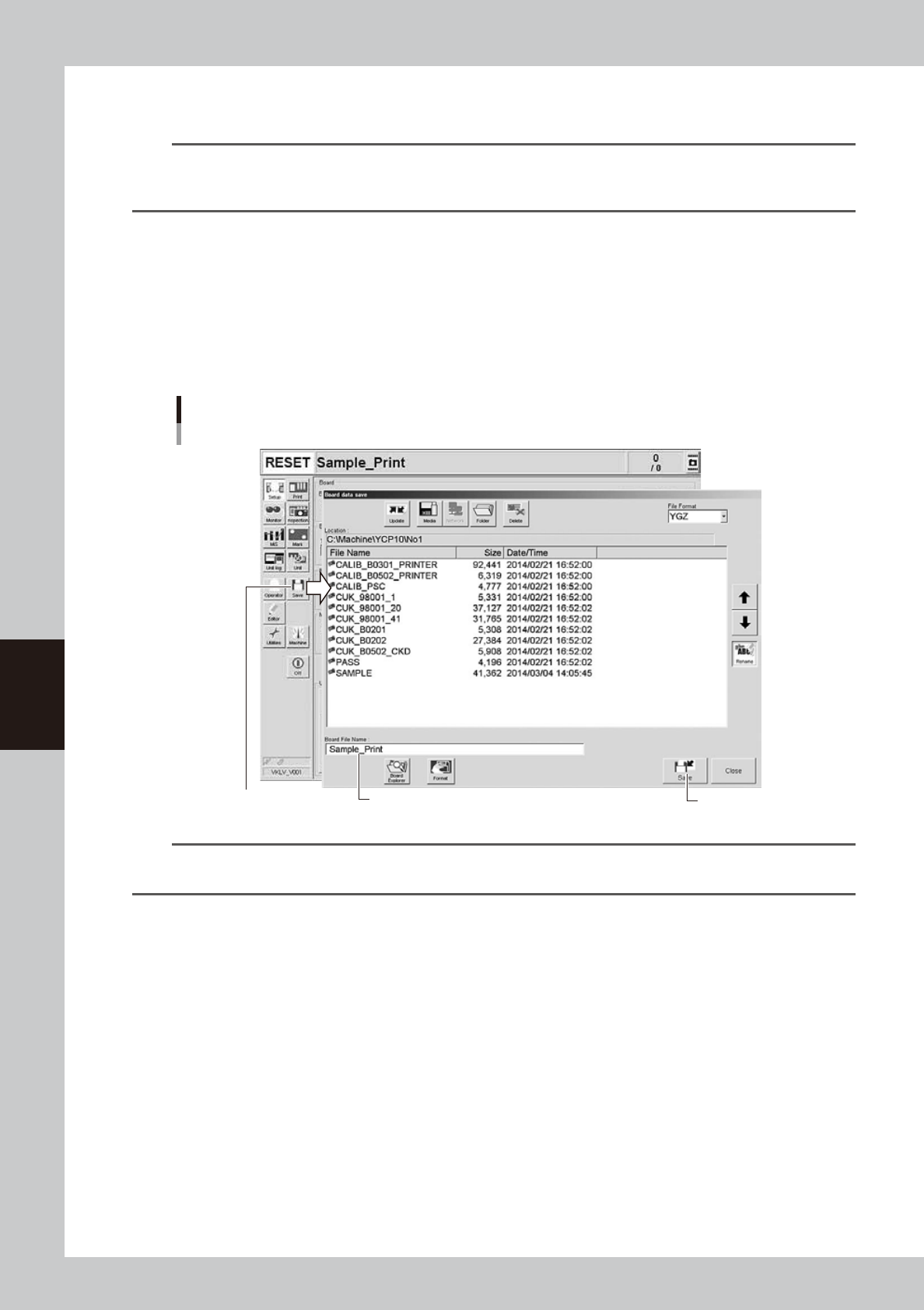

Save the new board data.
1. Press the [Save] button in the main menu button area.
The "Board data save" screen appears showing the board list.
2. Check the drive and folder to save the board data and press [Save] button.
[Save] button
Saving the PCB data
[Save] button
Check that the PCB name to be saved is displayed here.
64503-N1-10
TIP
If you press the [Off] button to quit the software before storing the board data, a confirmation screen appears to save
the board data. Pressing the [Yes] button on this screen opens the "Board data save" screen as shown above.
5-3
5
Creating and setting the data
2. Basic data setting
As you have set the parameters on the [Basics] tab screen, you can start the normal printing.
Each parameter is linked with normally used parameters provided on the [Board], [Mask], [Squeegee] and
[Cleaner] tab screens. If you want to make the detailed setting, you must select relevant tab and set data
directly.

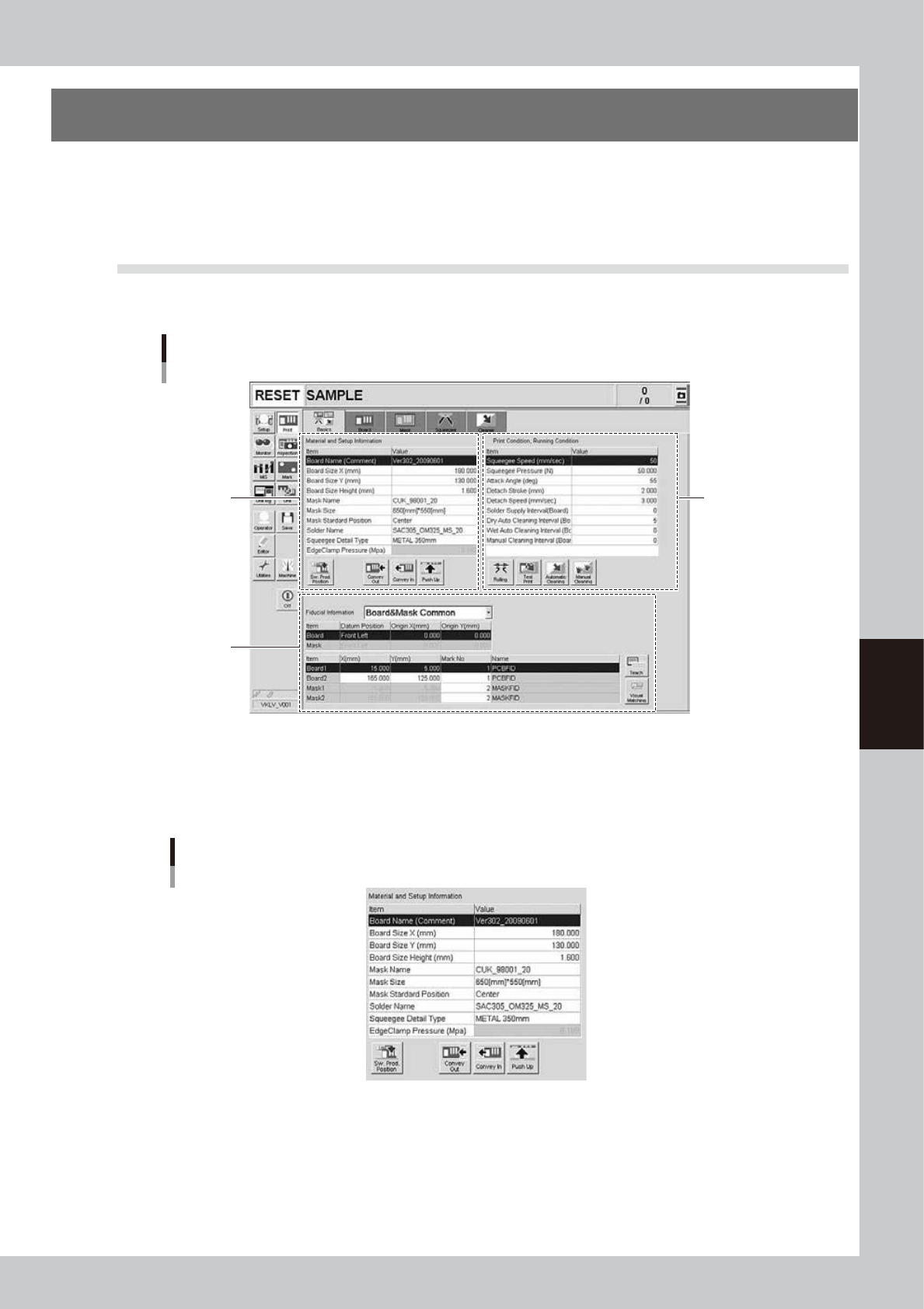

2.1 Configuration of [Basics] tab screen
The [Basics] tab screen is mainly classified into three areas. Additionally, operation buttons on this tab screen
are intended to directly perform the manual operation necessary for the setup or other work.
[Basics] tab
2
1
3
64504-N1-10
1. “Material and Setup Information” area
The parameters mainly related to the setup work are extracted from those provided on the [Board], [Mask], and
[Squeegee] tab screens.
Material and Setup Information area
64505-N1-00
• Board Name (Comment), Board Size XY, Board Size Height
For more details, see items A to D of “3. Board data setting” in a later part.
• Mask Name, Mask Size, Mask Standard Position
For more details, see items A to C of “4. Mask data setting” in a later part.
• Solder Name, Squeegee Detail Type
For more details, see item E and A of “5. Squeegee data setting” in a later part.
