3-3 3 Lubrication points 2.1.2 Y -axis Y -axis lubrication points Y -axis guide Grease nipples Y -axis guide Grease nipples Y -axis guide Grease nipples Y -axis guide Grease nipples Y -axis guide Grease nipples Y -axis g…
3-2
3
Lubrication points
2. List of lubrication points
2.1 X-, Y-, and Z-axis
2.1.1 X1-axis and X2-axis
X-axis lubrication points
X-axis guide shaft
X-axis guide
X-axis guide
X-axis guide
X-axis ball screw
Grease nipples
Grease gun:
Manual lubrication:
53302-N1-00
Lubrication point
Lubrication
location
Interval Lubrication method
1 X-axis guide 4
Monthly
Manual lubrication
2 X-axis ball screw 1 Grease gun
4 Z-axis guide shaft 1 Manual lubrication
3-3
3
Lubrication points

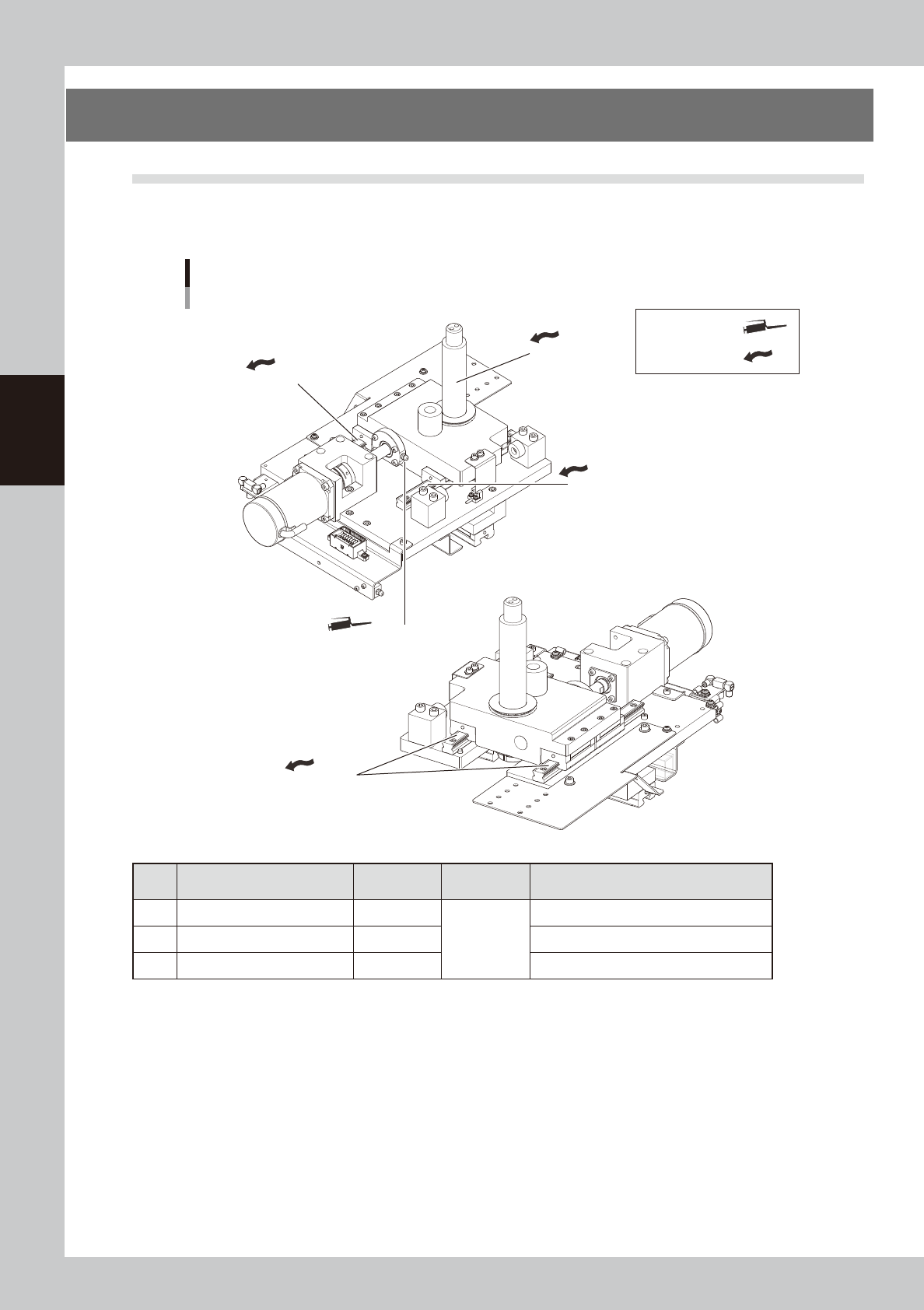

2.1.2 Y-axis
Y-axis lubrication points
Y-axis guide
Grease nipples
Y-axis guide
Grease nipples
Y-axis guide
Grease nipples
Y-axis guide
Grease nipples
Y-axis guide
Grease nipples
Y-axis guide
Grease nipples
Y-axis guide
Grease nipples
Y-axis ball screw
Grease nipples
Y-axis guide
Grease nipples
Y-axis shaft
Guide in X direction
Guide in X direction
Y-axis ball screw
Grease gun:
Manual lubrication:
53303-N1-00
Lubrication point
Lubrication
location
Interval Lubrication method
1 Y-axis guide 6
Monthly
Grease gun
2 Y-axis ball screw 1 Grease gun
3 Y-axis shaft 1 Manual lubrication
4 Guide in X direction 4 Manual lubrication
3-4
3
Lubrication points
2.1.3 Z-axis
Zaxis lubrication points
Ball screw
Ball screw
Grease gun:
Manual lubrication:
53304-N1-00
Lubrication point
Lubrication
location
Interval Lubrication method
Y-axis ball screw 4 Monthly Manual lubrication
