1-14
1
Part names and functions
l
Medium-sized matrix plate (option)
When medium-sized (L 330 × W 250 mm) boards are manufactured, the machine can be prepared for the manufacture
with one medium-sized matrix plate. The conveyor unit can be easily changed in setup for manufacture of medium-sized
boards.
c
CAUTION
If the machine has an old type of push-up plate, the medium-sized matrix plate cannot be installed. Check the center
line of the push-up plate shown in the following figure (installation of matrix plate) to see whether the plate of your
machine is of the new type.
Medium-sized matrix plate
L : 330mm
Applicable board size: 330 × 250 mm (medium size)
W : 245mm
63119-N1-00
n
How to install
Align the push-up plate center line with the matrix plate center line, and install the matrix plate fitting it to the push-up
plate side face.
Installation of matrix plate
Push-up plate side face Push-up plate center line
Matrix plate center line
■ Before installation ■ After installation
63120-N1-00
1-15
1
Part names and functions
5. Cleaning unit
5.1 Cleaning unit
When you open the machine front panel, you will see the cleaning unit installed under the printing table. The
cleaning unit uses a gauze roll to wipe away solder adhering to the mask apertures and solder coming out of
the backside of the mask while vacuuming. Cleaning can be performed in AUTO mode or MANUAL mode. In
AUTO mode, you can further select wet mode using a solvent (alcohol) or dry mode using the cleaning gauze
only.
Cleaning unit and solvent bottle
12
63114-N1-00
1. Gauze roll
Wipes away solder and flux coming out of the backside of the mask. To replace the used gauze roll see "5. Replacing the
cleaning gauze roll" in Chapter 4.
2. Solvent bottle (lower left portion of main unit)
Lets solvent soak into the cleaning gauze to liquefy remaining solder during mask cleaning.
Insert the connector on the bottle cap into the mating connector on this machine.
w
WARNING
TO REFILL THE SOLVENT BOTTLE, ALWAYS USE ISOPROPYL OR ETHYL ALCOHOL. OTHER SOLVENTS MAY CAUSE FIRES.
w
WARNING
NEVER USE ACETONE FOR CLEANING. ACETONE MAY DAMAGE SOLVENT TUBES OR THE CLEANING UNIT, CAUSING
CLEANING FLUID TO LEAK THROUGH DAMAGED PARTS. ALSO BE SURE TO USE FRESH CLEANING FLUID. DO NOT USE OLD
(USED) CLEANING FLUID.
w
WARNING
BE CAREFUL WHEN USING ISOPROPYL ALCOHOL, SINCE INHALING ALCOHOL FUMES OVER EXTENDED PERIODS CAN BE
HAZARDOUS TO HEALTH.
1-16
1
Part names and functions
5.2 Suction unit
The YCP10 has a suction blower unit built into the inside of the front panel of the machine main unit. This
suction unit sucks up solder adhering to the mask apertures and solder coming out of the backside of the mask
during automatic cleaning.

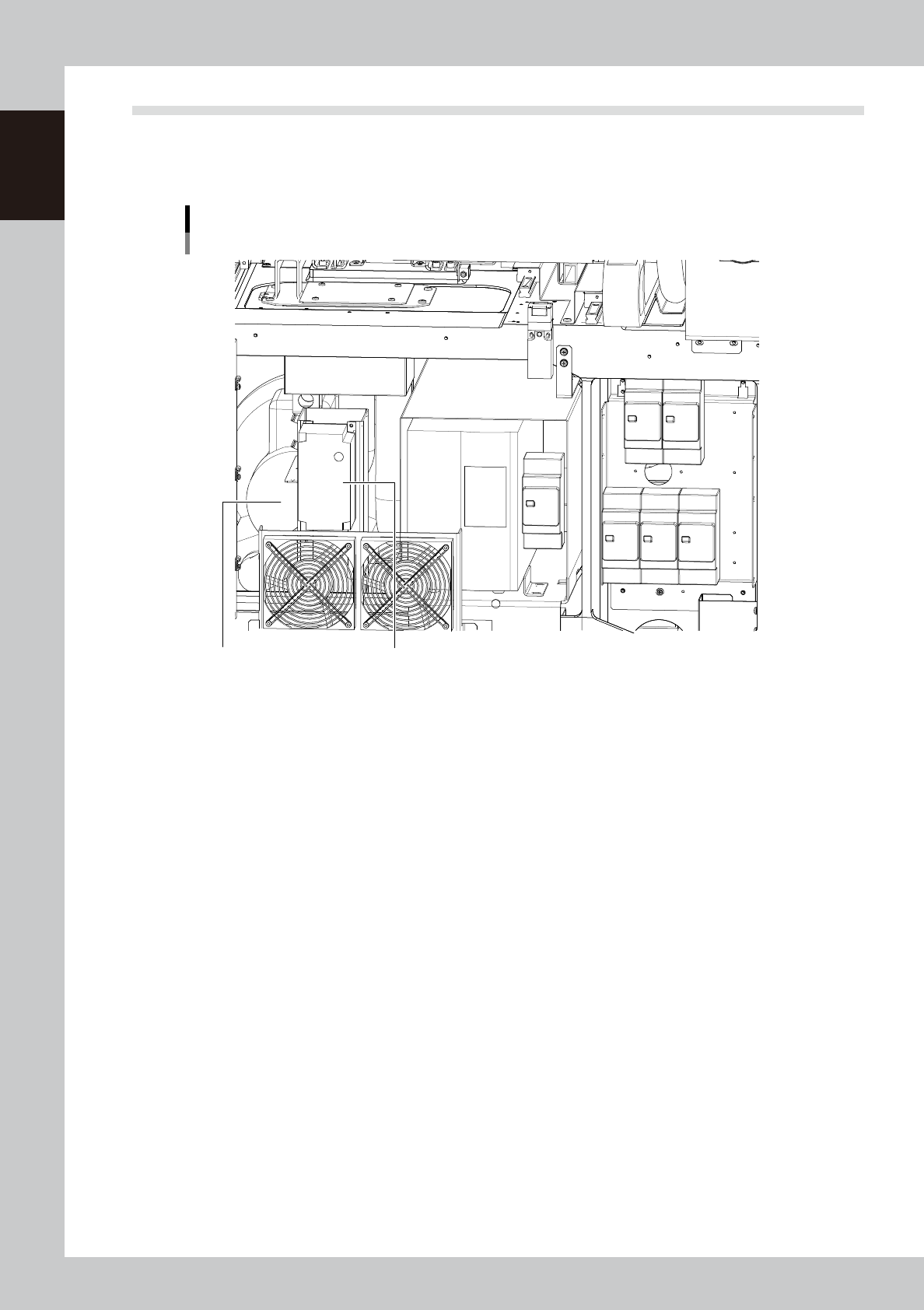

Suction unit
Suction filter unit Inverter
63115-N1-00
