4-23
4
Daily operation
9
Press the [Close] button when rolling operation is finished.
A screen for selecting auto cleaning appears after the "Rolling" screen is closed.
0
Clean the mask by following the message on the screen.
Select the cleaning method “Dry”, “Wet” or "Controlled in the Board 1 to 4 tabs" and press the [OK]
button.
When you press the [OK] button after selecting any of “Controlled in the Board 1 to 4”, cleaning will start
according to the conditions that are set on the [Controlled in the Board 1] to [Controlled in the Board 4
tabs of the “Cleaning Detail Setting” screen. However, if the “Detail Auto interval” is set to “0”, the
condition items are not displayed.
The cleaning unit starts moving to automatically clean the backside of the mask.
TIP
See "6. Cleaner data setting" in Chapter 5 for "Controlled in the Board 1 to 4 tabs".
[Automatic Cleaning] screen
64413-N1-00
TIP
If you want to perform manual cleaning, press the [Manual Cleaning] button and follow the message that appears.
q
Follow the message on the screen to unload the board.
4-24
4
Daily operation
10. Starting board production
When solder rolling is finished, start production as follows.
1
Open the Setup screen and set the operating conditions.
Set the total number of boards to be produced and the operation speed.
Setup screen
Set the operation speed (%).
Set the total number of boards to be produced.
64414-N1-10
2
Start operation.
1. Release the emergency stop button, and press the [READY] button on the operation panel.
2. Check that the surrounding area is safe and then press the [START] button on the operation panel.
3. When the entrance sensor detects the board, the conveyor belt will start rotating. The board will
then be transferred to the printing position and solder printing will start.
w
WARNING
KEEP THE UPPER DOOR (SAFETY COVER) CLOSED AND NEVER TOUCH ANY MOVING PART IN THE MACHINE WHILE THE
GREEN SIGNAL LAMP IS ON (DURING AUTOMATIC OPERATION).
Operation panel
[START] button
63425-N1-B0
TIP
When the "Cleaning Method" parameter (on the [Print]-[Cleaner] tab) is set to "Auto", the mask is automatically
cleaned every time that the specified number of boards has been produced (or at specified time intervals). To stop
production during automatic operation, press the [STOP] key on the operation panel. If you want to stop production
after printing and unloading the current board, press the [Convey-out Stop] button on the Setup screen. (See "11.
Finishing board production" in this chapter.)
4-25
4
Daily operation
3
Display the operation monitor as required.
When you want to confirm the operation status during production, press the [Monitor] button in the
main menu button area.
Different types of production information can be confirmed by selecting the [Production], [Main],
[Vision], [Squeegee Pressure] tabs, etc.
l

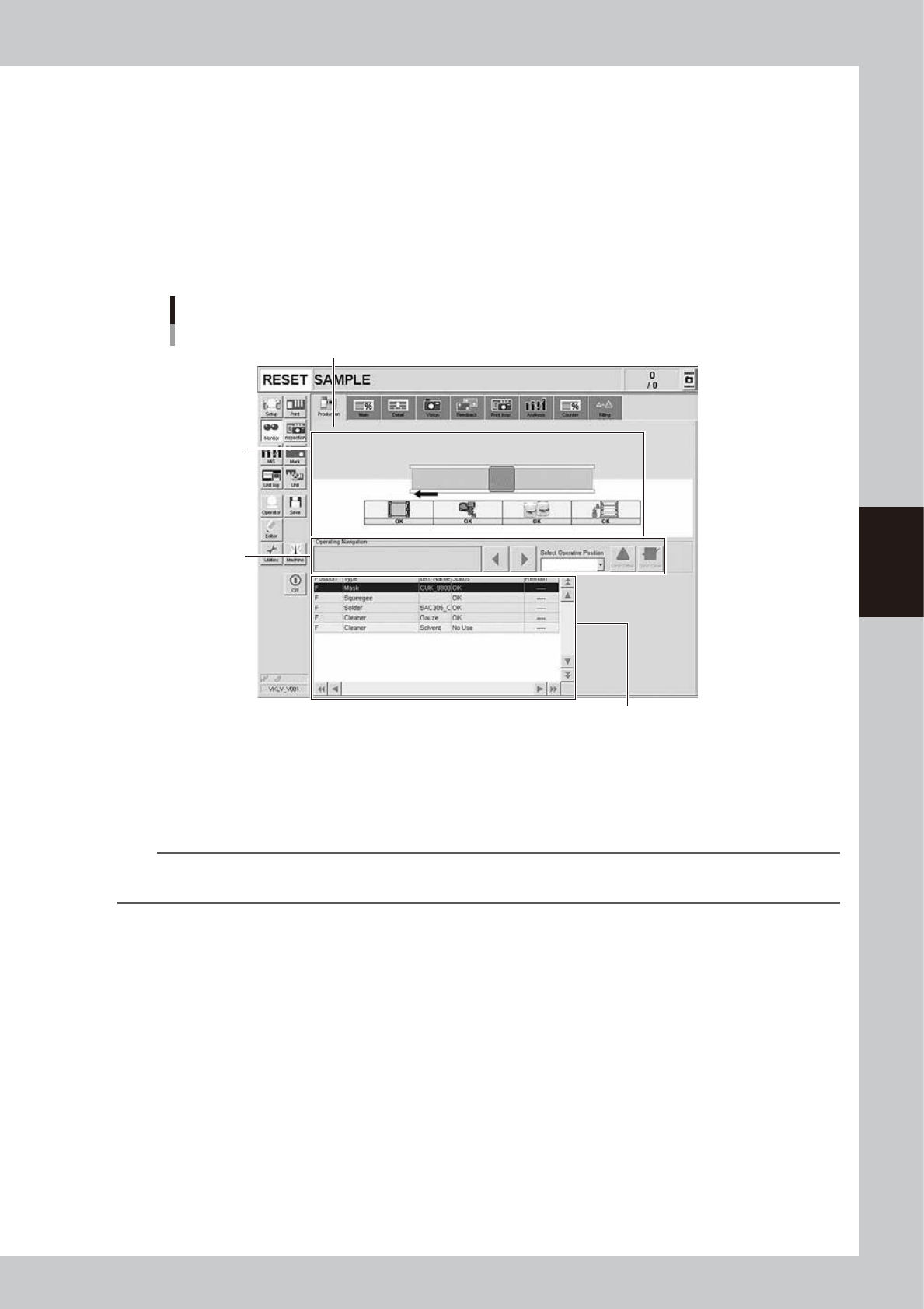

Monitor: Production
This screen shows the status of machines currently producing boards. Real-time information is displayed on the
machine layout view as shown below. When an error occurs on the machine, open this screen to check status
information such as what type of error occurred, operating instructions, and warnings, etc.
[Monitor]-[Production] tab
2
3
1
Shows the machine rear as a colored background.
64415-N1-10
1. Operating instruction area
• Select Operating Position drop-down list
When an error, operating instruction or warning occurs, select the position showing an error from this drop-down list.
Only positions requiring an operator task are displayed in the drop-down list.
TIP
You can select the operating position by clicking the error area on the layout view. However the operating position
cannot be selected if you click on an area where there are no errors, operating instructions or warnings.
• Operating Navigation instructions
This displays messages with countermeasures for handling errors, operating instructions or warnings at operating position
selected with the "Select Operating Position" drop-down list. When multiple errors occur, those items with the highest
priority for countermeasures are displayed in sequence. To switch to other instruction messages, press the left/right arrow
buttons.
[Error Detail] button
Pressing this button displays an error message screen that contains detailed information and countermeasures for the
error and operating instruction, or warning displayed in the "Operating Navigation" area.
[Error Clear] button
Press this button after recovering from the error or after handling the operating instruction or warning displayed in the
"Operating Navigation" area. Pressing this button shows that recovery is complete by following the message in the
"Operating Navigation" area, and that automatic operation can restart. However, automatic operation will not restart if a
recovery task is still incomplete (other than warnings).
