7-20
7
Other functions
4.2 [Unit]-[Conveyor] tab screen
The [Unit]-[Conveyor] tab screen allows you to manually operate each conveyor unit and check the status of
the conveyor sensors and I/O signals on the graphic view. The function of each button is described below.

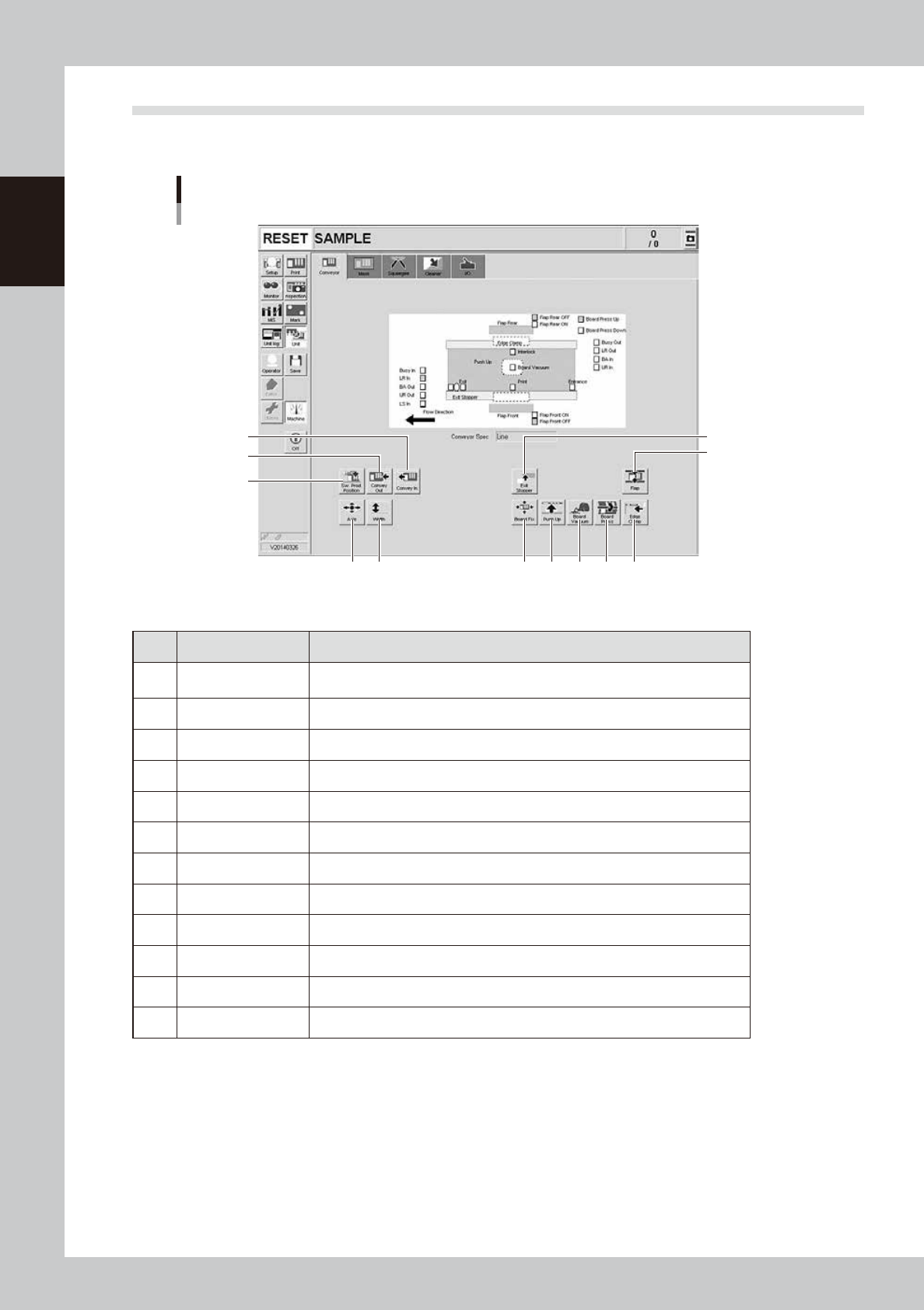

[Unit]-[Conveyor] tab screen
3
4 5
8 9 10 11
12
6
7
2
1
64719-N1-10
n
Operation buttons
Button name Function
1 SW. Prod. Position
Moves the board clamp table to the front and the squeegee head to the inner
side.
2 Convey-in Carries a board in on the board clamp table.
3 Convey-out Carries the board out from the board clamp table.
4 Axis Opens the "Move Axis" screen. (See "4.1 "Move Axis" screen" in this chapter.)
5 Width Changes the conveyor width.
6 Exit Stopper Stops a board at the conveyor exit when unloaded from the machine.
7 Flap Actuates the board flap.
8 Board Fix Actuates the effective board clamp units to clamp a board in print position.
9 Push Up Raises or lowers the push-up plate.
10 Board Vacuum Turns the vacuum board gripper on or off. (option)
11 Board Press Turns the board press unit on or off. (option)
12 Edge Clamp Turns the edge clamp on or off.
7-21
7
Other functions
4.3 [Unit]-[Mask] tab screen
The [Unit]-[Mask] tab screen allows you to manually operate the mask vacuum gripper and check the status of
the mask sensors on the graphic view. The function of each button is described below.
[Unit]-[Mask] tab screen
1 3
2
64720-N1-10
n
Operation buttons
Button name Function
1 Axis Opens the "Move Axis" screen. (See "4.1 "Move Axis" screen" in this chapter.)
2 Mask Vacuum Turns the mask vacuum gripper on or off.
3 Fiducial Correction Moves the vision camera to recognize mask fiducial marks.
7-22
7
Other functions
4.4 [Unit]-[Squeegee] tab screen
The [Unit]-[Squeegee] tab screen allows you to manually operate the squeegee head and check the status of
the squeegee sensors on the graphic view. The function of each button is described below.
[Unit]-[Squeegee] tab screen
<3S squeegee>
<Double squeegee>
3
2
1
64721-N1-10
n
Operation buttons
Button name Function
1 Move Squeegee
Moves the squeegee head to the squeegee attach/detach position (front side) or
to the escape position (rear side).
2 Axis Opens the "Move Axis" screen. (See "4.1 "Move Axis" screen" in this chapter.)
3 Squeegee Direction
Switches the squeegee printing direction.
The squeegee printing direction is from front to rear just after board data is
loaded or the [RESET] button is pressed. Then, the printing direction will be
switched alternately.
4
Squeegee 1 Down
Squeegee 2 Down
(Only for double-squeegee type)
Moves up and down the squeegee 1 or 2.
