Lubrication points
2.3.3 W-axis (Conveyor auto width adjustment)
W-axis lubrication points
W-axis guide
Grease nipples
1
Ball screw
hexagon spline
Grease gun:
Manual lubrication:
53309-N1-00
Lubrication point
Lubrication
location
Interval Lubrication method
1 W-axis guide 2
Monthly
Grease gun
2 W-axis ball screw 2 Manual lubrication
3 W-axis hexagon spline 1 Manual lubrication
3-8
3
Lubrication points
2.4 Vision camera unit
2.4.1 CX-axis

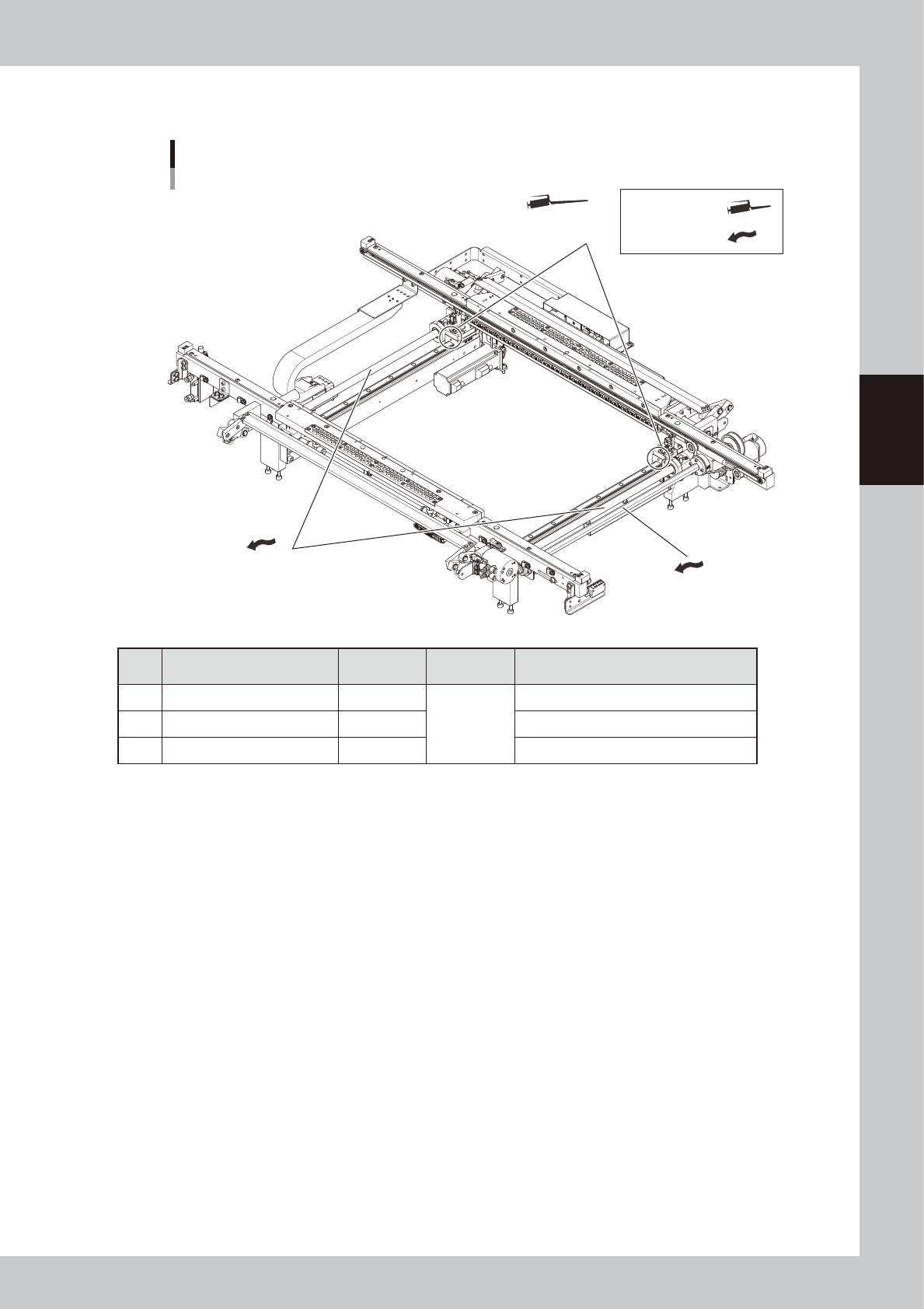

CX-axis lubrication points
CX-axis guide
Grease nipples
CX-axis ball screw
Grease nipples
CX-axis guide
Grease nipples
Grease gun:
Manual lubrication:
53310-N1-00
Lubrication point
Lubrication
location
Interval Lubrication method
1 CX-axis guide 4
Monthly
Grease gun
2 CX-axis ball screw 1 Grease gun
3-9
3
Lubrication points
2.5 Suction-blower unit
2.5.1 Blower hose guide
Lubrication points in suction blower unit
blower hose guide
Grease gun:
Manual lubrication:
53311-N1-00
Lubrication section Lubrication point Interval Procedure
Blower hose guide 1 (Each table)
When hose is
replaced
Manual lubrication
2.6 Cleaning unit
Lubrication points of cleaning unit
Grease nipple of Y-direction guide
Grease gun:
Manual lubrication:
53312-N1-00
Lubrication section Lubrication point Interval Procedure
Y-direction guide 2 Monthly Grease gun
