1-13
1
Part names and functions
Number of
rows
Applicable board size
(W)
Board support jig type/Q'ty used
Pins combined
(rows)
A B C
31 227 to 234 1 2 2 0
32 234 to 241 1 2 2 1
33 241 to 248 2 0 1 0
34 248 to 255 2 0 1 1
35 255 to 262 2 1 0 0
36 262 to 269 2 1 0 1
37 269 to 276 2 1 0 2
38 276 to 283 2 1 1 0
39 283 to 290 2 1 1 1
40 290 to 297 2 2 0 0
41 297 to 304 2 2 0 1
42 304 to 311 2 2 0 2
43 311 to 318 2 2 1 0
44 318 to 325 2 2 1 1
45 325 to 332 3 0 0 0
46 332 to 339 3 0 0 1
47 339 to 346 3 0 0 2
48 346 to 353 3 0 1 0
49 353 to 360 3 0 1 1
50 360 to 367 3 1 0 0
51 367 to 374 3 1 0 1
52 374 to 381 3 1 0 2
53 381 to 388 3 1 1 0
54 388 to 395 3 1 1 1
55 395 to 402 3 2 0 0
56 402 to 409 3 2 0 1
57 409 to 416 3 2 0 2
58 416 to 423 3 2 1 0
59 423 to 430 3 2 1 1
60 430 to 437 3 2 1 2
61 437 to 444 3 2 2 0
62 444 to 451 3 2 2 1
63 451 to 458 3 2 2 2
64 458 to 460 3 2 2 3
c
CAUTION
The board support jig is secured by press-fitting it into the holes in the matrix plate. Mount the board support jig after
checking that no solder or foreign matter exists on the matrix plate.
Additionally, if the board support jig is placed so that it protrudes from the matrix plate, this may cause damage to the
machine.
c
CAUTION
The board support jigs explained in this section are specially designed for the YSP,YSP20 and YCP10. If these board
support jigs are used for other machine, this may cause serious damage to the machine.
Therefore, never use these board jigs for a machine other than the YSP,YSP20 and YCP10. These jigs are set on the
matrix plate to support the board. Use the right combination of these support jigs to match the width of the board.
c
CAUTION
Board support jigs B and C are not available for "medium-sized matrix plate (option)" in the next procedure.
1-14
1
Part names and functions
l

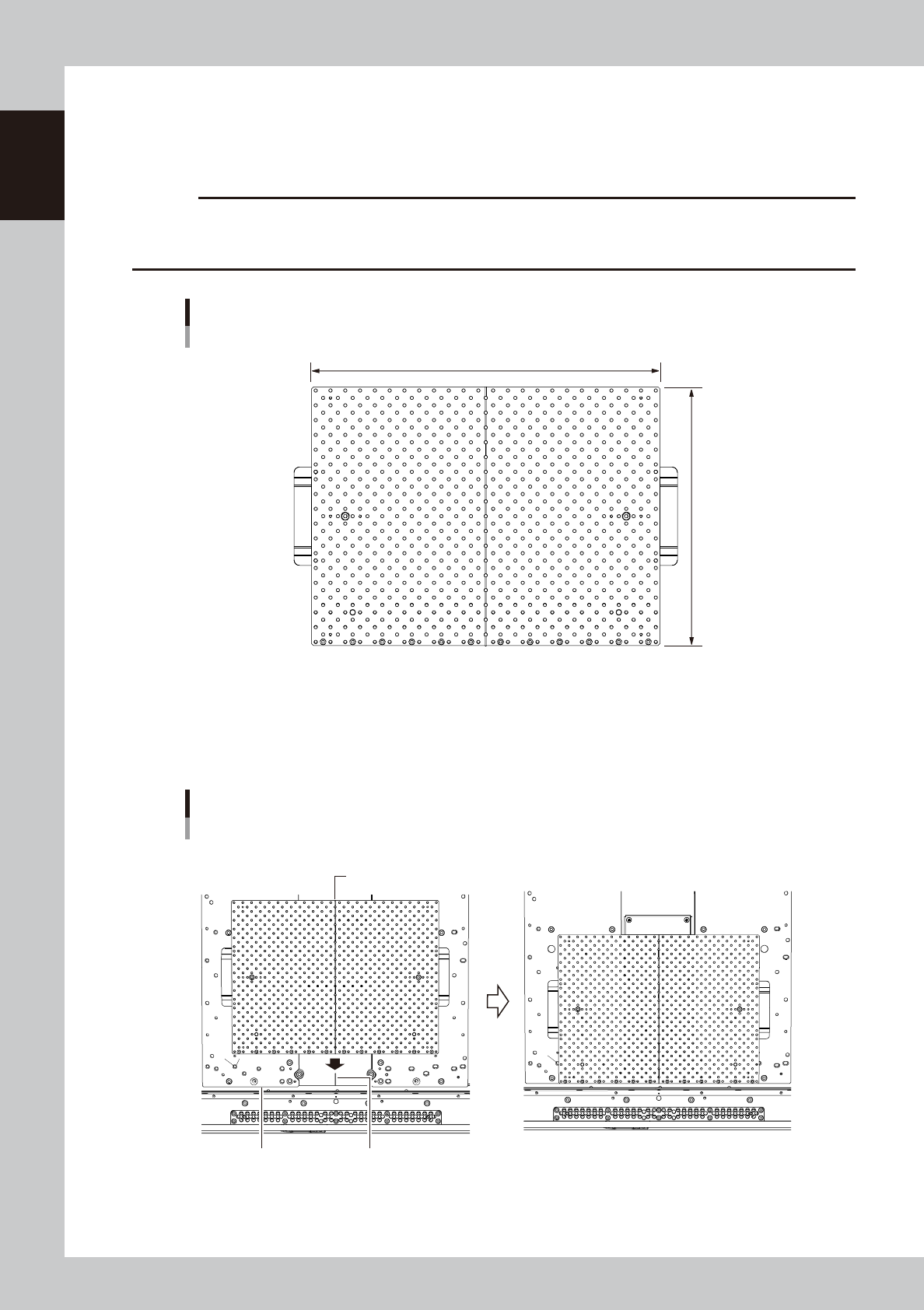

Medium-sized matrix plate (option)
When medium-sized (L 330 × W 250 mm) boards are manufactured, the machine can be prepared for the manufacture
with one medium-sized matrix plate. The conveyor unit can be easily changed in setup for manufacture of medium-sized
boards.
c
CAUTION
If the machine has an old type of push-up plate, the medium-sized matrix plate cannot be installed. Check the center
line of the push-up plate shown in the following figure (installation of matrix plate) to see whether the plate of your
machine is of the new type.
Medium-sized matrix plate
L : 330mm
Applicable board size: 330 × 250 mm (medium size)
W : 245mm
63119-N1-00
n
How to install
Align the push-up plate center line with the matrix plate center line, and install the matrix plate fitting it to the push-up
plate side face.
Installation of matrix plate
Push-up plate side face Push-up plate center line
Matrix plate center line
■ Before installation ■ After installation
63120-N1-00
1-15
1
Part names and functions

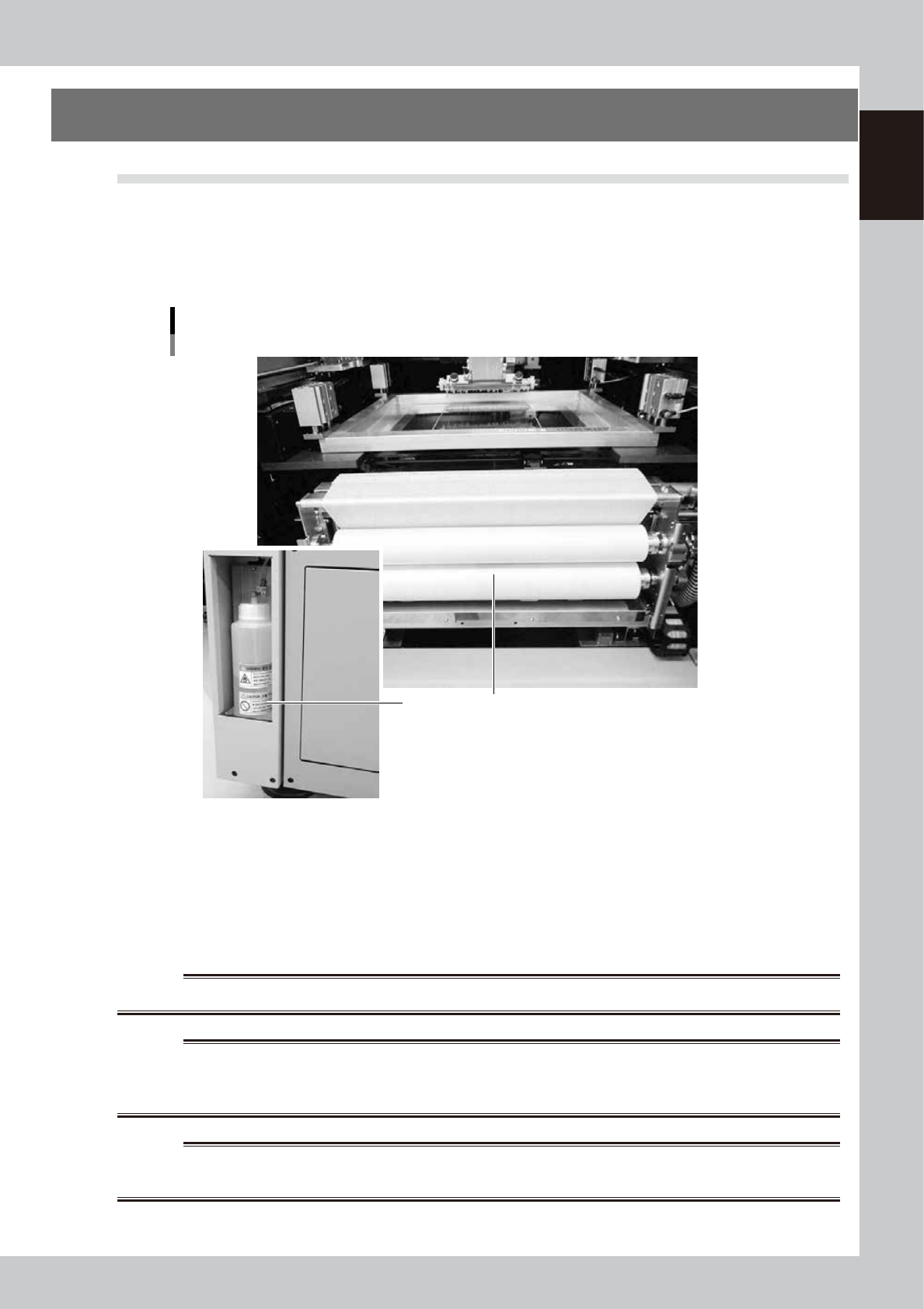

5. Cleaning unit
5.1 Cleaning unit
When you open the machine front panel, you will see the cleaning unit installed under the printing table. The
cleaning unit uses a gauze roll to wipe away solder adhering to the mask apertures and solder coming out of
the backside of the mask while vacuuming. Cleaning can be performed in AUTO mode or MANUAL mode. In
AUTO mode, you can further select wet mode using a solvent (alcohol) or dry mode using the cleaning gauze
only.
Cleaning unit and solvent bottle
12
63114-N1-00
1. Gauze roll
Wipes away solder and flux coming out of the backside of the mask. To replace the used gauze roll see "5. Replacing the
cleaning gauze roll" in Chapter 4.
2. Solvent bottle (lower left portion of main unit)
Lets solvent soak into the cleaning gauze to liquefy remaining solder during mask cleaning.
Insert the connector on the bottle cap into the mating connector on this machine.
w
WARNING
TO REFILL THE SOLVENT BOTTLE, ALWAYS USE ISOPROPYL OR ETHYL ALCOHOL. OTHER SOLVENTS MAY CAUSE FIRES.
w
WARNING
NEVER USE ACETONE FOR CLEANING. ACETONE MAY DAMAGE SOLVENT TUBES OR THE CLEANING UNIT, CAUSING
CLEANING FLUID TO LEAK THROUGH DAMAGED PARTS. ALSO BE SURE TO USE FRESH CLEANING FLUID. DO NOT USE OLD
(USED) CLEANING FLUID.
w
WARNING
BE CAREFUL WHEN USING ISOPROPYL ALCOHOL, SINCE INHALING ALCOHOL FUMES OVER EXTENDED PERIODS CAN BE
HAZARDOUS TO HEALTH.
