4-24

Daily operation

10. Starting board production

When solder rolling is finished, start production as follows.

Open the Setup screen and set the operating conditions.

Set the total number of boards to be produced and the operation speed.

Setup screen

Set the operation speed (%).

Set the total number of boards to be produced.

64414-N1-10

Start operation.

1. Release the emergency stop button, and press the [READY] button on the operation panel.

2. Check that the surrounding area is safe and then press the [START] button on the operation panel.

3. When the entrance sensor detects the board, the conveyor belt will start rotating. The board will

then be transferred to the printing position and solder printing will start.

WARNING

KEEP THE UPPER DOOR (SAFETY COVER) CLOSED AND NEVER TOUCH ANY MOVING PART IN THE MACHINE WHILE THE

GREEN SIGNAL LAMP IS ON (DURING AUTOMATIC OPERATION).

Operation panel

[START] button

63425-N1-B0

TIP

When the "Cleaning Method" parameter (on the [Print]-[Cleaner] tab) is set to "Auto", the mask is automatically

cleaned every time that the speciﬁed number of boards has been produced (or at speciﬁed time intervals). To stop

production during automatic operation, press the [STOP] key on the operation panel. If you want to stop production

after printing and unloading the current board, press the [Convey-out Stop] button on the Setup screen. (See "11.

Finishing board production" in this chapter.)

4-25

Daily operation

Display the operation monitor as required.

When you want to confirm the operation status during production, press the [Monitor] button in the

main menu button area.

Different types of production information can be confirmed by selecting the [Production], [Main],

[Vision], [Squeegee Pressure] tabs, etc.

Monitor: Production

This screen shows the status of machines currently producing boards. Real-time information is displayed on the

machine layout view as shown below. When an error occurs on the machine, open this screen to check status

information such as what type of error occurred, operating instructions, and warnings, etc.

[Monitor]-[Production] tab

Shows the machine rear as a colored background.

64415-N1-10

1. Operating instruction area

• Select Operating Position drop-down list

When an error, operating instruction or warning occurs, select the position showing an error from this drop-down list.

Only positions requiring an operator task are displayed in the drop-down list.

TIP

You can select the operating position by clicking the error area on the layout view. However the operating position

cannot be selected if you click on an area where there are no errors, operating instructions or warnings.

• Operating Navigation instructions

This displays messages with countermeasures for handling errors, operating instructions or warnings at operating position

selected with the "Select Operating Position" drop-down list. When multiple errors occur, those items with the highest

priority for countermeasures are displayed in sequence. To switch to other instruction messages, press the left/right arrow

buttons.

[Error Detail] button

Pressing this button displays an error message screen that contains detailed information and countermeasures for the

error and operating instruction, or warning displayed in the "Operating Navigation" area.

[Error Clear] button

Press this button after recovering from the error or after handling the operating instruction or warning displayed in the

"Operating Navigation" area. Pressing this button shows that recovery is complete by following the message in the

"Operating Navigation" area, and that automatic operation can restart. However, automatic operation will not restart if a

recovery task is still incomplete (other than warnings).

4-26

Daily operation

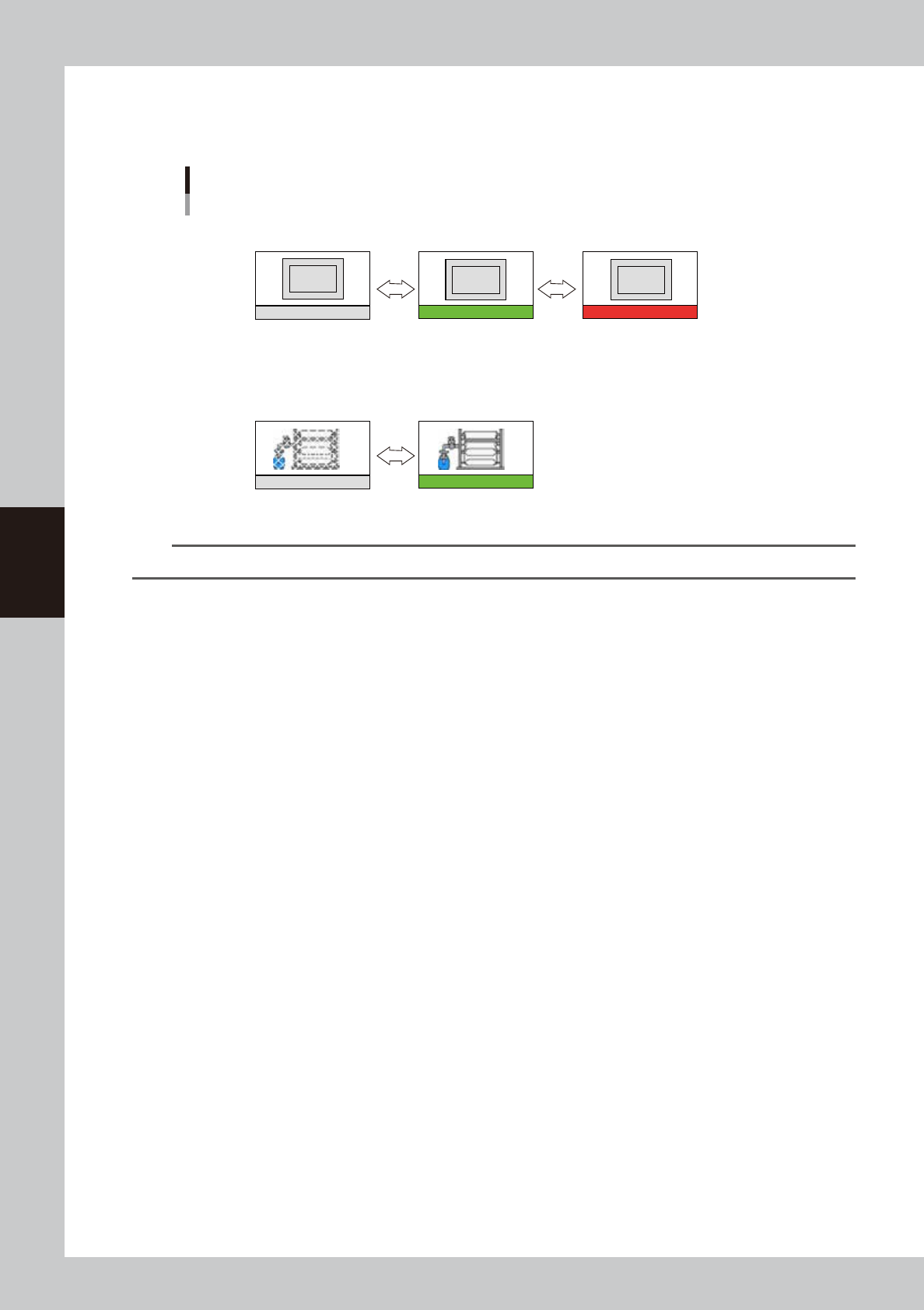

2. Setup status area

Displays the current setup status of the mask and cleaner unit. The color of status bar changes if an error

occurs.

[Monitor]-[Production] tab

Setup status area

Mask

Cleaner

No mask is clamped

(Mask is not used)

Mask is clamped (green) Mask is not clamped (red)

(Mask is used)

Cleaner is used (green)Cleaner is not used

OK NG

No Use

63426-N1-00

TIP

If an error has occurred on the entire machine then the entire area background is displayed in blue.

3. Detailed information area

This shows a list of all items displayed in the setup status area.
