3-2
3
Printing guide
2. Data and condition setting

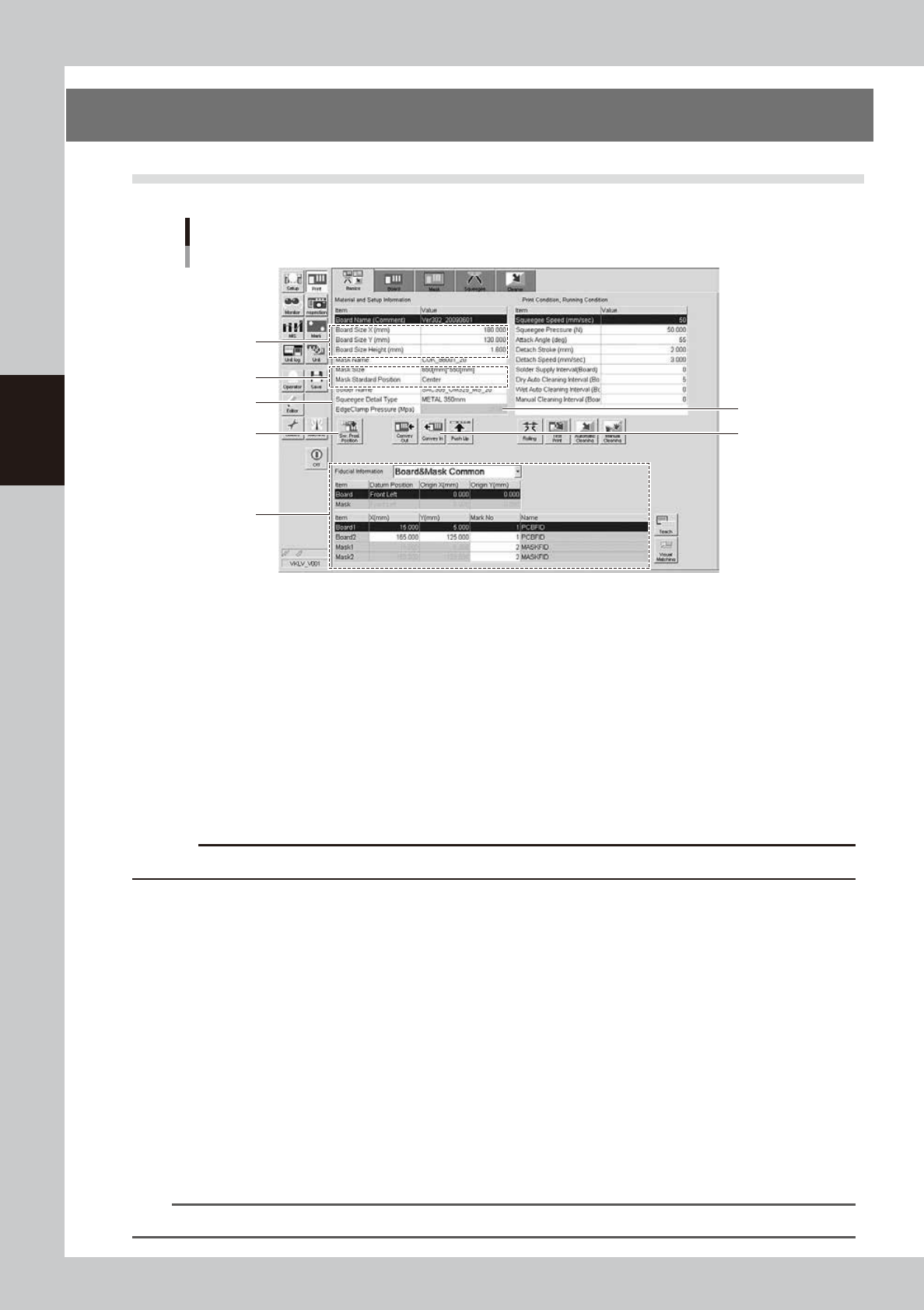

2.1 Material and setup information
Material and setup information
Step 1
Step 2
Step 3
Step 4
Step 9
Step 6
Step 5
64300-N1-00
1
Enter board size data.
Enter accurate size data (X, Y, height) of the board to be printed.
X : Sets the board clamp position.
Y : Sets the conveyor width.
Height : Sets the backup height.
2
Enter mask information.
1. Select a size of the mask to be used.
2. Select a mask standard position (standard position during the mask processing) (center or front
position).
c
CAUTION
In the YCP10, you cannot use the rear position. Always select either the center or front position.
3
Select a squeegee type.
Select a type and size of the squeegee to be used. Each squeegee type has the features described
below.
Urethane squeegee: If the squeegee pressure level is too high, the squeegee is deformed, causing the
solder to be scraped away too much.
Metal squeegee : This metal squeegee is not deformed by the squeegee pressure and is less affected
by the squeegee pressure.
4
Set the backup jigs.
1. Press the [SW. Prod. Position] button and select the setup item.
2. When rearranging the backup pins, select “Transfer Check Position”. The conveyor will move to the
setup position and the conveyor width will be automatically adjusted to match the board size.
3. When changing the whole matrix plate, select “Backup Setup”. The conveyor will move to the setup
position and the conveyor will be adjusted to the maximum width, allowing you to remove the matrix
plate.
n
NOTE
When removing the matrix plate, check for safety and then lift it straight up while holding firmly with both hands.
3-3
3
Printing guide
“Move table to setup position” screen
64310-N1-00
e
4. Press the emergency stop button, open the upper door, and set the backup jig on the matrix plate.
5
Cancel emergency stop.
Close the upper door, release the emergency stop button and press the [READY] button on the
operation panel.
6
Check the board clamp status.
1. Press the [Convey In] button. Follow the instructions that appear on the operation screen to load a
board.
e
2. When the board is clamped, check the following points.
•
Check the board for warpage or floating.
•
Push downward on the board to check that no part of the board is depressed.
7
Change the edge clamp pressure level.
If the board clamp failure occurs in Step 6, operate the regulator to change the edge clamp pressure.
Conversely, if the edge clamp pressure level is too weak, this may cause the board to rattle.
8
Set the mask.
With the mask kept in contact with the set position, turn ON the CLAMP switch to clamp the mask.
For more details about the set position, see "7. Compatible masks" in Chapter 4 of this manual or the
labels affixed to the machine.
9
Set fiducial mark information.
1. Select either the [Board & Mask Common] or [Board & Mask Individual] designation for the datum
position, position coordinates, and mark type of each fiducial mark.
2. Select the board and mask datum positions, and enter origin offset amounts from the datum
positions.
3. Enter mark Nos. used to recognize the correct fiducial mark positions on the board and mask.
4. Press the [Mark] button to create mark information.
n
NOTE
When the mark information has already been created, press the [Teach] button to check that the fiducial mark
positions are correct.
To check the fiducial mark positions, select [Board 1] or [Board 2] for the board fiducial mark or [Mask 1] or [Mask 2] for
the mask fiducial mark, and then press the [Teach] button.
3-4
3
Printing guide
2.2 Alignment offset setting
Alignment offsets
[Visual Matching] button
64301-N1-00
Press the [Visual Matching] button to open the Alignment Offset screen. Determine each offset value
while carefully checking the screen.
Since the graphic alignment is used for this alignment offset setting, set values in the [Mask Offset
X(mm)], [Mask Offset Y(mm)], and [Mask Offset R(DEG)] fields you can check on the screen.
n
NOTE
For more details about how to correctly use the graphic alignment, see Chapter 5, "8. Graphic alignment", in this
manual.
