3-4 3 Lubrication points 2.1.3 Z-axis Zaxis lubrication points Ball screw Ball screw Grease gun: Manual lubrication: 53304-N1-00 Lubrication point Lubrication location Interval Lubrication method Y -axis ball screw 4 Mon…
3-3
3
Lubrication points
2.1.2 Y-axis
Y-axis lubrication points
Y-axis guide
Grease nipples
Y-axis guide
Grease nipples
Y-axis guide
Grease nipples
Y-axis guide
Grease nipples
Y-axis guide
Grease nipples
Y-axis guide
Grease nipples
Y-axis guide
Grease nipples
Y-axis ball screw
Grease nipples
Y-axis guide
Grease nipples
Y-axis shaft
Guide in X direction
Guide in X direction
Y-axis ball screw
Grease gun:
Manual lubrication:
53303-N1-00
Lubrication point
Lubrication
location
Interval Lubrication method
1 Y-axis guide 6
Monthly
Grease gun
2 Y-axis ball screw 1 Grease gun
3 Y-axis shaft 1 Manual lubrication
4 Guide in X direction 4 Manual lubrication
3-4
3
Lubrication points
2.1.3 Z-axis
Zaxis lubrication points
Ball screw
Ball screw
Grease gun:
Manual lubrication:
53304-N1-00
Lubrication point
Lubrication
location
Interval Lubrication method
Y-axis ball screw 4 Monthly Manual lubrication
3-5
3
Lubrication points
2.2 Printing head
2.2.1 SY-axis
SY-axis lubrication points
SY-axis guide
Grease nipples
SY-axis guide
Grease nipples
Grease gun:
Manual lubrication:
SY-axis ball screw
Grease nipples
53305-N1-00
Lubrication point
Lubrication
location
Interval Lubrication method
1 SY-axis guide 4
Monthly
Grease gun
2 SY-axis ball screw 1 Grease gun

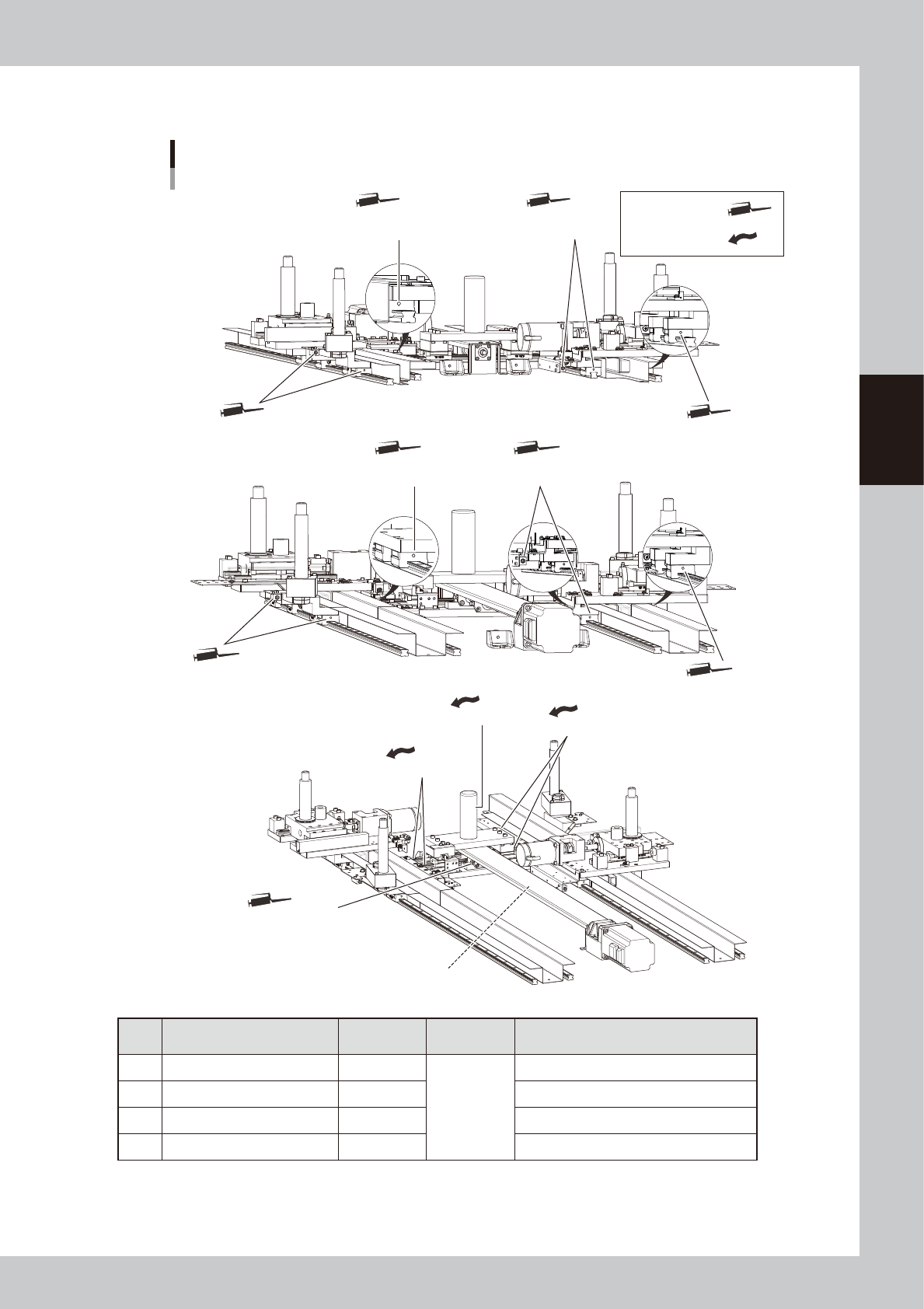

2.2.2 SZ-axis
SZ-axis lubrication points
Guide shaft
Guide shaft
SZ-axis guide
Grease nipples
SZ-axis guide
Grease nipples
Spring
SZ-axis ball screw
Grease nipples
Grease gun:
Manual lubrication:
53306-N1-00
Lubrication point
Lubrication
location
Interval Lubrication method
1 SZ-axis guide 2
Monthly
Grease gun
2 SZ-axis ball screw 1 Grease gun
3 Guide shaft, spring 4 Manual lubrication
