(A03_08) Fiducial Marks (1) Shape and Size T able 3B16 Mark T ype D1 (Unit: mm) D2 (Unit: mm) Remarks 0.5 to 3.0 ( ±10% ) 0 to 2.8 ( ±10% ) • Mark Reference: Center (D1 - 0.2 D2) • D2 : Diameter of Punched Hole 0.5 to 3.…
(A03_07) Recog Algo
Select "Pattern match" or "Edge detection" as a P.C.B. recognition
algorithm.
In normal cases, select "Pattern".
Pattern : Select this when there is enough difference in contrast
between a fiducial mark and a P.C.B. (Recognition by
Pattern Matching Method).

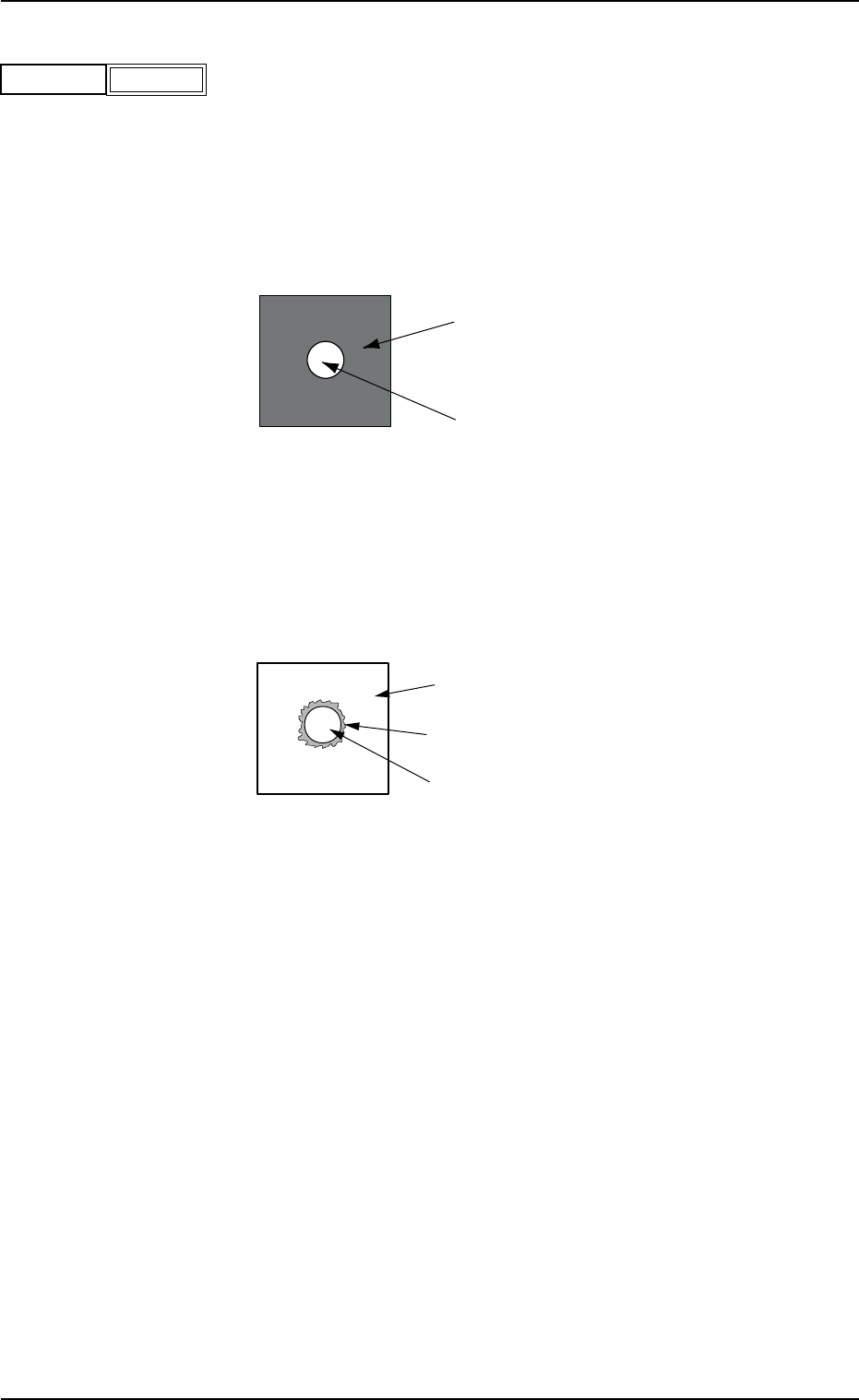

Fig. 3B67
Edge : Select this when there is not much difference in contrast
between a fiducial mark and a P.C.B. and the shadow of
the fiducial mark is cast around the mark. (Correction by
Mark Edge Detection Method).
Fig. 3B68
Fiducial Mark (Bright)
P.C.B.
Fiducial Mark (Bright)
P.C.B. (Bright)
Shadow of Fiducial Mark
2.3 Operation Data
0305-001 2-35 AIL01EDTP
Pattern
Recog Algo
Fig. 3B66
(A03_08) Fiducial Marks
(1) Shape and Size

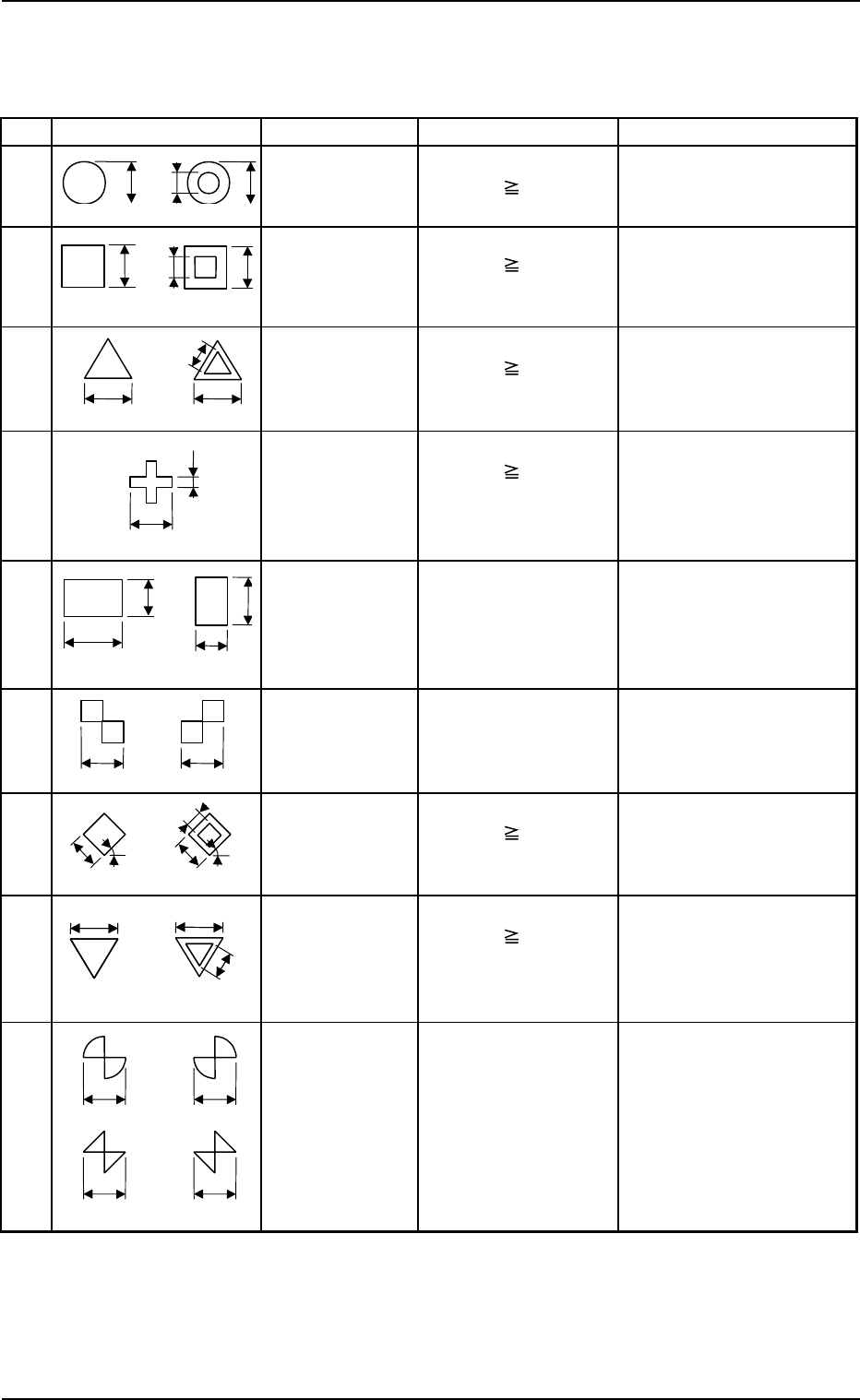

Table 3B16
Mark Type D1 (Unit: mm) D2 (Unit: mm) Remarks
0.5 to 3.0 (±10%) 0 to 2.8 (±10%) • Mark Reference: Center
(D1 - 0.2
D2) • D2: Diameter of Punched
Hole
0.5 to 3.0 (±10%) 0 to 2.8 (±10%) • Mark Reference:
(D1 - 0.2
D2) Center of Gravity
• D2: Diameter of Punched
Hole
0.5 to 3.0 (±10%) 0 to 2.8 (±10%) • Mark Reference:
(D1 - 0.2
D2) Center of Gravity
• D2: Diameter of Punched
Hole
0.5 to 3.0 (±10%) 0.2 to 1.5 (±10%) • Mark Reference:
(D1 - 0.2
D2) Center of Gravity
0.5 to 3.0 (±10%) 0.5 to 3.0 (±10%) • Mark Reference:
Center of Gravity
0.5 to 3.0 (±10%) - • Mark Reference:
Contact of Two Squares
0.5 to 3.0 (±10%) 0 to 2.8 (±10%) • Mark Reference:
(D1 - 0.2
D2) Center of Gravity
• D2: Diameter of Punched
Hole
0.5 to 3.0 (±10%) 0 to 2.8 (±10%) • Mark Reference:
(D1 - 0.2
D2) Center of Gravity
• D2: Diameter of Punched
Hole
0.5 to 3.0 (±10%)
- • Mark Reference:
Contact of Two Fan
Shapes or Triangles
D1
D1
D2
D1
D1
(Front Side of Machine)
D2
D1
(Front Side of Machine)
D2
D1
D2
(Front Side of Machine)
D1
D2
D1
D1
(Front Side of Machine)
D1
45°
D1
D2
45°
(Front Side of Machine)
D2
D1
D1
(Front Side of Machine)
D1
D1
D1
D1
or
(
Front Side of Machine
)
or
D1
D1
D2
(Front Side of Machine)
2.3 Operation Data
0305-001 2-36 AIL01EDTP
RoundSquare
Cross
Rectangle
Checker
(Square)
Diamond
(Rotated Square)
Bow Tie
Equilateral
Triangle
(Down)
Equilateral
Triangle (Up)

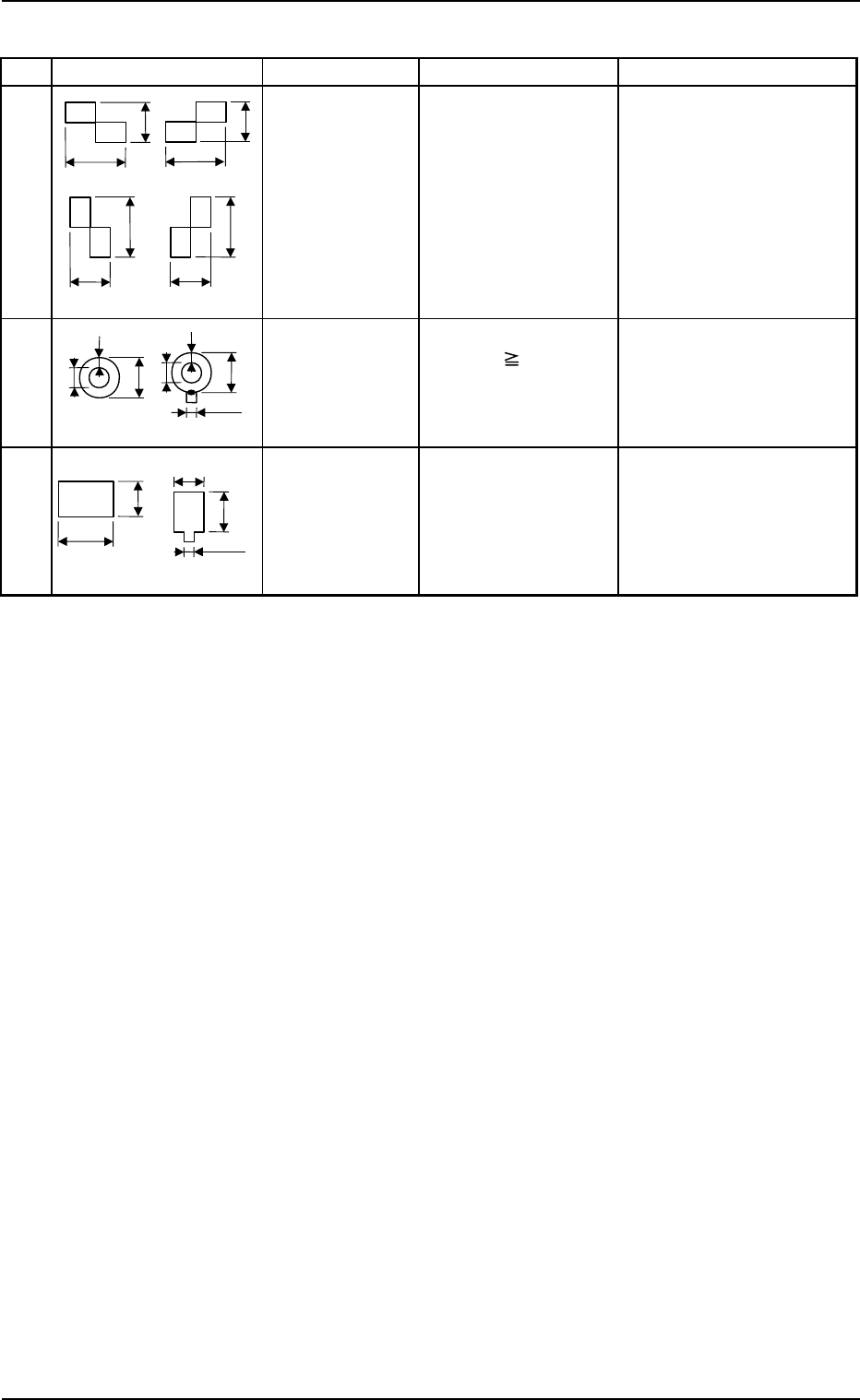

Table 3B17
Mark Type D1 (Unit: mm) D2 (Unit: mm) Remarks
0.5 to 3.0 (±10%) 0.5 to 3.0 (±10%) • Mark Reference:
Contact of Two Rect-
angles
1.0 to 2.0 (±10%) 0.5 to 1.5 (±10%) • Mark Reference: Center
(D1 - 0.2
D2) • D2: Diameter of Punched
Hole
• W : Min. 0.25 mm
0.5 to 2.0 (±10%) 0.5 to 2.0 (±10%) • Mark Reference:
Center of Gravity
(2) Material for Marks
Copper Leaf (Au and Ni plating possible but mirror surface cannot be used.)
Solder Plating (Consult our marketing department or sales agency
for details.)
Solder Leveler (Consult our marketing department or sales agency
for details.)
(3) Material for P.C.B.
Glass Epoxy (Consult our marketing department for hypochromic one.)
Ceramic (Consult our marketing department for details.)
(Front Side of Machine)
(Note a)
D1
D2
D2
W
W
D1
(Front Side of Machine)
D2
D2
D1
D1
(Note a)
2.3 Operation Data
0305-001 2-37 AIL01EDTP
Checker (Rectangle)
Thru Hole
(Round)
Pad Mark
(Rectangle)
D1
D1
D1
D1
D2
D2
D2
D2
or
or
(Front Side of Machine)
