*4 "Standard Setup" Icon When pressed, this changes the colors of the tower lights to the standard ones. 3.4 "Configuration Setup" T ab 0305-001 5-64 AIL01EDTP
3.4 "Configuration Setup" Tab
3.4.1 "Light Tower Setup" Tab
• Sheet Layout
When the "Light Tower Setup" tab is pressed in the "Configuration Setup"
tab sheet, the following tab sheet appears.

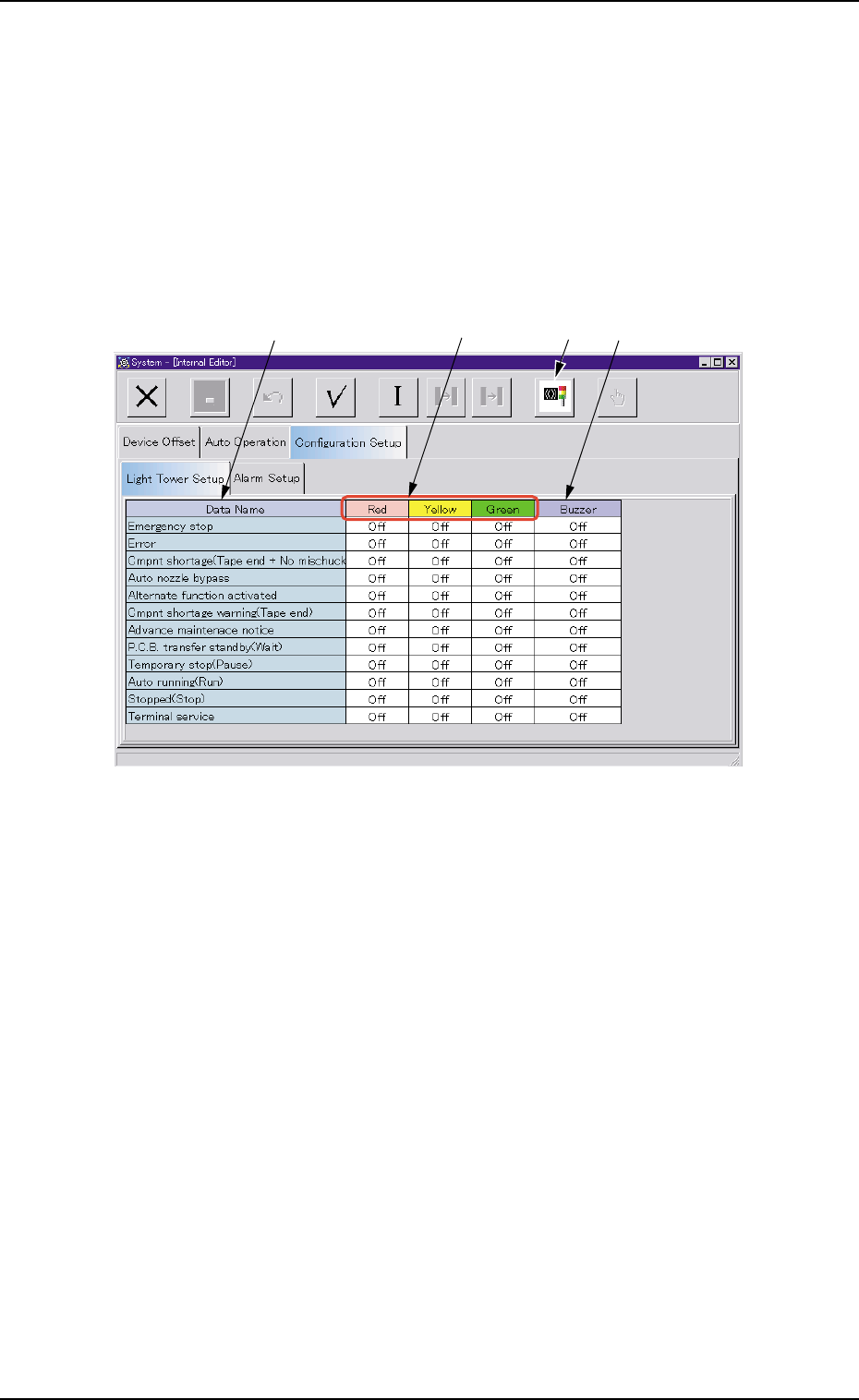

Fig. 3E54 "Light Tower Setup" Tab Sheet
• Sheet Composition
*1 Data Name
Displayed are the items for which the colors (red, yellow, and green)
of the tower lights and the types of alarm sounds should be speci-
fied.
*2 Red, Yellow, Green
Set "On", "Off", or "On & Off" in each text box to specify the colors
(red, yellow, and green) of the tower lights.
*3 Buzzer
Set "Off", "Intmt Snd", "Cont Snd", or "Opti Snd" in each text box to
specify the types of alarm sounds.
The desired sound patterns can be made, using the "Alarm Setup"
tab sheet.
0305-001 5-63
AIL01EDTP
*1
*3
*2
*4
3.4 "Configuration Setup" Tab
*4 "Standard Setup" Icon
When pressed, this changes the colors of the tower lights to the
standard ones.
3.4 "Configuration Setup" Tab
0305-001 5-64 AIL01EDTP
3.4.2 "Alarm Setup" Tab
• Sheet Layout
When the "Alarm Setup" tab is pressed in the "Configuration Setup" tab
sheet, the following tab sheet appears.

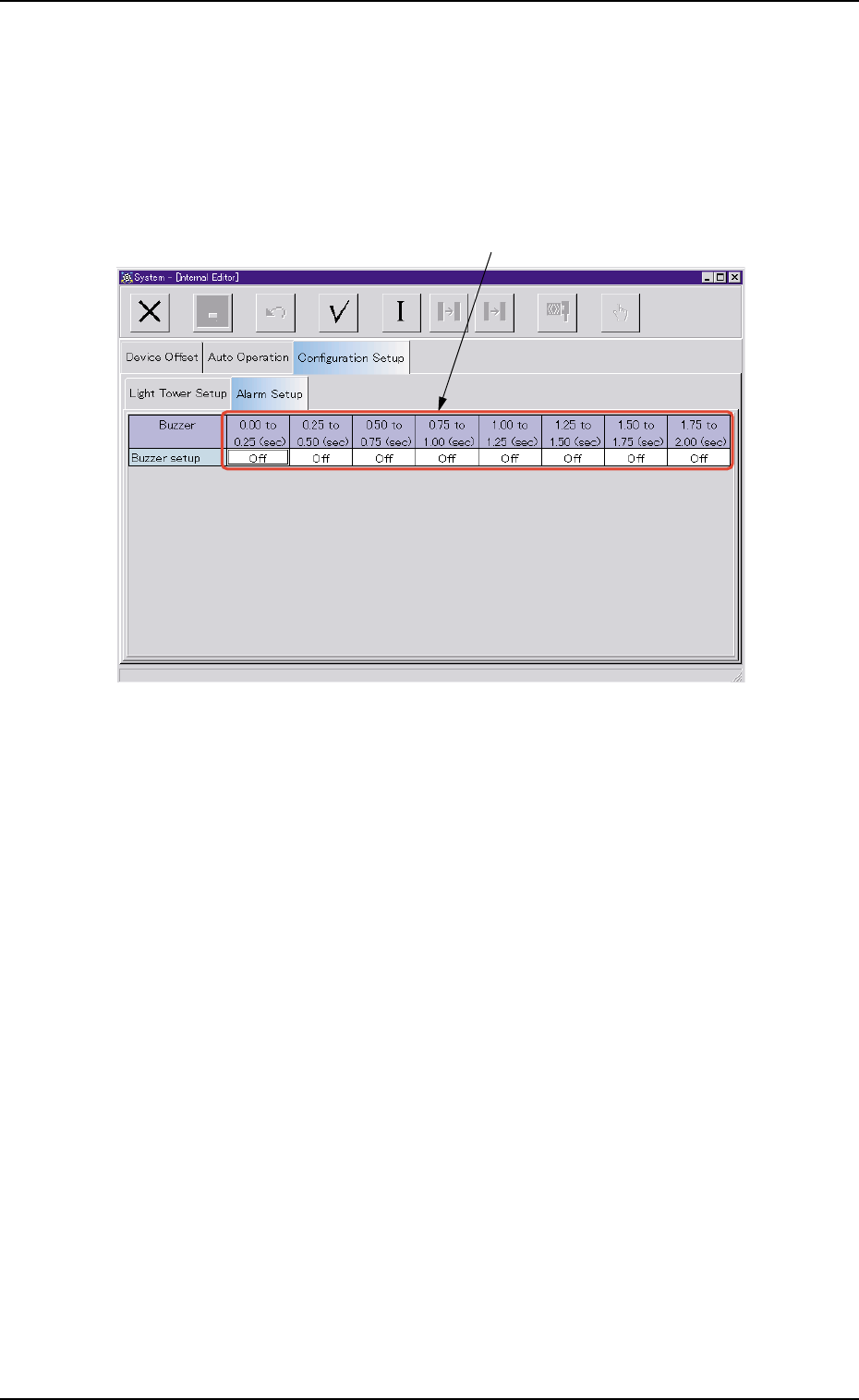

Fig. 3E55 "Alarm Setup" Tab Sheet
• Sheet Composition
*1 Time Items
An optional alarm sounds in a cycle of two seconds. The two sec-
onds is divided into 10 intervals and each interval is assigned as
"ON" or "OFF" to make a sound of your own.
0305-001 5-65
AIL01EDTP
