4.4 "Placement Data" Tab

0305-001 2 -112 AIL01EDTP

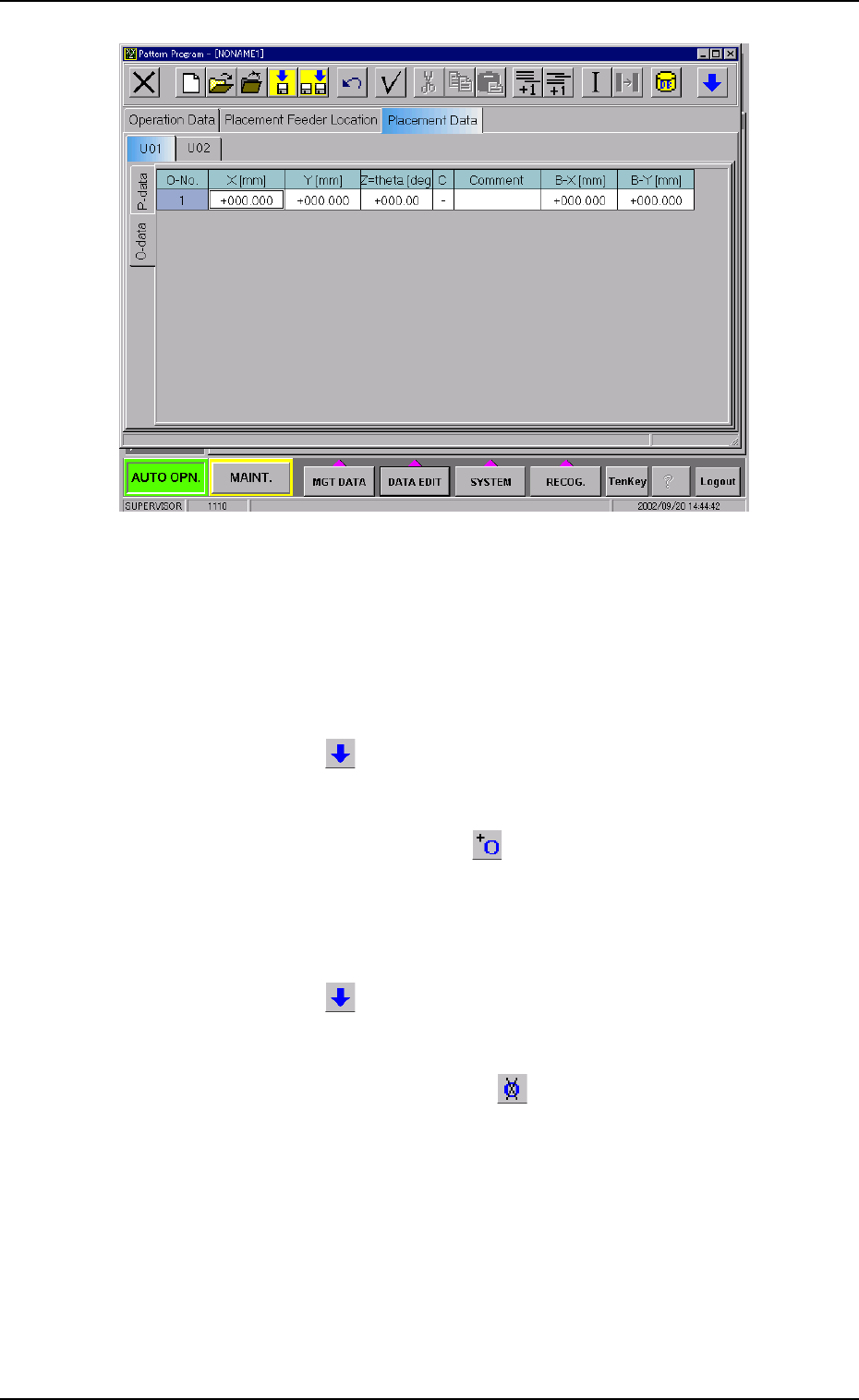

Fig. 3B174 "O-data" Tab Sheet

• Operation Procedure

New Creation of "O-data" Tab

(1) When the second toolbar is not visible, press the [Open 2nd.

Toolbar] icon

[ ] to make the second toolbar visible.

(2) Select the "U#" tab where an "O-data" tab should be added with

the touch screen or pointing device.

(3) When the [Add O-Data] icon

[ ] is selected, a new "O-data"

tab is added.

Deletion of "O-data" Tab

(1) When the second toolbar is not visible, press the [Open 2nd.

Toolbar] icon

[ ] to make the second toolbar visible.

(2) Select the "U#" tab where an "O-data" tab should be deleted with

the touch screen or pointing device.

(3) When the [Delete O-Data] icon

[ ] is selected, the "O-data"

tab of the selected U data is deleted.
