(C03) Placement Data (O-data)
The set parameters can be used to create a repetitive pattern pro-
gram.
Fig. 3B110 Edit Window (Example)
(C03_01) O-No.
Shown are the step Nos. of the placement data (O).
These step Nos. are regarded as repetitive pattern Nos.
Parameters must be entered in each line (pattern).
Fig. 3B112 Example of Repetitive Pattern Program
O-No.4
Pattern 3Pattern 4
Pattern 2 Pattern 1
O-No.3
O-No.2
O-No.1
2.5 Placement Data
0305-001 2-53 AIL01EDTP
1
O-No.
Fig. 3B111
(C03_02) X [mm] and Y [mm]
Set the coordinates of each pattern origin (O
01
through On) based on
the placement coordinate reference point (N
0
).
Unit: mm
A pattern origin refers to the reference coordinates of a repetitive pat-
tern.
The pattern origins (reference coordinates) must be determined, re-
garding the "Z=theta" data as "0°" (described in "(C03_03)" and lo-
cated at corners on the same side as the placement coordinate refer-
ence point (N
0
).
N
0
: The center of is the placement coordinate reference.
O
01
: Pattern Origin of Pattern 1
O
02
: Pattern Origin of Pattern 2
O
03
: Pattern Origin of Pattern 3
O
04
: Pattern Origin of Pattern 4

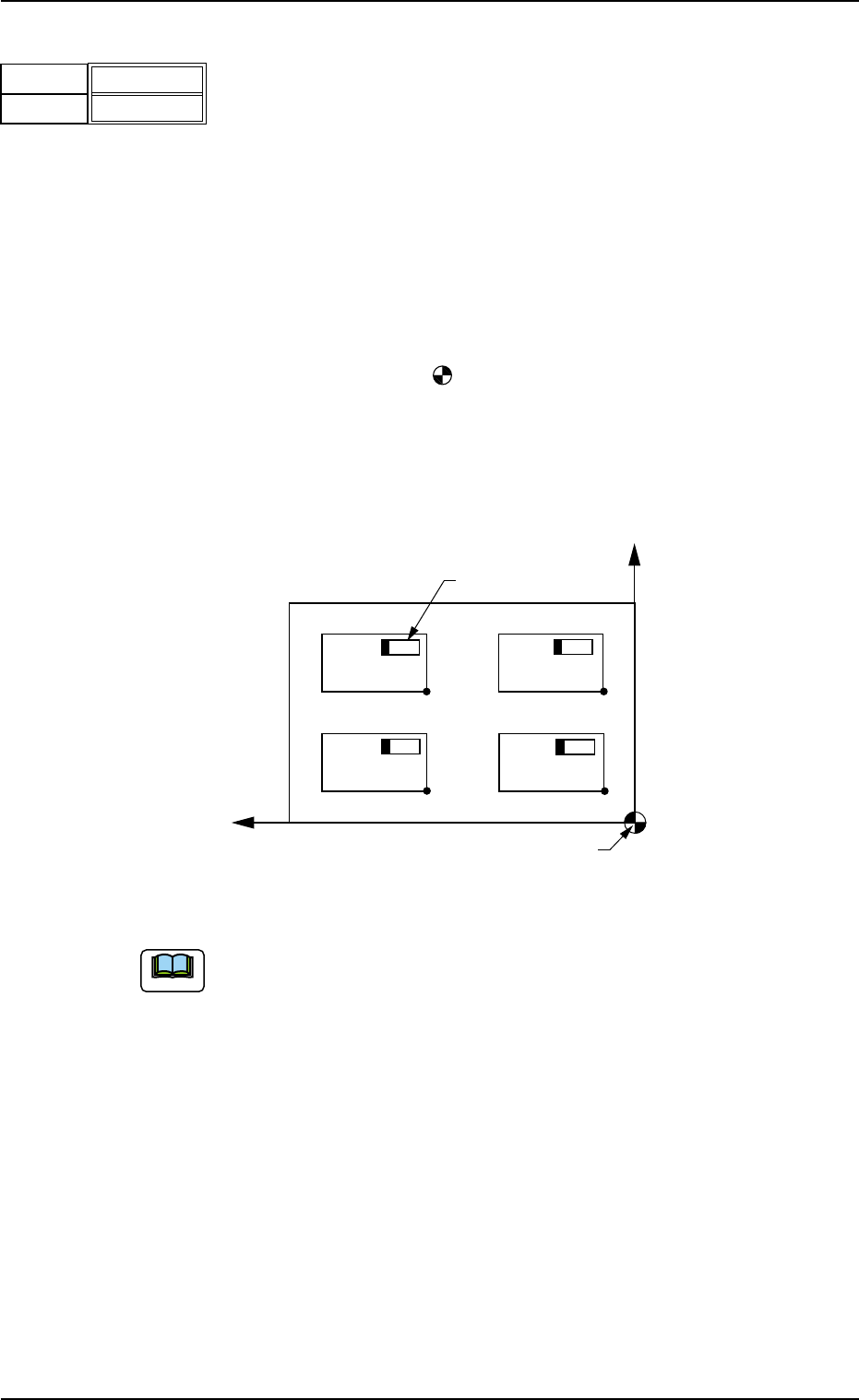

Fig. 3B114 Example of Repetitive Patterns
Do not set any coordinates in the last line (last step No.).
Keep them as "000.000".
Placement Coordinate Reference (No)
O
04
Y
X
O
03
O02 O01
Component
Pattern 3Pattern 4
Pattern 2
Pattern 1
2.5 Placement Data
0305-001 2-54 AIL01EDTP
Fig. 3B113
X [mm]
Y [mm]
010.000
010.000
Note
(C03_03) Z=theta [deg]
Set an angle of each pattern.
Keep the angle of the reference pattern as "000°00'".
In the figure below, "Pattern 1" is regarded as a reference one.
Unit: °(degree)
Data Input Range: +0°, +90°, +180°, or +270°
N
0
: The center of is the placement coordinate reference.
O
01
: Pattern Origin of Pattern 1
O
02
: Pattern Origin of Pattern 2
O
03
: Pattern Origin of Pattern 3
O
04
: Pattern Origin of Pattern 4
Pattern 1: 0° Pattern 2: 90°
Pattern 3: 180° Pattern 4: 270°
Fig. 3B116 Example of Repetitive Patterns
Do not set any angle in the last line (last step No.).
Keep it as "+000.00".
Placement Coordinate Reference (N0)
X
O
01
Component
Pattern 1
Pattern 3
Pattern 2
Pattern 4
O04
O03
O02
Y
2.5 Placement Data
0409-003 2-55 AIL01EDTP
Fig. 3B115
+000.00
Z = theta [deg]
Note
