3.1.2 Navigations in "manage (Type #)" Windows
(1) How to close the "manage (Type #)" window
When the "
" icon is pressed, the "manage (Type #)" window
closes.
(2) How to select a "manage (Type #)" window
When the "
" icon is pressed, the "manage (Type1)" window be-
comes active.
When the "
" icon is pressed, the "manage (Type2)" window be-
comes active.
(3) How to cascade two "manage (Type #)" windows
When the "
" icon is pressed, the "manage (Type1)" and "man-
age (Type2)" windows are cascaded (overlaid), making each title
bar visible.

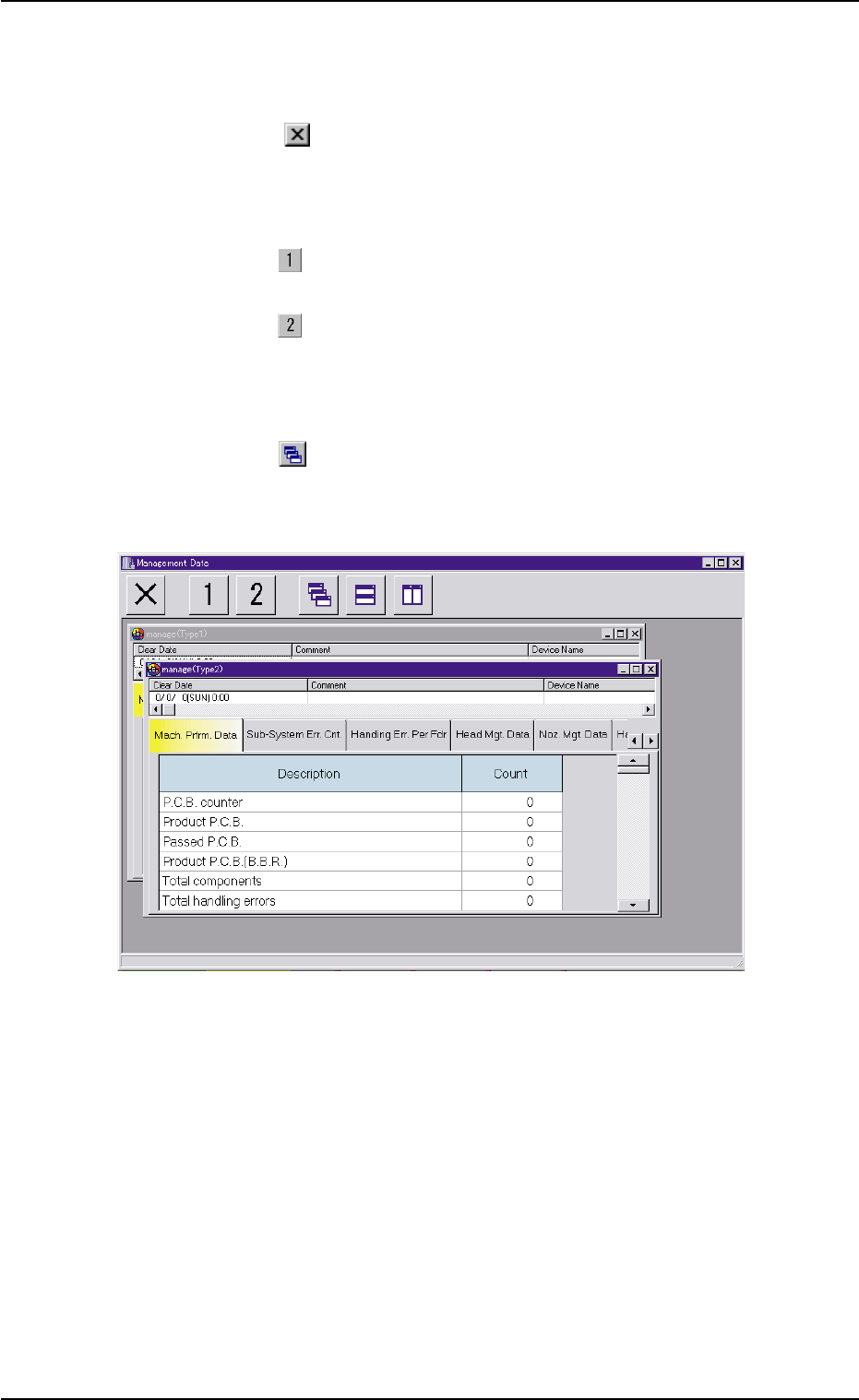

Fig. 3D6 Cascaded "Management Data" Windows
3.1 Basic Operations in "Management Data" Window
0305-001 4-12 AIL01EDTP
(4) Tile Horizontally
When the "
" icon is pressed, the "manage (Type1)" and "man-
age (Type2)" windows are re-arranged up and down.

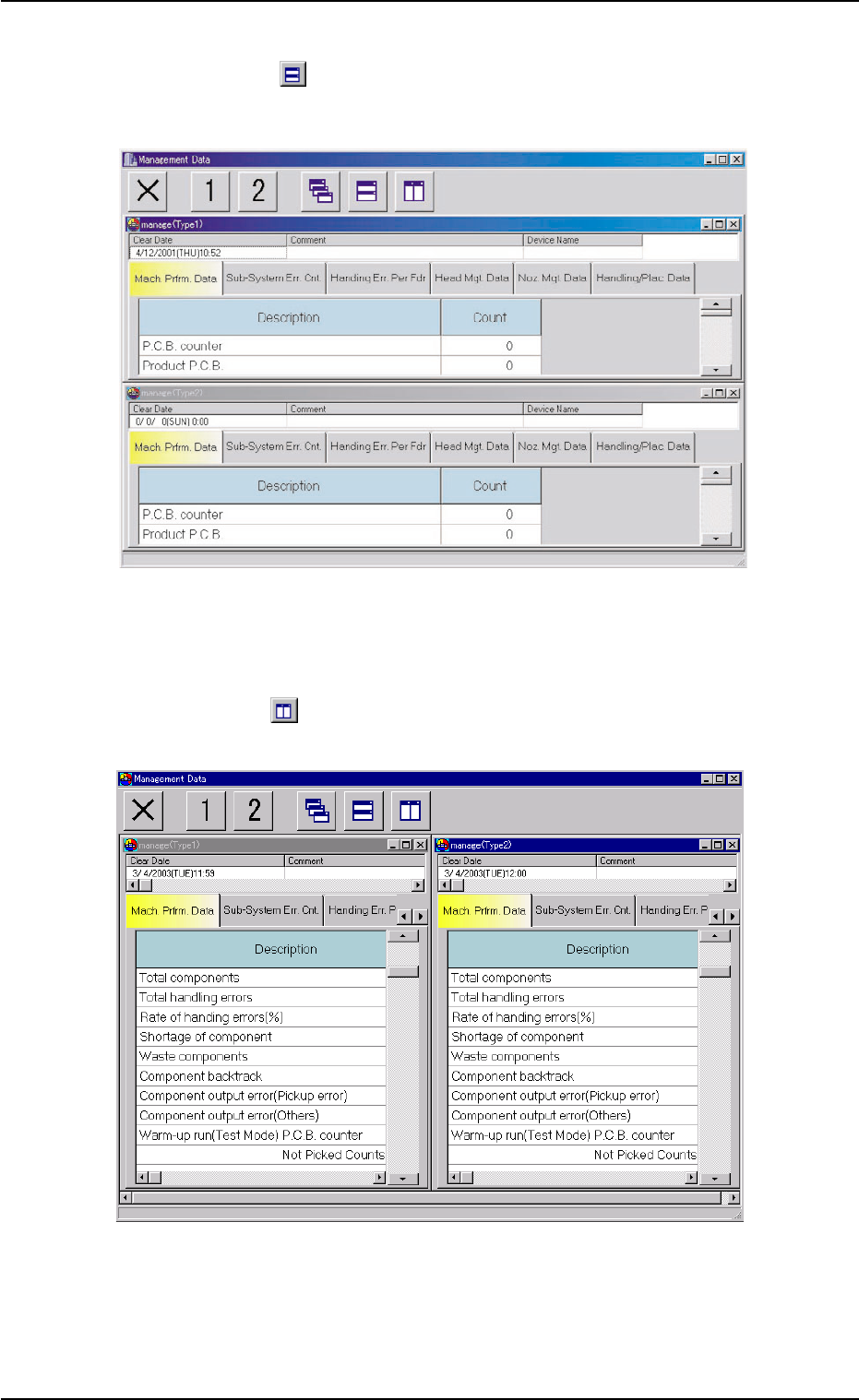

Fig. 3D7 Horizontally Tiled "manage (Type1)" and "manage (Type2)" Windows
(5) Tile Vertically
When the"
" icon is pressed, the "manage (Type1)" and "manage
(Type2)" windows are re-arranged side by side.
Fig. 3D8 Vertically Tiled "manage (Type1)" and "manage (Type2)" Windows
3.1 Basic Operations in "Management Data" Window
0403-002 4-13 AIL01EDTP
3.2 "Machine Performance Data" Tab
The corresponding tab sheet enables the operator to view the informa-
tion on machine performance.
• Sheet Layout
When the "Machine Performance Data" tab is pressed in the "Man-
agement Data" window, the following tab sheet appears inside the
window.

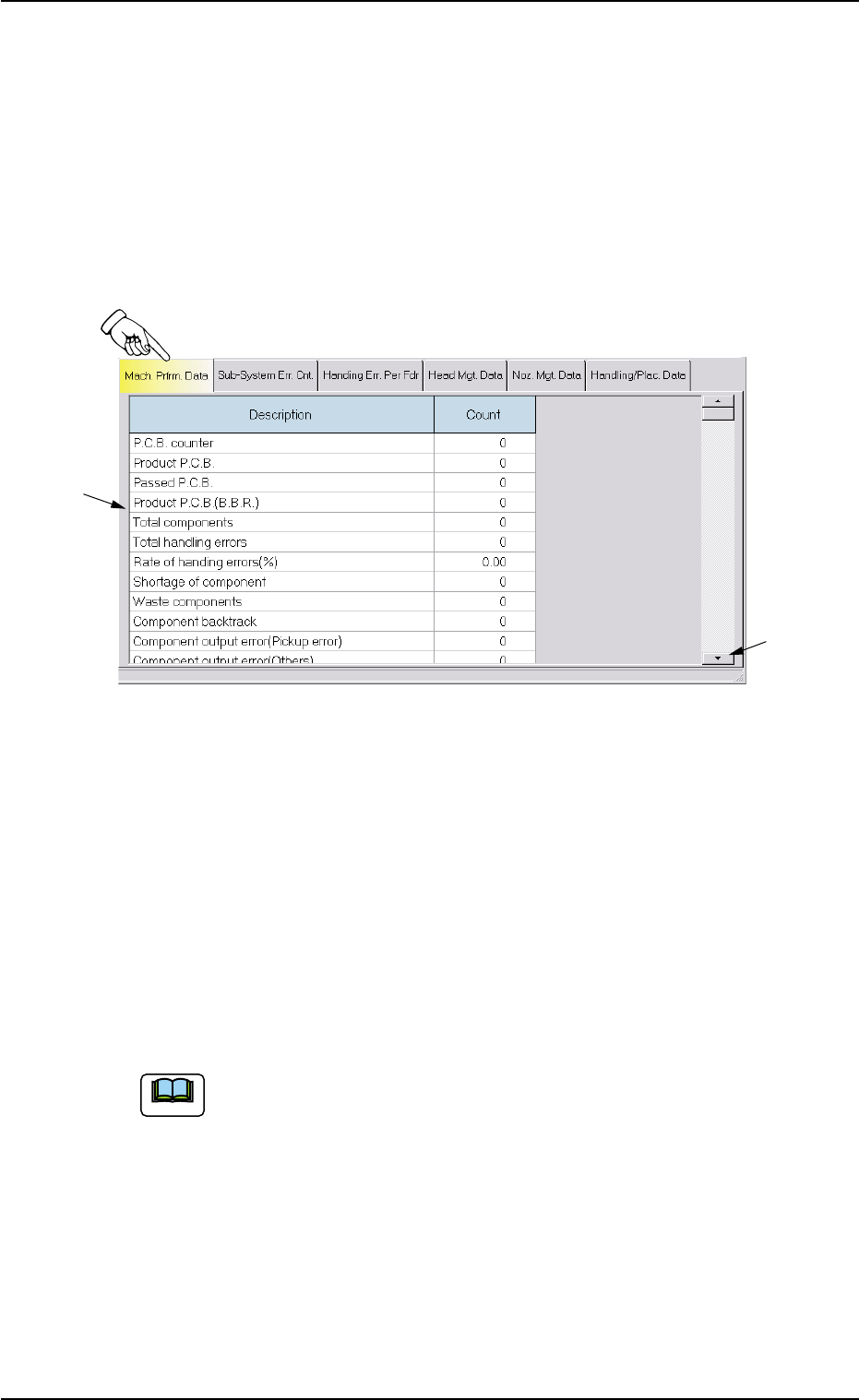

Fig. 3D9 "Machine Performance Data" Tab Sheet
• Sheet Composition
*1 Items
The following items are displayed.
(1) P.C.B. counter
Shown is the number of produced P.C.B.’s.
Counting is implemented when the X/Y table is zeroed after com-
ponent placement operation (when a P.C.B. is finished).
When a pattern program is set several times as the current
program, the sum total is computed.
(2) Product P.C.B.
The number of produced unit P.C.B.’s on a multi-unit P.C.B. is
summed up. Counting is implemented when a unit P.C.B. is fin-
ished and the X/Y table returns to its origin.
When the unit P.C.B. B.B.R. detection function (option) is used,
defective unit P.C.B.'s are excluded.
3.2 "Machine Performance Data" Tab
0403-002 4-14 AIL01EDTP
