(2) When a parameter is entered through keyboard navigation and the [Enter] key is pressed, it is set in the text box. Fig. 3B146 • How to enter a string of characters A string of characters can be entered by selecting a…

How to enter a parameter through keyboard navigation

Fig. 3B143 Keyboard and Pointing Device

(1) To enter a parameter, press the text box quickly twice.

Or, double-click the text box with the pointing device.

Fig. 3B144

The text box is set ready for data entry.

Fig. 3B145

POWER ON

STOP

START

ENABLE

RUN SETUP

OPERATION

LOCK

PNL CHANGE

Pointing Device

Keyboard

[ENTER] Key

EMERGENCY

4.1 Basic Operation

0305-001 2-87 AIL01EDTP

(2) When a parameter is entered through keyboard navigation and the

[Enter] key is pressed, it is set in the text box.

Fig. 3B146

• How to enter a string of characters

A string of characters can be entered by selecting an item from the

drop-down list.

Selection of Option in Drop-Down List

(1) To enter a string of characters, press the text box quickly twice. Or,

double-click the text box with the pointing device.

Fig. 3B147

The text box is changed to a combo box that has a down arrow on

the right side.

Fig. 3B148

(2) Press the down arrow. Or, click the down arrow with the pointing

device. The drop-down list box opens.

Fig. 3B149

4.1 Basic Operation

0305-001 2-88 AIL01EDTP

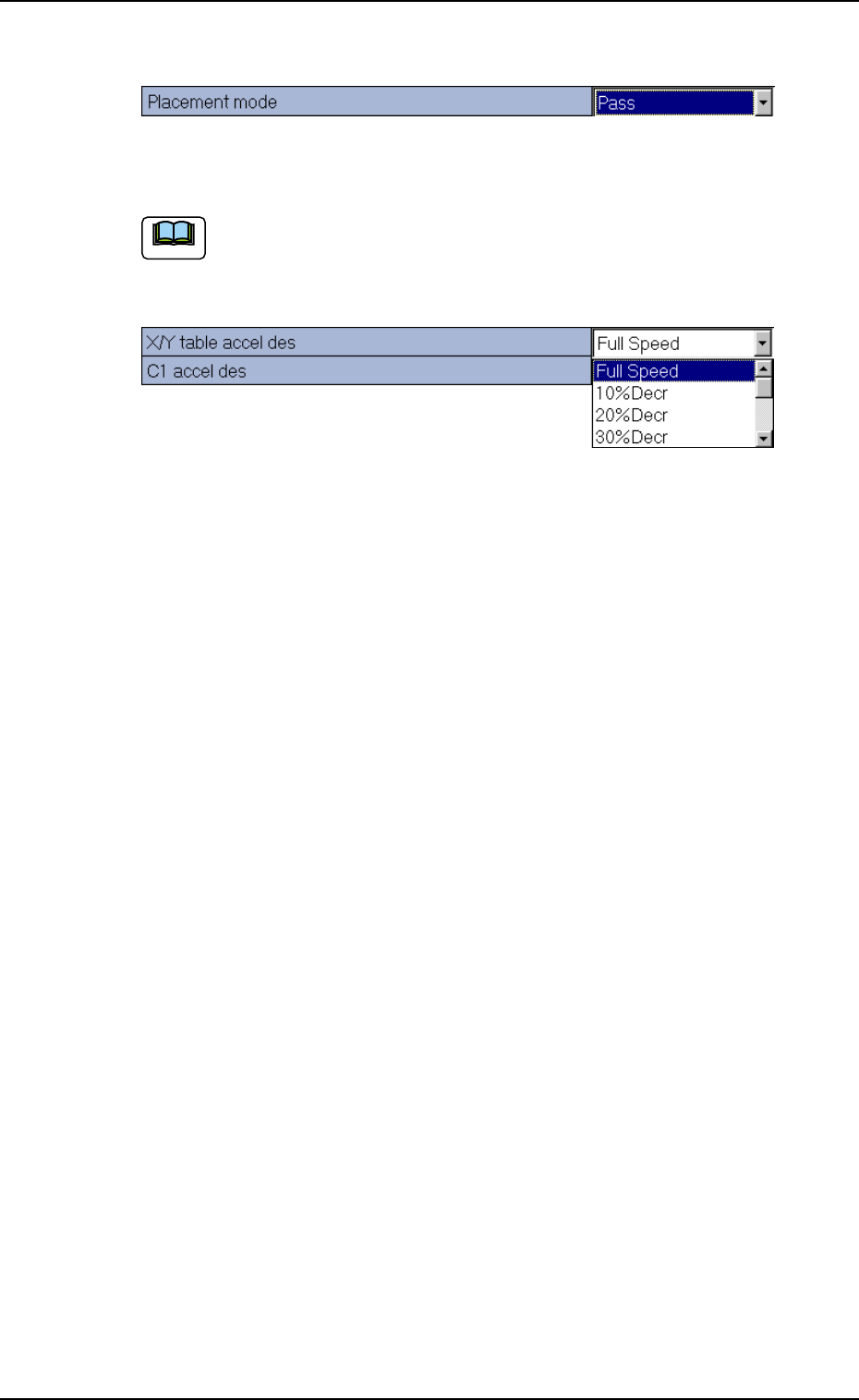

(3) When the desired option in the list is pressed, it is set in the text box.

Fig. 3B150

When there are many options, a scrollbar appears beside the

list. To make more options visible, scroll down the list and se-

lect the desired option.

Fig. 3B151

How to enter a parameter through keyboard navigation

A pattern program name, component IDs, and comments, etc., can be

entered through keyboard navigation.

(1) When a text box in which a pattern program name, a component ID,

and a comment, etc., is pressed quickly twice, it is set ready for

data entry. Or, double-click the text box with the pointing device.

(2) When a parameter is entered through keyboard navigation and the

[Enter] key is pressed, it is set in the text box.

4.1 Basic Operation

0305-001 2-89 AIL01EDTP

Note
