0305-001 5-41 AIL01EDTP *10 Camera3 Theta [deg] This is the offset data used to correct angle difference between the X/Y table coordinate system and the Camera #3 (P .E.C. Recogni- tion Camera) scanning coordinate system…
*7 Camera2
Standard gain (Back Lighting), Standard level (Back Lighting),
Standard gain (Front Lighting 12), Standard level (Front Light-
ing 12), Standard gain (Front Lighting 1), Standard level (Front
Lighting 1), Standard gain (Front Lighting 2), Standard level
(Front Lighting 2)
These parameters are used to set amplifications at which the im-
age signals of Camera #2 (Component Recognition Camera (Low
Magnification)) is converted into picture information representing
brightness.
(a) The lower the gain is, the better the contrast becomes.
(b) The smaller the level is, the brighter the whole view
becomes.
(c) Parameters can be set for both back- and front-light-
ing systems.
*8 Camera3
Magnification X [0.01
µµ
µµ
µm/pixel], Y [0.01
µµ
µµ
µm/pixel]
These parameters are used to set magnification of Camera #3
(P.E.C. Recognition Camera) in increments of 0.01 µm per pixel.
Parameters must be entered for both X and Y directions.
*9 Camera3
Position X (horizontal) [mm], Y (vertical) [mm]
The distances between the X/Y table P.C.B. origin and the center of
Camera #3 (P.E.C. Recognition Camera) should be set to adjust
the data compared with the design values.

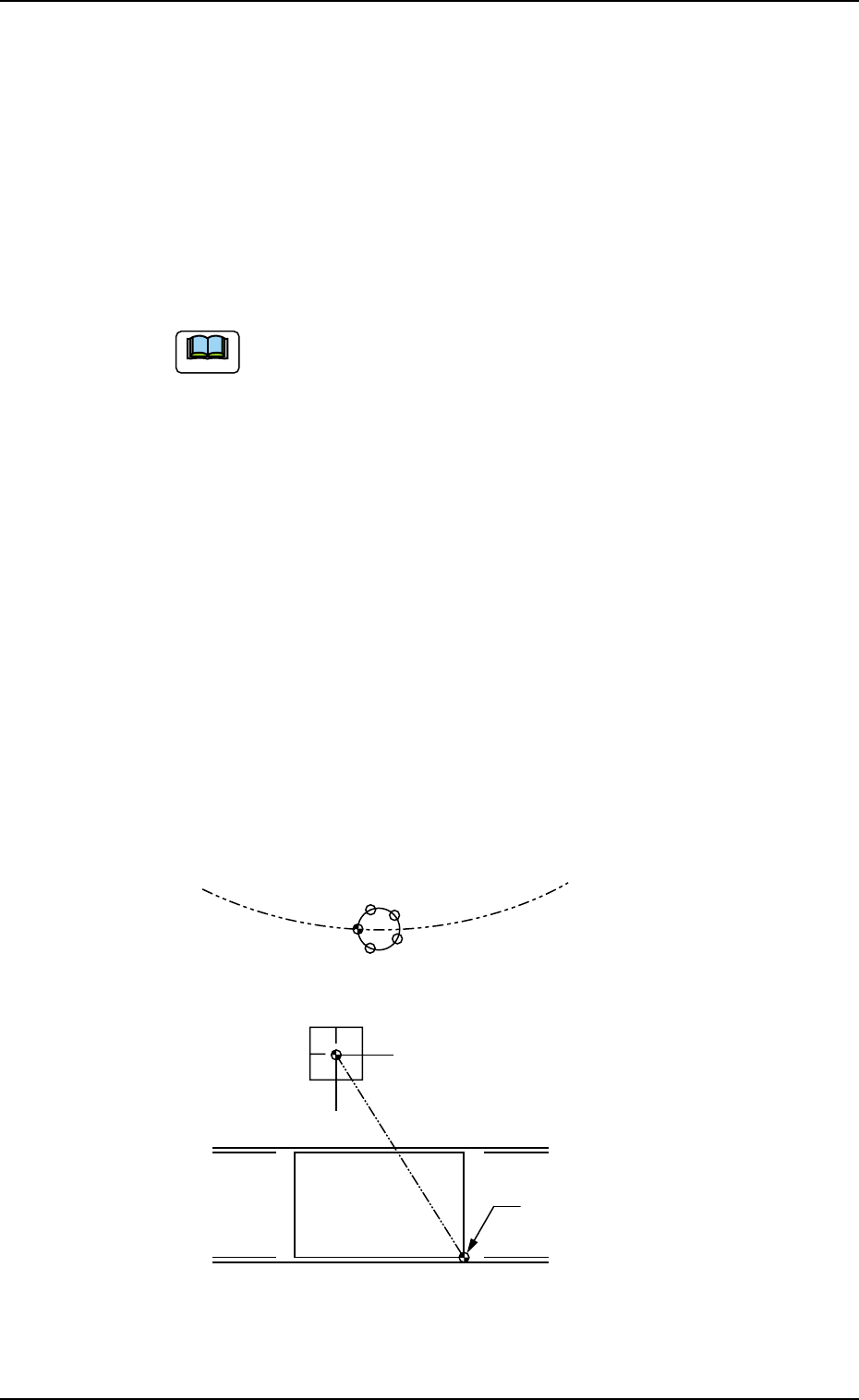

Fig. 3E38
3.2 "Device Offset" Tab
P.C.B. Origin
Rotary Turret
P.E.C. Recognition Camera
P.C.B.
0305-001 5-40 AIL01EDTP
Note
0305-001 5-41 AIL01EDTP
*10 Camera3
Theta [deg]
This is the offset data used to correct angle difference between the
X/Y table coordinate system and the Camera #3 (P.E.C. Recogni-
tion Camera) scanning coordinate system.
When the camera scanning coordinate system deviates
counterclockwise from the X/Y table coordinate system, a
plus value must be entered as offset data.
*11 Camera3
P.C.B. lighting 1 gain, P.C.B. lighting 1 level,
P.C.B. lighting 2 gain, P.C.B. lighting 2 level
These parameters are used to set amplifications at which the im-
age signals of Camera #3 (P.E.C. Recognition Camera) is converted
into picture information representing brightness.
(a) The lower the gain is, the better the contrast becomes.
(b) The smaller the level is, the brighter the whole view
becomes.
*12 Camera3
Bad mark gray value
This parameter is used to set the contrast of the bad mark (option).
Camera3
Bad mark gain, Bad mark level
These parameters are used to set amplifications at which the im-
age signals of the bad mark (option) is converted into picture infor-
mation representing brightness.
(a) The lower the gain is, the better the contrast becomes.
(b) The smaller the level is, the brighter the whole view
becomes.
3.2 "Device Offset" Tab
Note
Note
Note
(2) "Individual Nozzle Camera #1 Gain/Level" and "Individual
Nozzle Camera #2 Gain/Level" Tabs
• Sheet Layout
When the "Individual Nozzle Camera #1 Gain/Level" tab is pressed in
the "Device Offset" tab sheet, the following tab sheet appears.
In case of the "Individual Nozzle Camera #2 Gain/Level" tab
sheet, follow almost the same navigations.
Fig. 3E39 "Individual Nozzle Camera #1 Gain/Level" Tab Sheet
• Sheet Composition
*1 Head
The head Nos. are displayed.
*2 Nozzle
The nozzle Nos. are displayed.
0305-001 5-42
AIL01EDTP
*1
*3
*2
3.2 "Device Offset" Tab
Note
