How to enter a parameter through keyboard navigation Fig. 3B143 Keyboard and Pointing Device (1) T o enter a parameter , press the text box quickly twice. Or , double-click the text box with the pointing device. Fig. 3B1…

(2) To enter a parameter, press the text box quickly twice.

Or, double-click the text box with the pointing device.

Fig. 3B140

The text box is set ready for data entry.

Fig. 3B141

(3) When a parameter is entered, using the "Tenkey" window and the

[Ent] button is pressed, it is set in the text box.

Fig. 3B142

4.1 Basic Operation

0305-001 2-86 AIL01EDTP

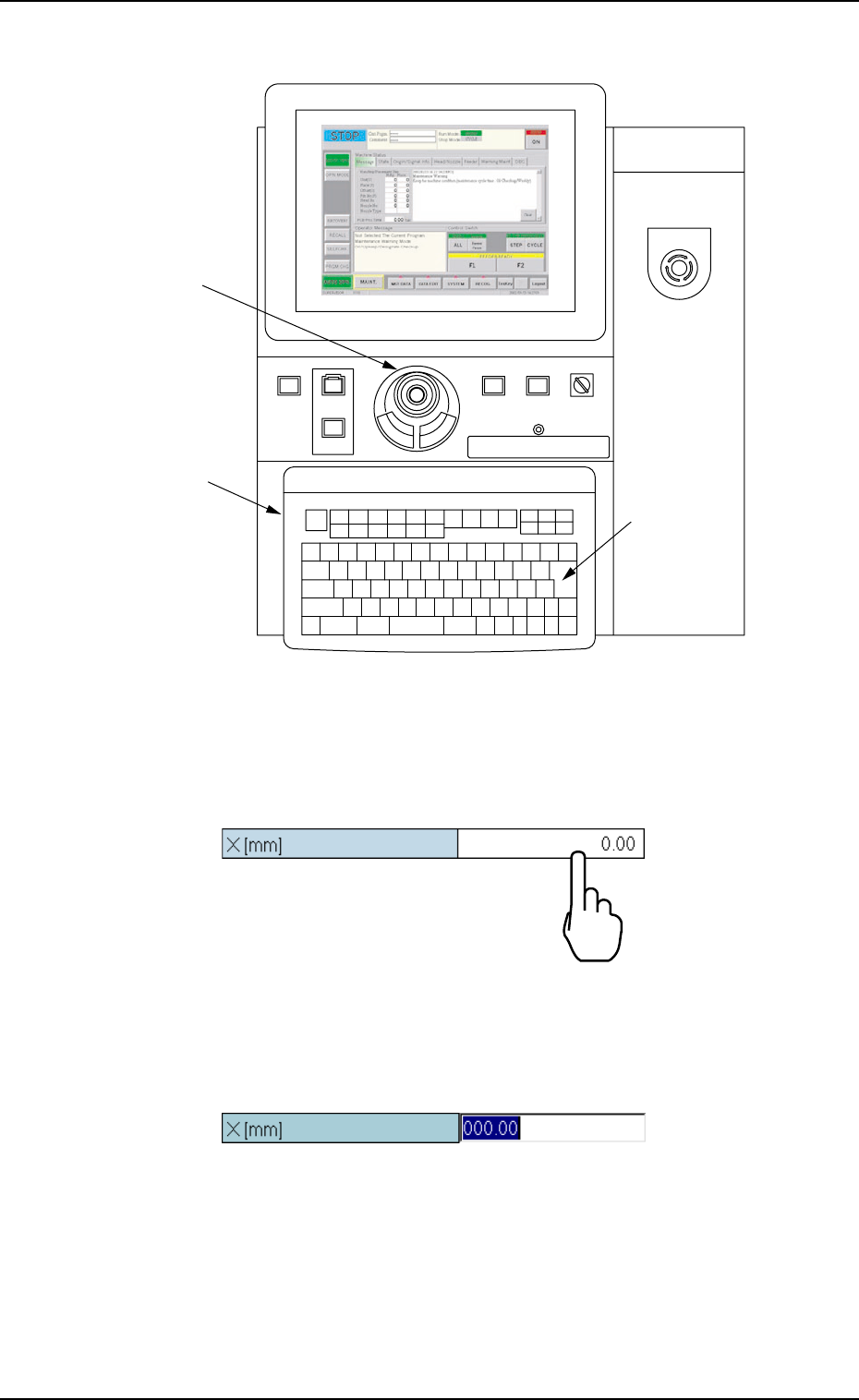

How to enter a parameter through keyboard navigation

Fig. 3B143 Keyboard and Pointing Device

(1) To enter a parameter, press the text box quickly twice.

Or, double-click the text box with the pointing device.

Fig. 3B144

The text box is set ready for data entry.

Fig. 3B145

POWER ON

STOP

START

ENABLE

RUN SETUP

OPERATION

LOCK

PNL CHANGE

Pointing Device

Keyboard

[ENTER] Key

EMERGENCY

4.1 Basic Operation

0305-001 2-87 AIL01EDTP

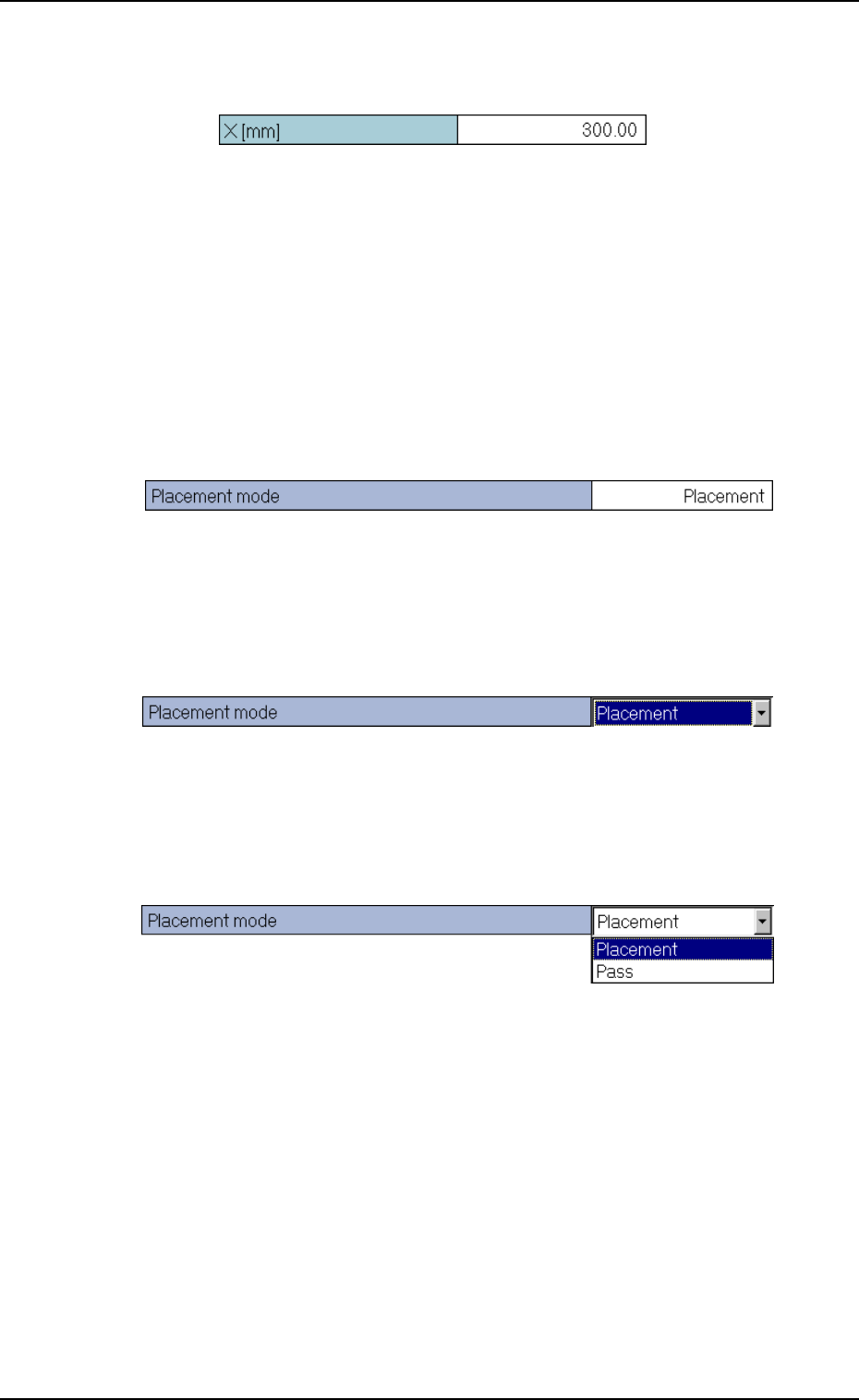

(2) When a parameter is entered through keyboard navigation and the

[Enter] key is pressed, it is set in the text box.

Fig. 3B146

• How to enter a string of characters

A string of characters can be entered by selecting an item from the

drop-down list.

Selection of Option in Drop-Down List

(1) To enter a string of characters, press the text box quickly twice. Or,

double-click the text box with the pointing device.

Fig. 3B147

The text box is changed to a combo box that has a down arrow on

the right side.

Fig. 3B148

(2) Press the down arrow. Or, click the down arrow with the pointing

device. The drop-down list box opens.

Fig. 3B149

4.1 Basic Operation

0305-001 2-88 AIL01EDTP
