4 .1 "Pattern Program Product History" T ab The corresponding tab sheet enables the operator to check the pattern program start and end date & time records (logs). • Sheet Layout When the"Pattern Progr…

Table 3D5

Tabs Description

Pattern Program The corresponding tab sheet enables the operator to check the

Product History pattern program start and end date & time records (logs).

Machine Performance Listed is the machine performance data such as "P.C.B. counter",

Data "Product P.C.B.", "Passed P.C.B.", "Product P.C.B. (B.B.R.) (option)",

"Total components", "Total handling errors", "Rate of handling errors

(%)", "Power on time", "Maintenance time", "Test mode time", "Total

handling errors/Total components", etc.

Handling Errors Per This tab sheet is provided with two tabs - "Feeder Location Crg.

Feeder #1" and "Feeder Location Crg. #2". Each tab sheet displays a list of

"Total Components", "Number of Errors (classified by error types)",

"Total Errors", "Rate of Error (%)", "Shrtg. of Comp.", Component

ID.", "Type", and "Width (mm)" for each feeder No. (actual feeder).

4. "Pattern Program Management Data" Window

0305-001 4-32 AIL01EDTP

4.1 "Pattern Program Product History" Tab

The corresponding tab sheet enables the operator to check the pattern

program start and end date & time records (logs).

• Sheet Layout

When the"Pattern Program Product History" tab is pressed in the

"Pattern Program Management Data" window, the following tab sheet

appears inside the window.

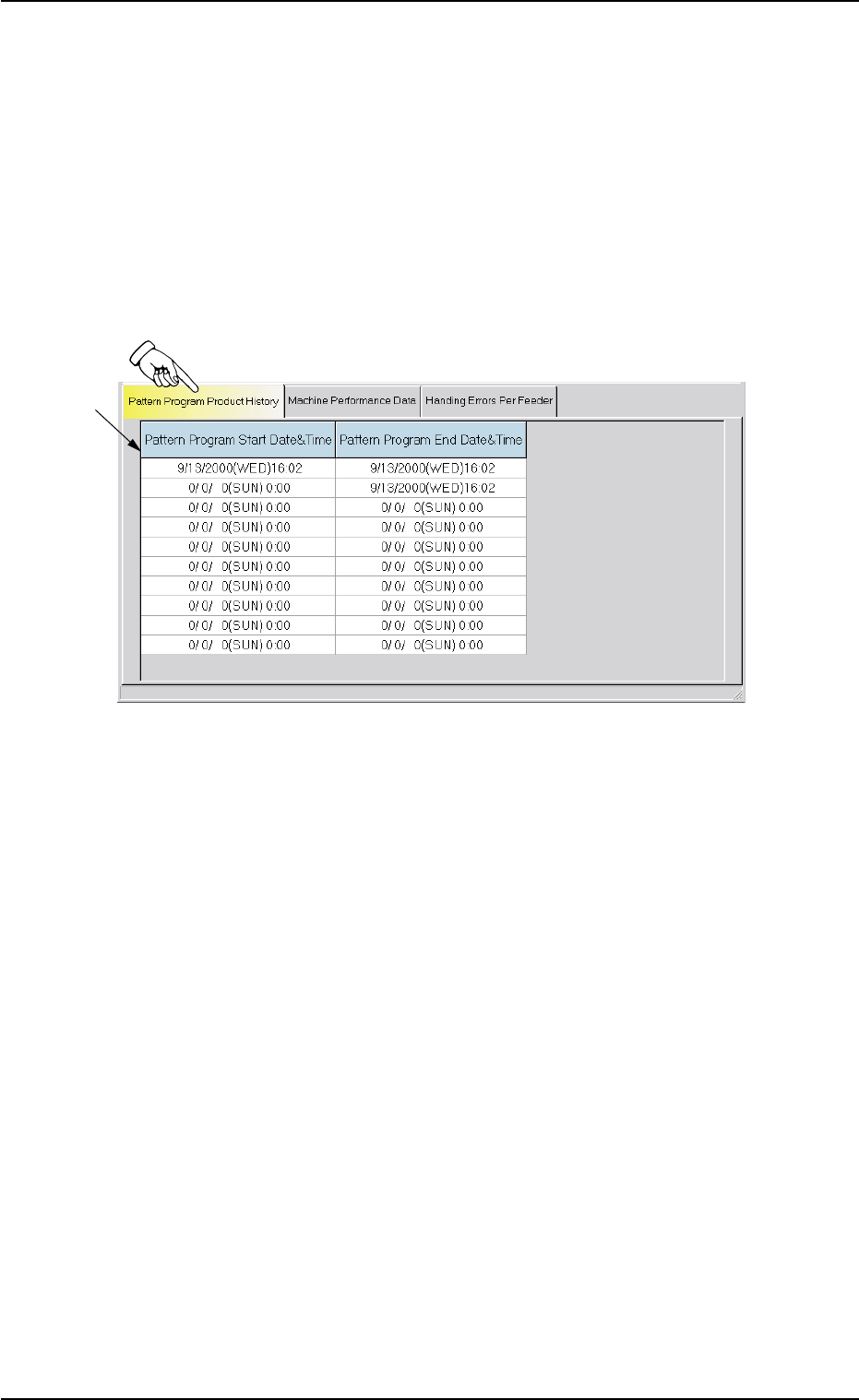

Fig. 3D16 "Pattern Program Product History" Tab Sheet

• Sheet Composition

*1 List of Pattern Program Logs

Up to 10 records (logs that show the number of times specified as

current pattern program) are displayed for each individual pattern

programs.

The start and end date & time records (logs) are also displayed for

the selected pattern program.

When there are more than 10 logs, the older ones are deleted one

by one.

4.1 "Pattern Program Product History" Tab

0305-001 4-33 AIL01EDTP

4.2 "Machine Performance Data" Tab

The corresponding tab sheet enables the operator to view the perfor-

mance data of the production model.

• Sheet Layout

When the "Machine Performance Data" tab is pressed in the "Pat-

tern Program Management Data" window, the following tab sheet ap-

pears inside the window.

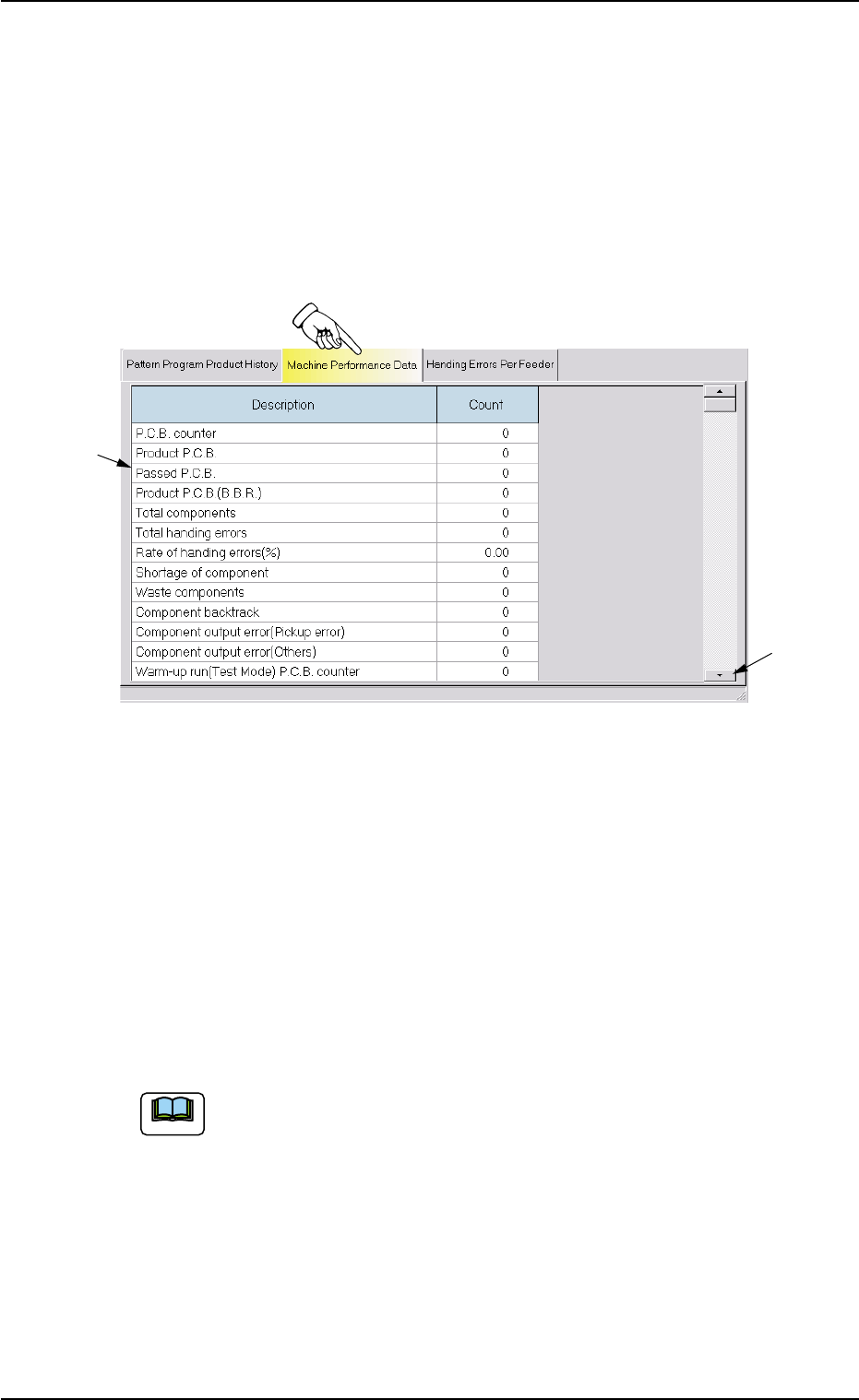

Fig. 3D17 "Machine Performance Data" Tab Sheet

• Sheet Composition

*1 Items

The following items are displayed.

(1) P.C.B. counter

Shown is the number of produced P.C.B.’s.

Counting is implemented when the X/Y table is zeroed after com-

ponent placement operation (when a P.C.B. is finished).

When a particular pattern program is set several times as cur-

rent one, the sum total is computed.

(2) Product P.C.B.

The number of produced unit P.C.B.’s on multi-unit P.C.B. is

summed up. Counting is implemented when the X/Y table is ze

roed after component placement operation (when a unit is fin

ished).

When the unit P.C.B. B.B.R. detection function (option) is used,

defective unit P.C.B.'s are excluded.

4.2 "Machine Performance Data" Tab

0403-002 4-34 AIL01EDTP

Note
