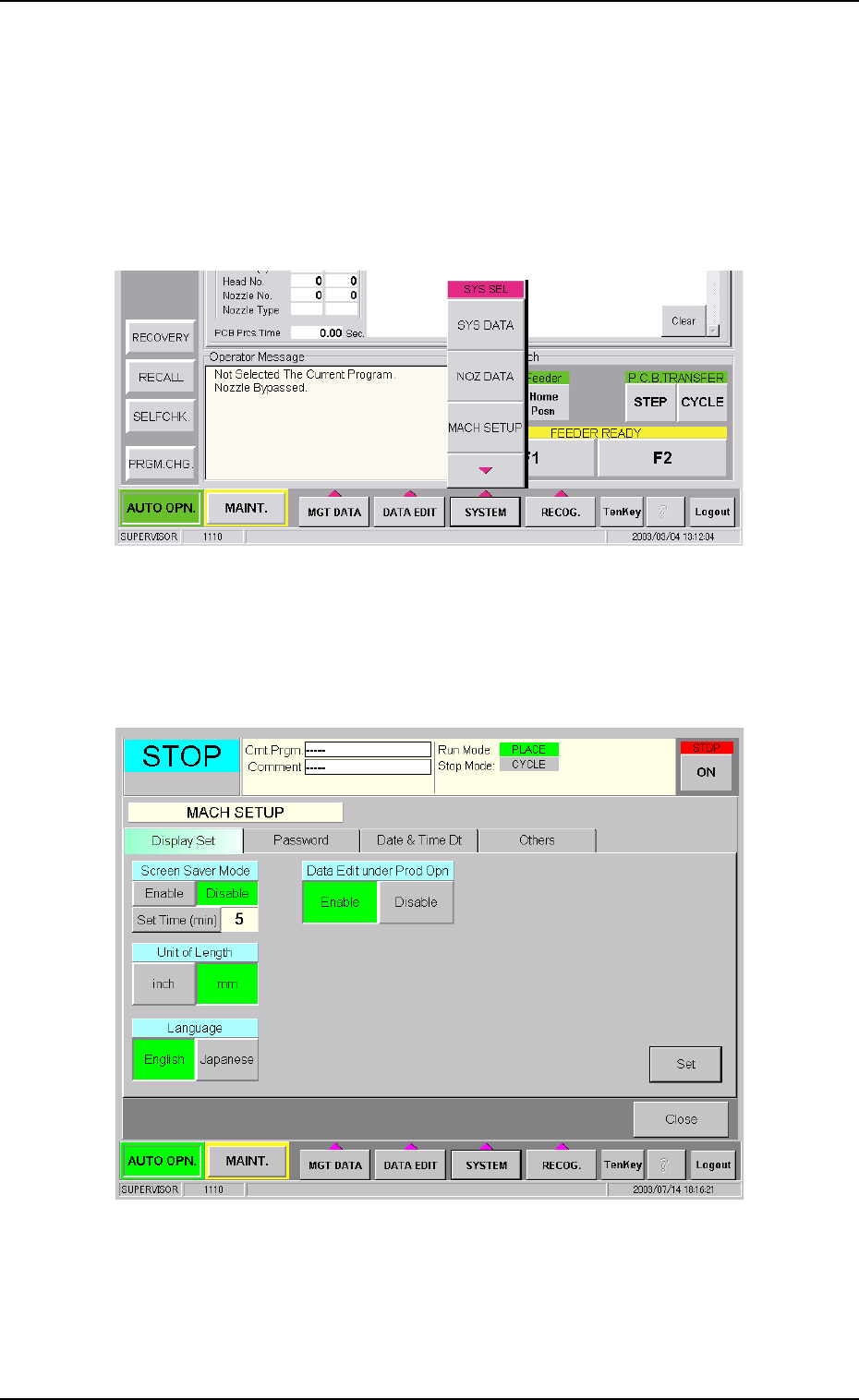

2.1.3 "MACH SETUP" Window

The following describes how to open the "MACH SETUP" window.

• Window Layout

(1) Press the [SYSTEM] button on the main menu bar. The "SYS SEL"

menu opens.

Fig. 3E8

(2) Press the [MACH SETUP] button. The "MACH SETUP" window

opens.

Fig. 3E9 "MACH SETUP" Window

0305-001 5-9

AIL01EDTP

2.1 Display of Each Window

3. "System" Window

3.1 Outline of "System" Window

The "System" window is composed of the following items.

"System" Window

Tab Tabs (Tab Sheets) Reference Item Nos.

Device Offset (3.2) Device Offset (3.2.1)

Head (3.2.2)

CPK Offset (3.2.3)

Feeder-A (3.2.4)

Feeder-B (3.2.4)

Nozzle (3.2.5)

Camera Offset (3.2.6)

Lighting (3.2.7)

Auto Operation (3.3) Auto Operation Setup (3.3.1)

P.C.B. Transfer Mode Setup (3.3.2)

Configuration Setup (3.4) Light Tower Setup (3.4.1)

Alarm Setup (3.4.2)

Fig. 3E10

The numbers in ( ) represent Nos. of items which can be re-

ferred to for details.

0403-002 5-10

AIL01EDTP

3. "System" Window

Note

3.2 "Device Offset" Tab

This session describes how to set various kinds of offset data for each

device position adjustment related to machine operation, for the cam-

era system related to placement accuracy, for the heads, and for the

nozzles.

Do not change the parameters unless necessary. These parameters

are factory-adjusted upon shipment of the machine.

• Some parameters are automatically calculated through teaching op-

erations.

3.2.1 "Device Offset" Tab

• Sheet Layout

When the "Device Offset" tab is pressed in the "Device Offset" tab sheet,

the following tab sheet appears.

Fig. 3E11 "Device Offset" Tab Sheet

0412-002 5-11

AIL01EDTP

3.2 "Device Offset" Tab

Notice
