2.2 "Selection of component ID" Window

051 1-002 3-5 AIL01EDTP

P:When "p" is set, it indicates that the compo-

nent ID is protected.

S:When "s" is set, it indicates that the compo-

nent ID is a standard one.

Component shape : Component shapes are displayed.

Component type : Component types are displayed.

Update time : Update time (date and time) is displayed.

Nozzle type : The selected nozzle types are displayed.

By pressing one of the titles (the labels arranged on top of the

list), the step lines (parameters) are sorted by ID, update time,

etc., and reorganized, depending on which title is selected.

*7 [Current], [Property...], [Delete...], [Copy...], [Rename...],

[Create Link ID], and [Merge...] Buttons

[Current] Button

When pressed, this button enables you to select the component

IDs used in the pattern program that was opened last.

[Property...] Button

When pressed, the "Property" window related to the component ID

selected in "*6" appears.

Refer to "2.3.7 Property of Component ID" for the detailed

information on the "Property" window.

[Delete...] Button

When pressed, this button enables you to delete the selected com-

ponent ID in "*6".

[Copy...] Button

When pressed, this button enables you to make a copy of the com-

ponent ID selected in "*6".

[Rename...] Button

When pressed, this button enables you to rename the component

ID selected in "*6".

Note

2.2 "Selection of component ID" Window

051 1-002 3-6 AIL01EDTP

[Create Link ID] Button

When pressed, this button enables you to create a link ID for the

component ID selected in "*6".

[Merge...] Button

When pressed, this button enables you to merge the component

IDs selected in "*6".

*8 [Link ID] Button

Link and root IDs are arranged side by side and displayed in the tree

(hierarchical) file system.

*9 [New] Button

When pressed, this button opens a new "Component Library" edit

window with default values.

2.3 Basic Usage of the "Selection of component ID" Window

0305-001 3-7 AIL01EDTP

2.3 Basic Usage of the "Selection of component ID"

Window

2.3.1 Type Addition

When the [Type Addition] button is pressed, the following window ap-

pears.

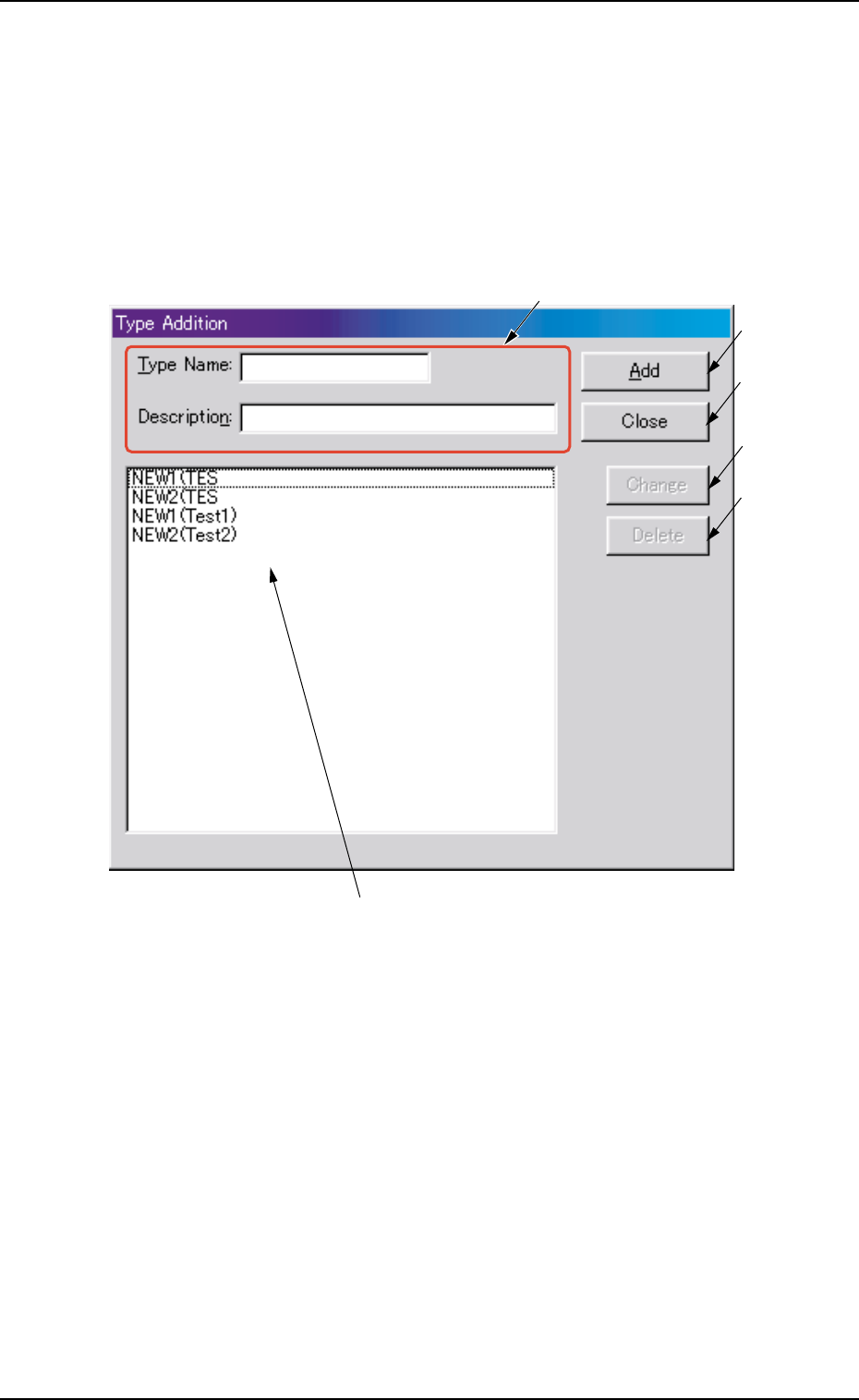

Fig. 3C5 "Type Addition" Window

• Composition of "Type Addition" Window

*1 Type Name and Description

Enter a parameter in each text box.

*2 "List of Component Types" Pane

Newly created component types are displayed in this pane.

*3 [Add] Button

When this button is pressed, a type entered in the "Type Name" text

box is added as a new type.
