• Operation Procedure Fig. 3B161 Menu for Editing Addition of "Fdr No." (1) Select [Add Line] icon on the menu. A new "Fdr No." is added to the last line (last Fdr No.). Insertion of "Fdr No.&quo…

*2 Fdr No.

Shown under this key are the feeder Nos.

(a) Refer to "• Operation Procedure" (described later) for

the detailed information on how to add or delete feeder

Nos. (Fdr Nos.).

(b) When the background color is black, it indicates that

the feeders have exceeded the maximum installable

number.

Avoid this by deleting a feeder No. (Fdr. No.).

*3 Component ID

Displayed are the currently allocated component IDs.

Refer to "4.3.2 "Component ID List" Window" for how to

enter or delete a component ID.

*4 C, Comment, Dual Fdr, Feeder Fixed, Feeder Alternate, Fdr

No.

Enter a parameter in each text box.

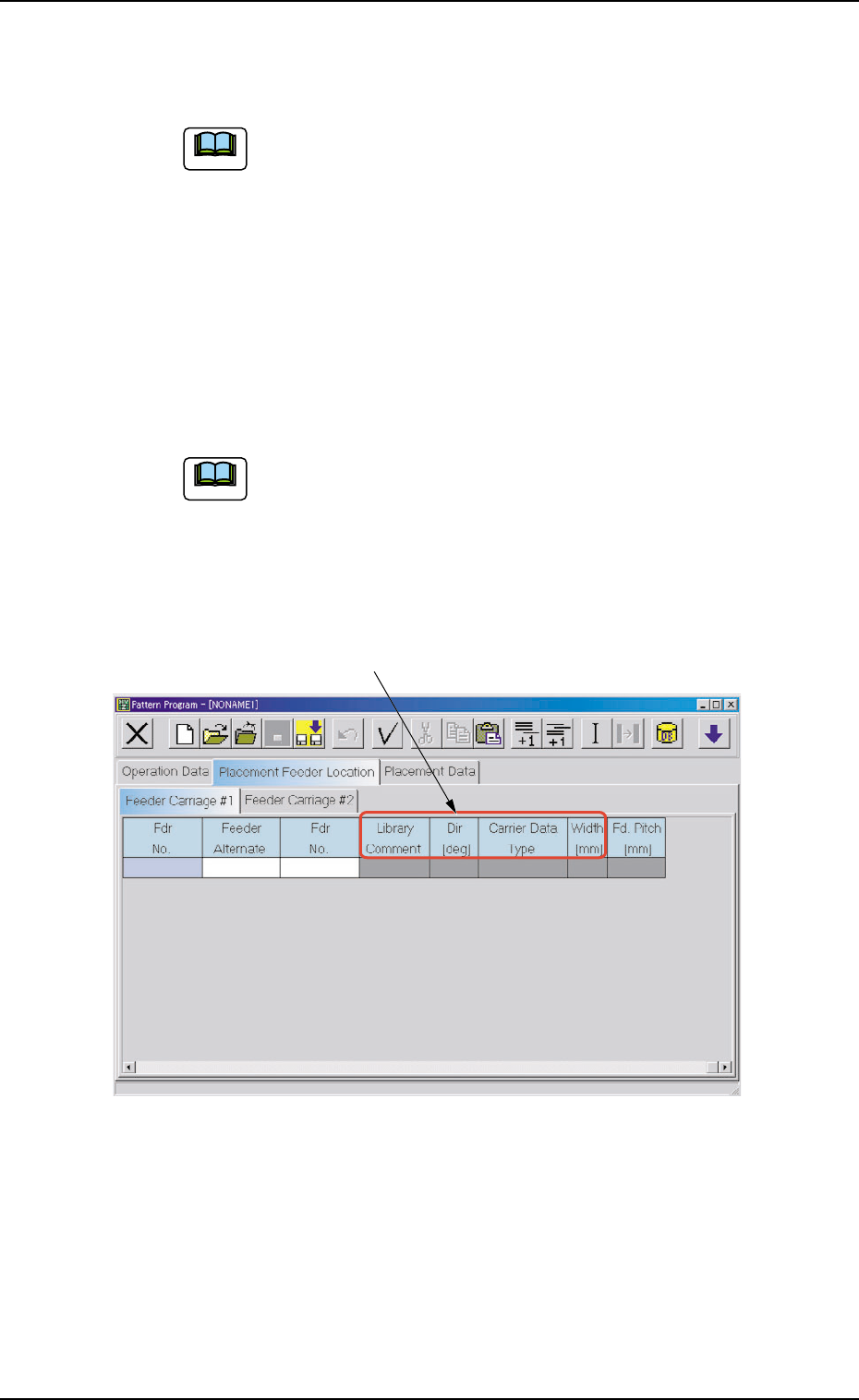

Fig. 3B160 "Feeder Carriage #1" Tab Sheet

*5 Library Comment, Dir [deg], Carrier Data Type, and Width [mm]

Displayed are the parameters specified in the component library.

4.3 "Placement Feeder Location" Tab

051 1-002 2-98 AIL01EDTP

Note

• Operation Procedure

Fig. 3B161 Menu for Editing

Addition of "Fdr No."

(1) Select [Add Line] icon on the menu.

A new "Fdr No." is added to the last line (last Fdr No.).

Insertion of "Fdr No."

(1) Select the position where a Fdr. No. should be inserted with the

touch screen or the pointing device.

The selected line (Fdr. No.) turns blue, indicating that it is selected.

(2) Select [Insert Line] icon on the menu.

A new line (Fdr No.) is inserted at the selected line and the subse-

quent lines (Fdr Nos.) are shifted down.

Deletion of "Fdr No."

(1) Select the Fdr. No. to be deleted with the touch screen or the point-

ing device.

The selected line (Fdr. No.) turns blue, indicating that it is selected.

(2) Select "Delete" on the menu.

The selected line (Fdr No.) is deleted and the subsequent lines (Fdr

Nos.) are shifted up.

Do not set any parameters for the feeder carriages that are not

used.

Otherwise, a data error occurs. If parameters are set, be sure

to delete them.

[Add Line] Icon

[Cut] Icon

[Insert Line] Icon

4.3 "Placement Feeder Location" Tab

051 1-002 2-99 AIL01EDTP

Note

Transfer of Fdr. No.

(1) Select the Fdr. No. to be transferred with the touch screen or the

pointing device.

The selected line (Fdr. No.) turns blue, indicating that it is selected.

(2) Select the "Move the selected step data" icon.

Fig. 3B162

(3) Press the [OK] button and specify the destination step.

Fig. 3B163

4.3 "Placement Feeder Location" Tab

051 1-002 2-100 AIL01EDTP

"Move the selected step data" Icon
