(3) "Head Center Offset" T ab • Sheet Layout When the "Head Center Offset" tab is pressed in the "Head" tab sheet, the following tab sheet appears. Fig. 3E23 "Head Center Offset" T…
(2) "Head Offset" Tab
• Sheet Layout
When the "Head Offset" tab is pressed in the "Head" tab sheet, the
following tab sheet appears.

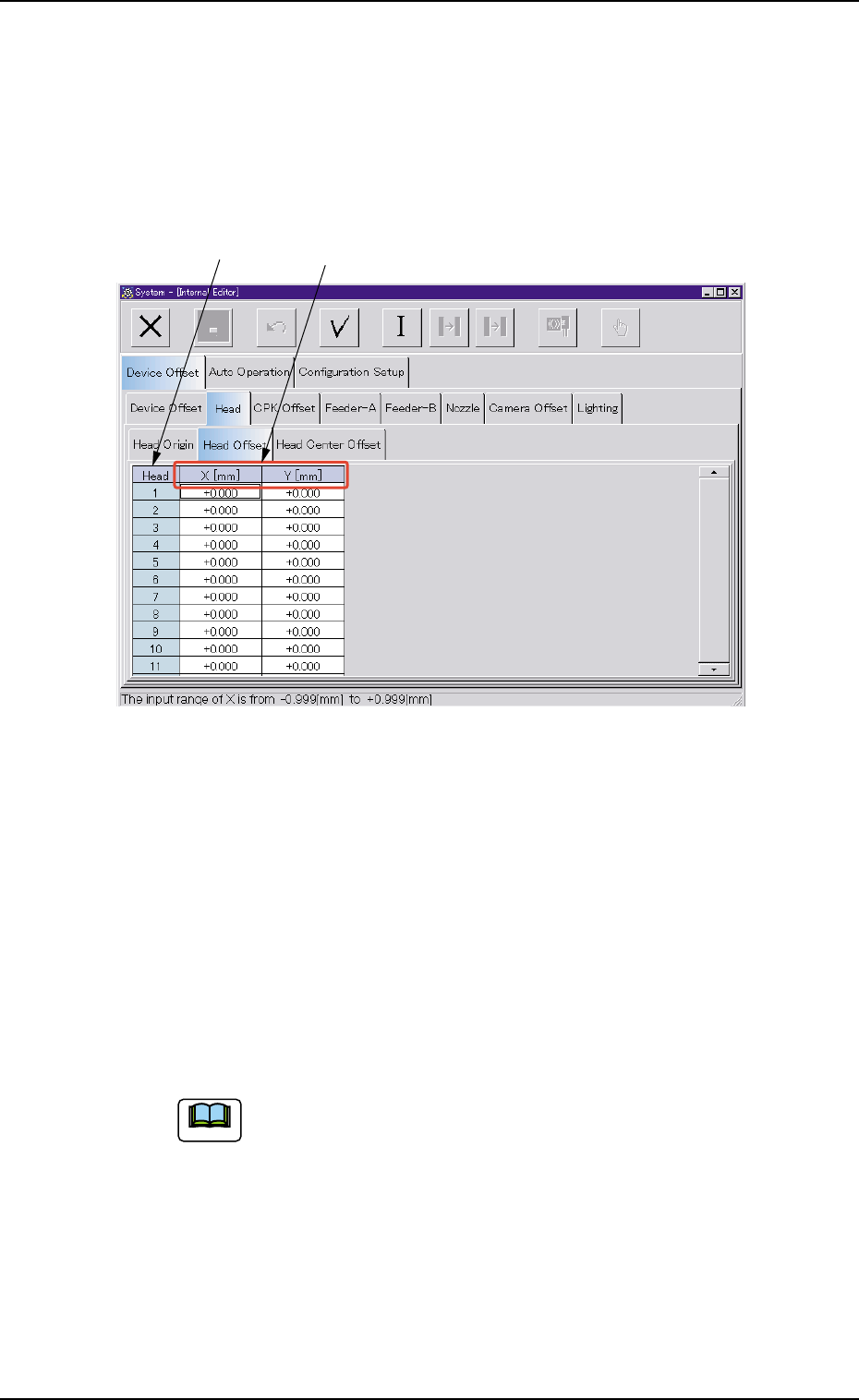

Fig. 3E22 "Head Offset" Tab Sheet
• Sheet Composition
*1 Head
The head Nos. are displayed.
*2 X [mm], Y [mm]
This is the offset data for positional adjustment based on the #1
head position and used when a head other than the #1 head is at-
tached.
(a) It is not necessary to enter any parameter for the #1
head because it is selected as the reference head.
Note: The entered parameters are reflected as offset
values.
Use this function to adjust the head positions after
checking how components are placed.
(b) These parameters are used to correct positional de-
viations between heads caused by each head up/down
guide.
0305-001 5-21
AIL01EDTP
3.2 "Device Offset" Tab
*1 *2
Note
(3) "Head Center Offset" Tab
• Sheet Layout
When the "Head Center Offset" tab is pressed in the "Head" tab sheet,
the following tab sheet appears.

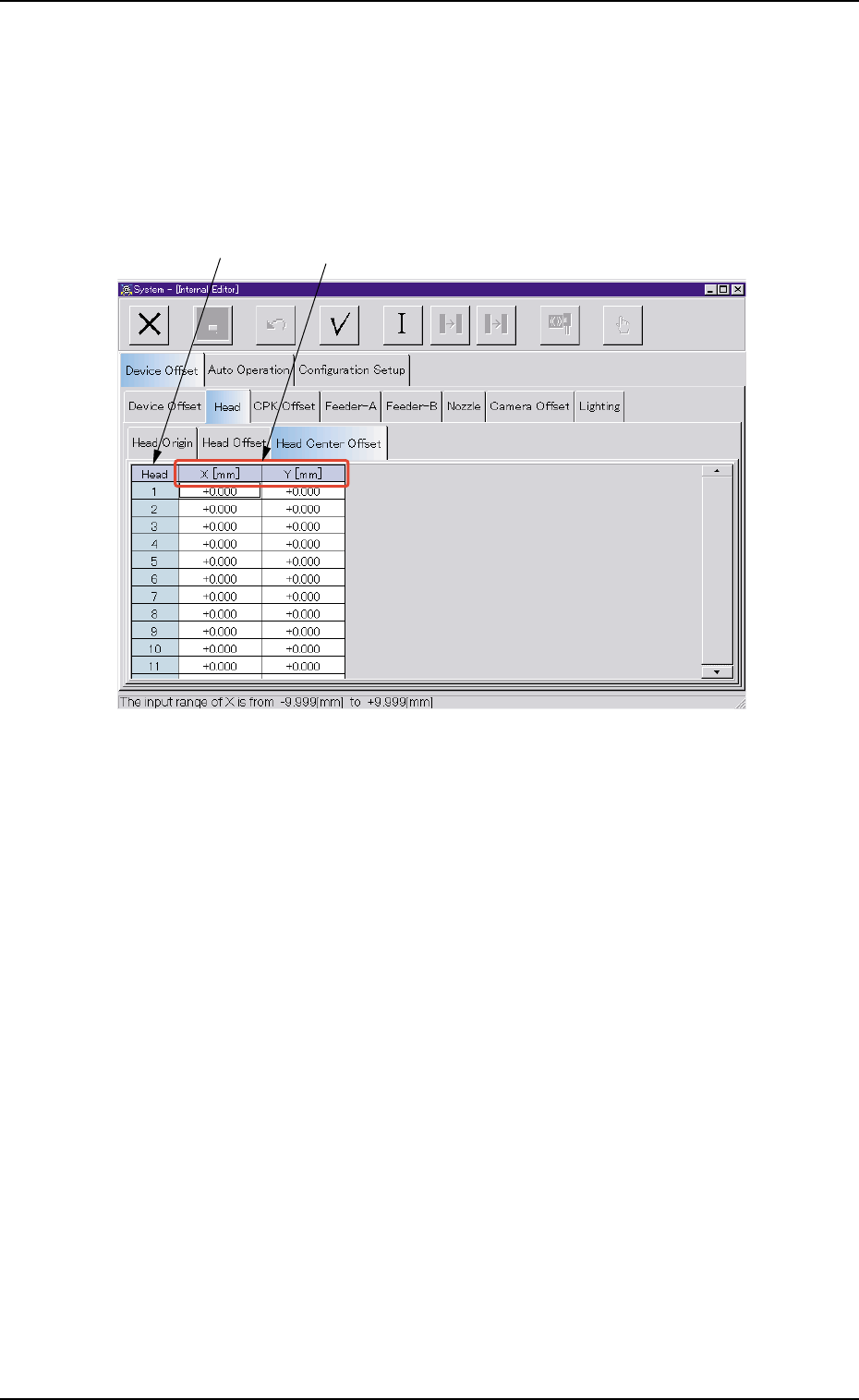

Fig. 3E23 "Head Center Offset" Tab Sheet
• Sheet Composition
*1 Head
The head Nos. are displayed.
*1 *2
3.2 "Device Offset" Tab
0305-001 5-22 AIL01EDTP
*2 X [mm], Y [mm]
This is the offset data for the head rotational center based on the
component recognition camera (Camera #1: high magnification)
center of each head.
Each head rotational center position is managed at Station #3 (Com-
ponent Recognition) and plus and/or minus values are automati-
cally entered on the basis of the design values (X = 7.500 mm, Y =
0.000 mm).
(a) These offset values are automatically calculated through
teaching operation.
(b) These offset values are used for calculation of place-
ment position correction at component placement.

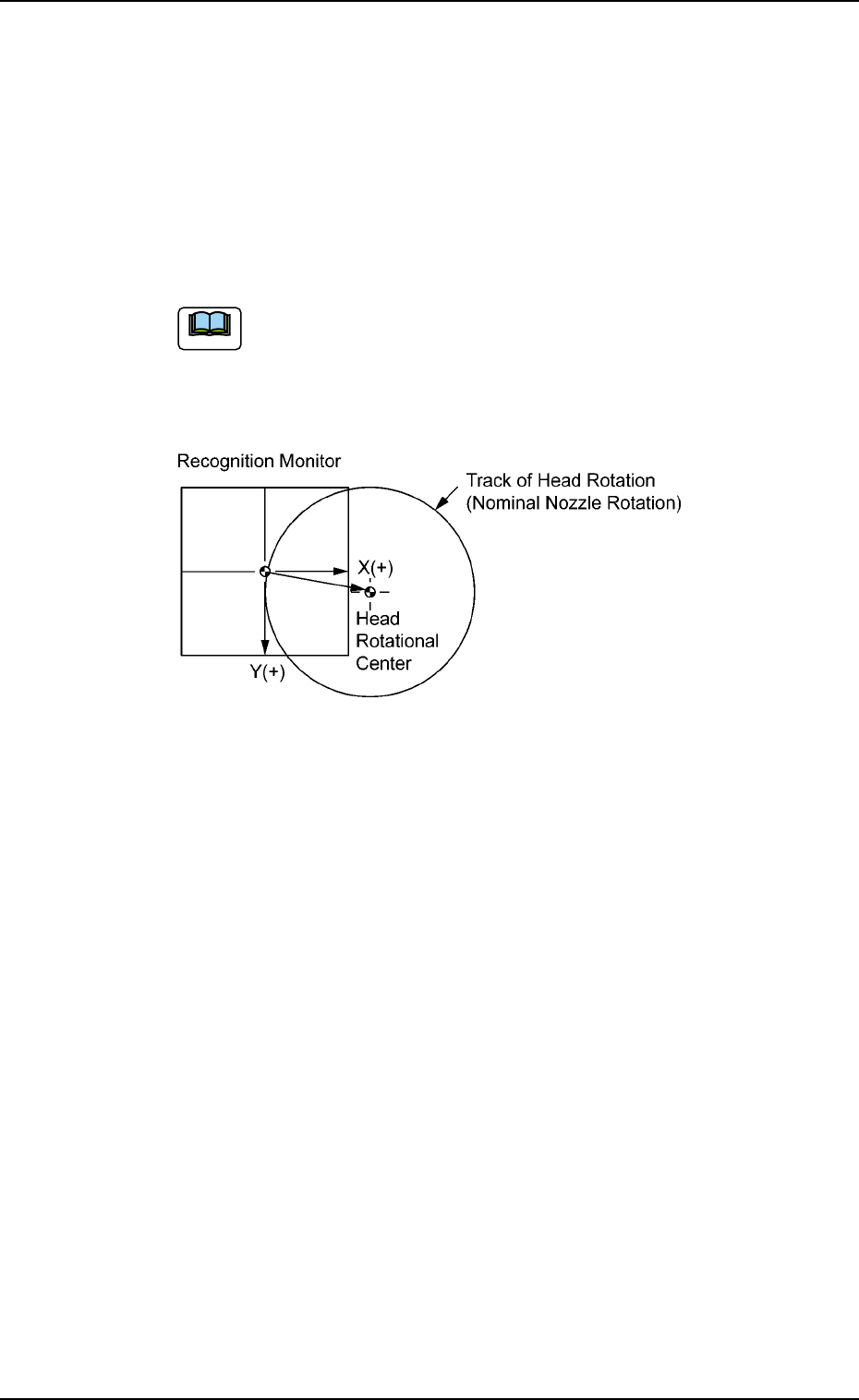

Fig. 3E24
0305-001 5-23
AIL01EDTP
3.2 "Device Offset" Tab
Note
