4.2 "Nozzle Data" Tab

0305-001 5-72 AIL01EDTP

How to change the nozzle type

(1) Select the nozzle data to be changed.

(2) Press the [Property] button.

The "Nozzle Type Property" window opens.

(3) Change the data.

(4) Press the [OK] button.

The nozzle data is newly added.

When the [Cancel] button is pressed in the "Nozzle Type

Property" window, the window closes without newly add-

ing or modifying the data.

Note

5. "MACH SETUP" Window

• Window Layout

When the [SYSTEM] button on the main menu bar is pressed, the "SYS

SEL" menu opens. When the [MACH SETUP] button is selected, the

following window opens.

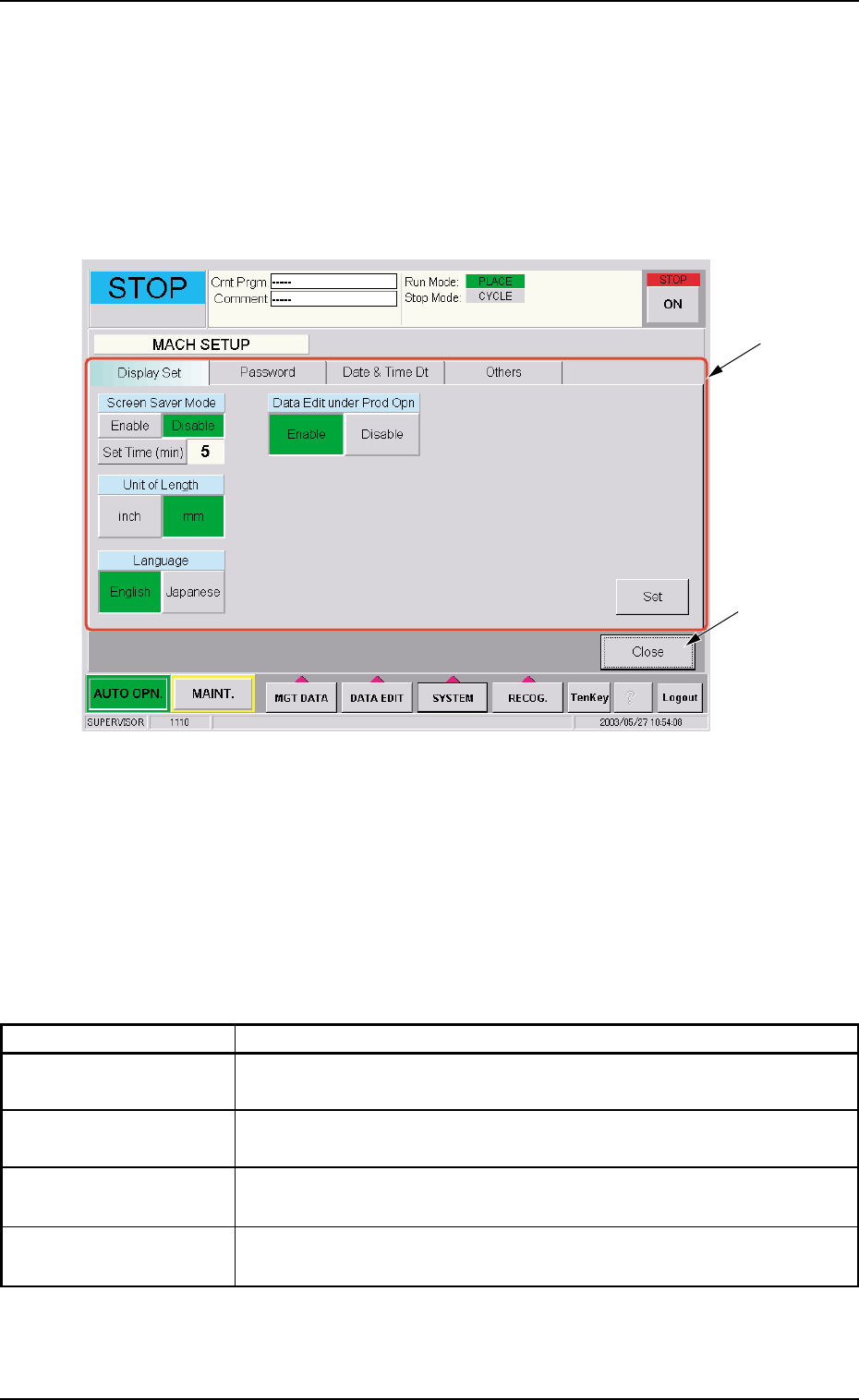

Fig. 3E60 "MACH SETUP" Window

• Window Composition

*1 Tabs and Tab Sheets

The "MACH SETUP" window is provided with the following 4 tab

sheets. When a tab is pressed, the corresponding tab sheet ap-

pears inside the window.

Table 3E3

Tabs Description

Display Set The corresponding tab sheet enables the operator to set the screen

saver function and specify the unit of length and a language.

Password The corresponding tab sheet enables the operator to set a password

and the scope of authority according to the given authority.

Date & Time Dt The corresponding tab sheet enables the operator to set the system

clock and time zone of the machine.

Others The corresponding tab sheet enables the operator to connect the

computer system of the machine to the local network.

*2 [Close] Button

When this button is pressed, the "MACH SETUP" window closes.

5 "MACH SETUP" Window

0305-001 5-73 AIL01EDTP

5.1 "Display Set" Tab

The corresponding tab sheet enables the operator to set the screen

saver function and specify the unit of length and a language.

• Sheet Layout

When the "Display Set" tab is pressed in the "MACH SETUP" window,

the following tab sheet appears.

Fig. 3E61 "Display Set" Tab Sheet

• Sheet Composition

*1 Screen Saver Mode

When the touch screen is kept intact for the specified period of time,

the screen saver mode starts working to prevent a static background

from being burned into the screen phosphors.

(1) Press the [Enable] button to validate the screen saver mode.

Press the [Disable] button to cancel the screen saver mode.

5.1 "Display Set" Tab
