4.1.3 Basic Usage of T ext Boxes • How to enter numerical values Follow the procedure below to enter numerical values in the text boxes that require numerical values. Using the "T enkey" window (1) Press the [T…
051 1-002 2-84-1
*4 Drop-Down List
When you double-click a text box, the text box is changed to a combo
box that has a down arrow on the right side.
When you click the down arrow, a drop-down list box opens.
Set a parameter by selecting one of the options in the drop-down list
box.
A scrollbar might appear on the right side of a drop-down
list when there are many options.
*5 Scrollbars
When the up arrow (
) is pressed, the window scrolls up.
When the down arrow (
) is pressed, the window scrolls down.
When the left arrow (
) is pressed, the window scrolls left.
When the right arrow (
) is pressed, the window scrolls right.
Note
4.1 Basic Operation
4.1.3 Basic Usage of Text Boxes
• How to enter numerical values
Follow the procedure below to enter numerical values in the text boxes
that require numerical values.

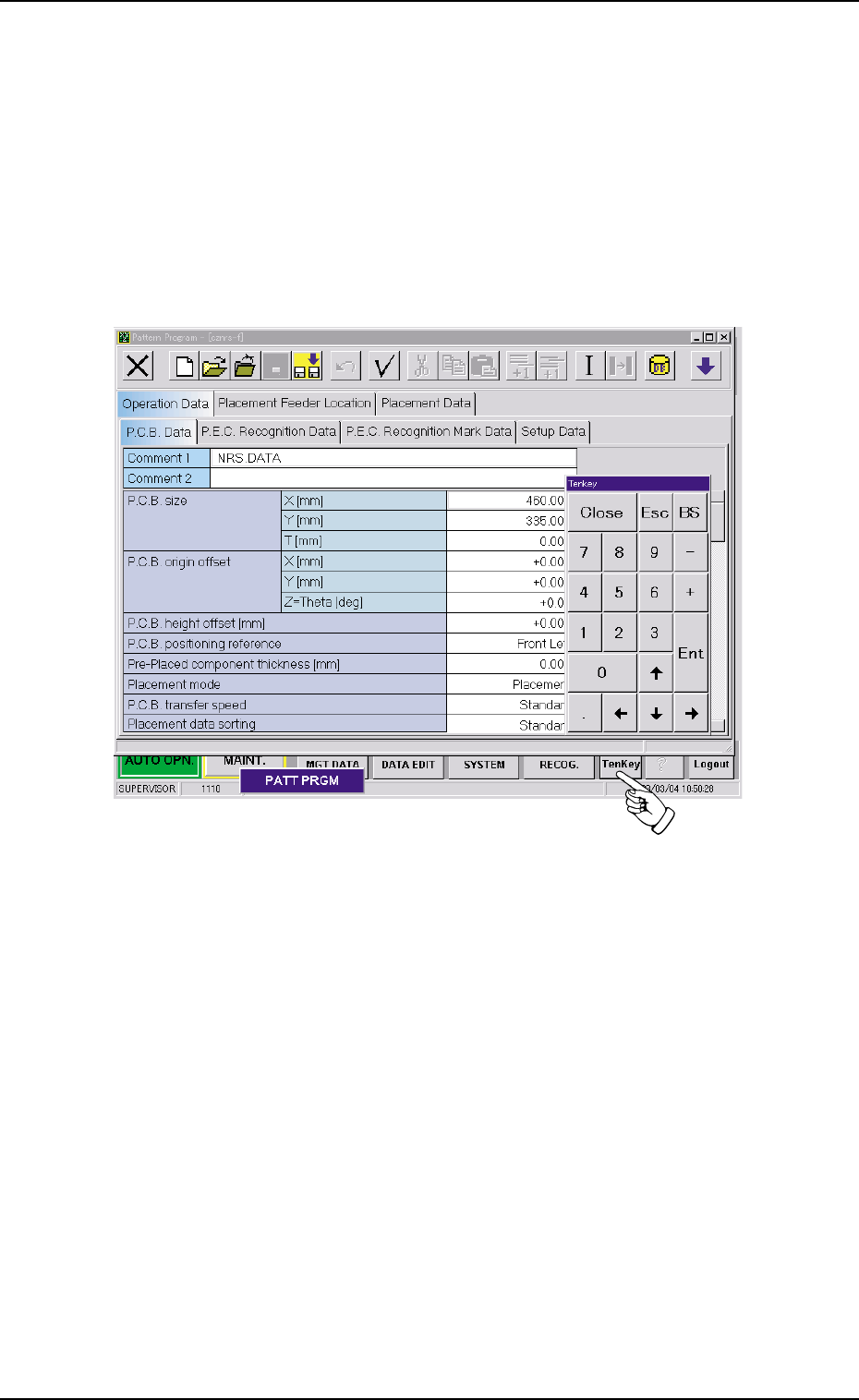

Using the "Tenkey" window
(1) Press the [TenKey] button on the main menu bar. The "Tenkey" win-
dow appears.
Fig. 3B139
4.1 Basic Operation
0305-001 2-85 AIL01EDTP

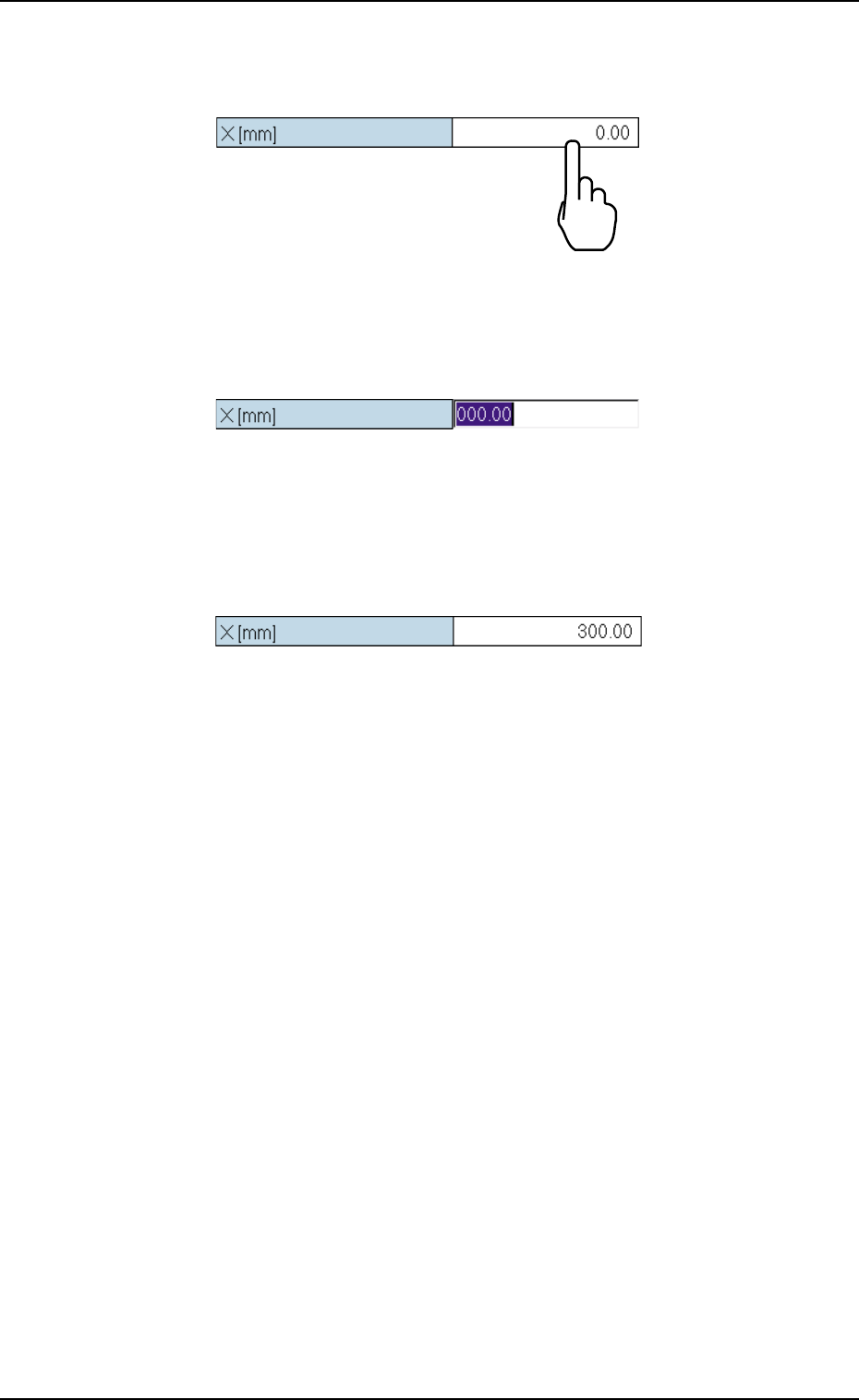

(2) To enter a parameter, press the text box quickly twice.
Or, double-click the text box with the pointing device.
Fig. 3B140
The text box is set ready for data entry.
Fig. 3B141
(3) When a parameter is entered, using the "Tenkey" window and the
[Ent] button is pressed, it is set in the text box.
Fig. 3B142
4.1 Basic Operation
0305-001 2-86 AIL01EDTP
