2.2 "Patt. Prgm Manage. Dt." Tab
The corresponding tab sheet enables the operator to view the summed
pattern program management data related to each individual pattern
programs.
• Sheet Layout
When the "Patt. Prgm Manage. Dt." tab is pressed in the "Management
Data" window, the following tab sheet appears.

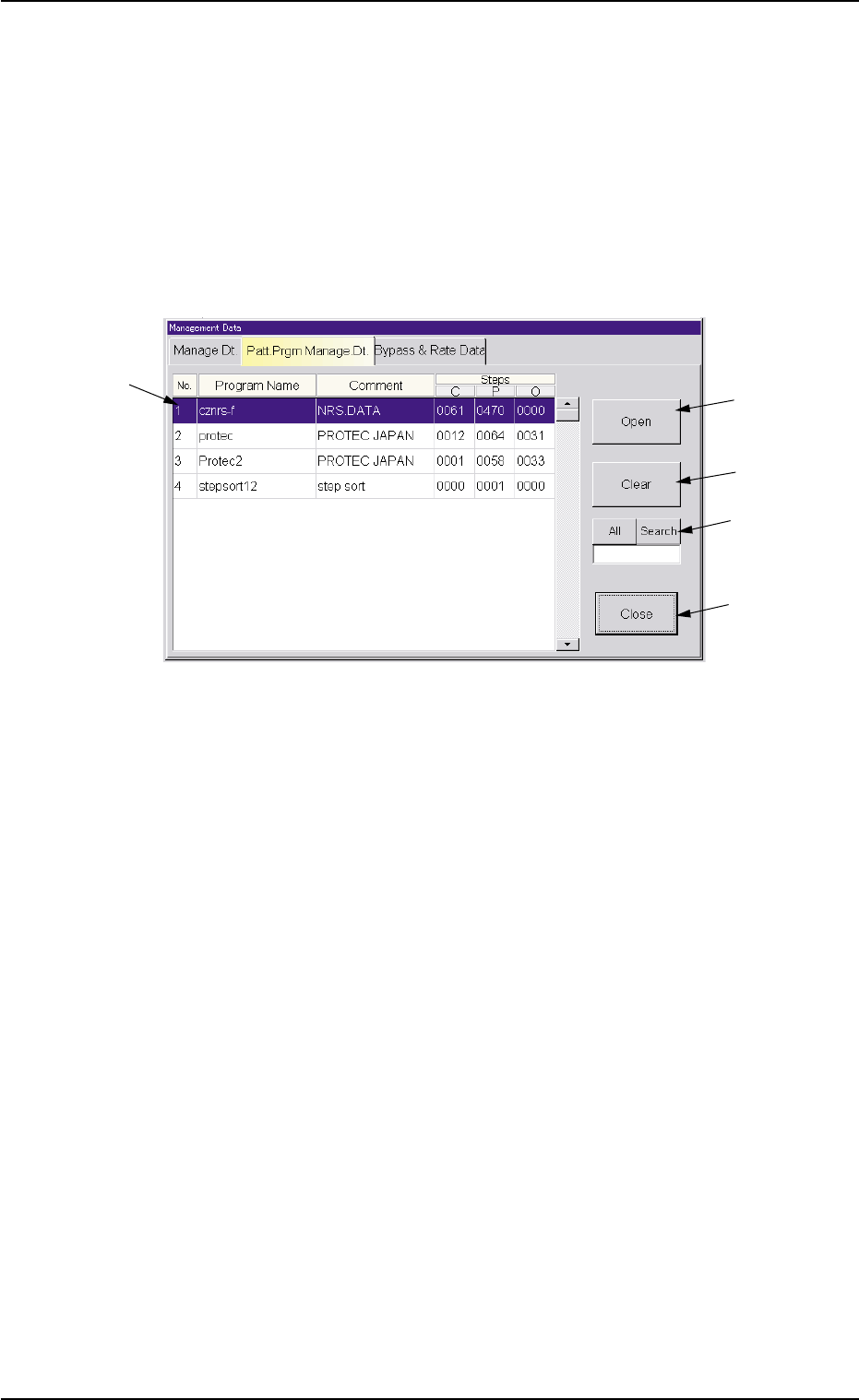

Fig. 3D3 "Patt. Prgm Manage. Dt." Tab Sheet
• Sheet Composition
*1 List of Model Names
Listed are the registered model names (pattern program names).
*2 [Open] Button
When this button is pressed after a pattern program (model) is se-
lected from the list of model names (*1), the "Pattern Program Man-
agement Data" window opens, enabling you to view the pattern pro-
gram management data.
Refer to "4. "Pattern Program Management Data" Window" for de-
tails.
*3 [Clear] Button
When this is pressed after a pattern program (model) to be deleted
is selected from the list of model names (*1), the management data
of the selected pattern program is deleted and the clear date is up-
dated.
2.2 "Patt. Prgm Manage. Dt." Tab
*3
*2
*5
*1
*4
0305-001 4-6 AIL01EDTP
0305-001 4-7 AIL01EDTP
2.2 "Patt. Prgm Manage. Dt." Tab
*4 [All] and [Search] Buttons
When pressed, this button makes it possible to search a program
name.
Enter characters in the text box under the [All] and [Search] button
and press the [Search] button. The program names which start with
the entered characters are displayed in the "Program Name"pane.
"*" (asterisk) and "?" (question mark) can be used as wild
cards.
abc* : The search function retrieves the program names
which start with "abc"
a?c : The search function retrieves the program names
which start with "a" and contain "c" as the third char-
acter.
When the [All] button is pressed, all program names appear.
*5 [Close] Button
When this button is pressed, the "Management Data" window closes.
Note
2.3 "Comp. Handling Err. Rate Dt." Tab
The corresponding tab sheet enables the operator to check the pick-up
rate calculated for each feeder or nozzle and based on each pick-up
rate specified in the auto operation setup data.
Refer to "3.3.1 "Auto Operation Setup" Tab" in "Section 5" for
the auto operation setup data.
• Sheet Layout
When the "Comp. Handling Err. Rate Dt." tab in the "Management Data"
window is pressed, the following tab sheet appears inside the window.

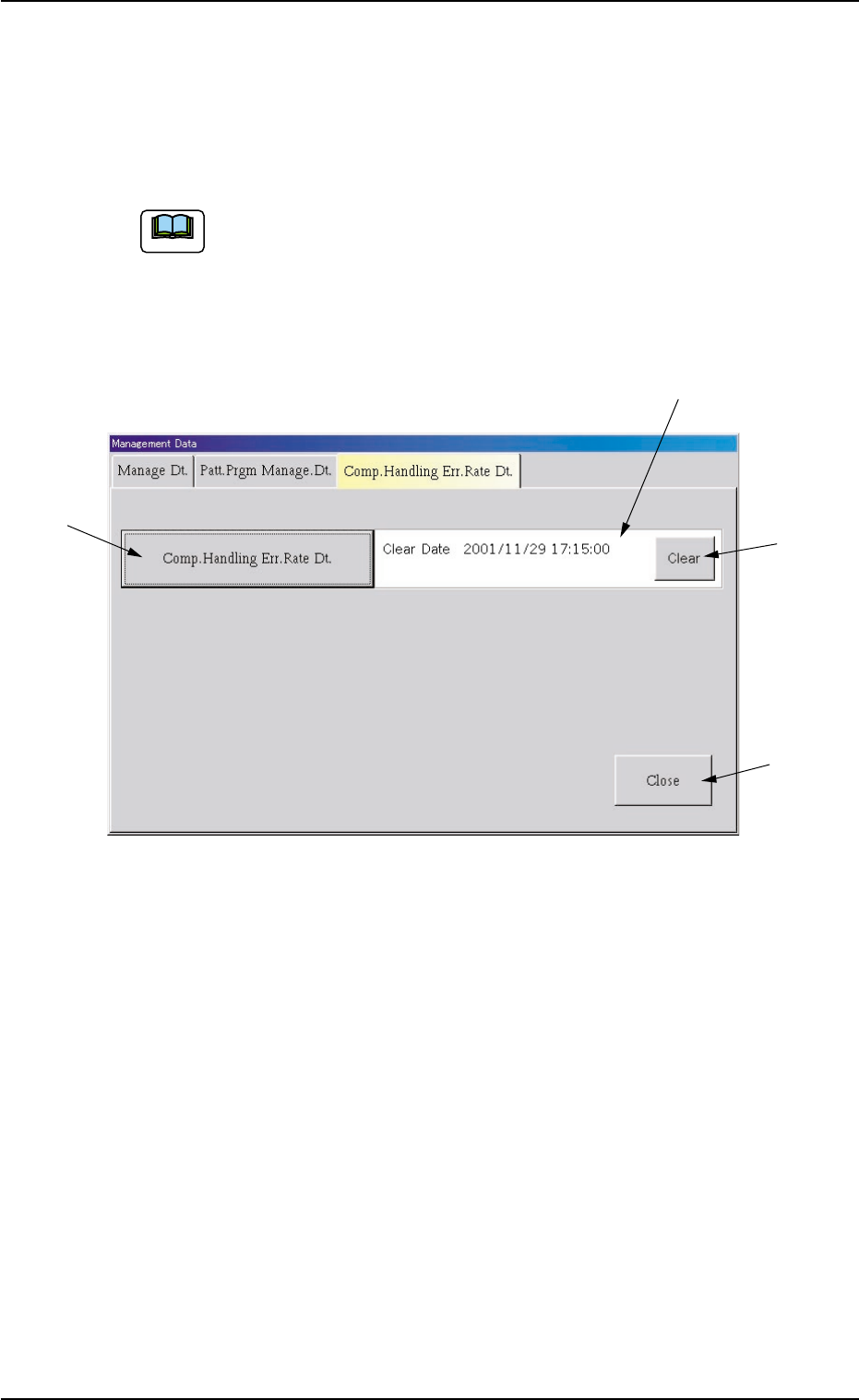

Fig. 3D4 "Comp. Handling Err. Rate Dt." Tab Sheet
• Sheet Composition
*1 [Comp. Handling Err. Rate Dt.] Button
When this button is pressed, the "Bypass & Rate Data - [Bypass]"
window opens.
Refer to "5. "Bypass & Rate Data" Window" for details.
*2 Clear Date and Comment
This pane displays the clear date & time and the comment of the
component handling error rate data.
*3 [Clear] Button
When this button is pressed, the component handling error rate data
is all cleared and the clear data & time is updated.
*4 [Close] Button
When this button is pressed, the "Management Data" window closes.
2.3 "Comp. Handling Err. Rate Dt." Tab
*3
*4
*2
*1
