(C02) Placement Data (P-data)

(C02_01) Unit Control

Select one of the following options to determine whether the selected

placement data (U01, U02, ..... Un) should be used.

In normal cases, select "Placement".

Placement : The placement data of the selected unit (group) be-

comes valid.

Bypass : The placement data of the selected unit (group) be-

comes invalid.

Offset X [mm] and Offset Y [mm]

Set the offset values for all placement coordinates X and Y and the

recognition coordinates of the unit P.C.B. in the placement data (P-

data).

Unit: mm

(a) Use "000.000" (zero) in normal cases.

(b) Note that these offset values do not give any effect to the

coordinates (X [mm] and Y [mm]) of "(A02_02) P.E.C.

recognition mode global".

Offset Z

Set the offset value for all placement angles (Z=Theta) in the place-

ment data (P-data).

Unit: degree

Use "000.00" (zero) in normal cases.

2.5 Placement Data

0305-001 2-44 AIL01EDTP

Placement

Unit Control

Fig. 3B87

Fig. 3B88

Offset X [mm]

Offset Y [mm]

+000.000

Fig. 3B89

+000.00

Offset Z [deg]

Note

(C02_02) Unit P.C.B. B.B.R.

Select one of the following options to determine whether or not the unit

P.C.B. B.B.R. function should be used.

Disable : The unit P.C.B. B.B.R. function is not used.

Enable : The unit P.C.B. B.B.R. function (2-point recognition) is

used.

• When "Enable" is set, the recognition coordinates differ as shown

in below (1) and (2) according to the parameter set in the "P.E.C.

recognition mode image" text box (described in (A02_01) P.E.C. rec-

ognition function). Refer to "(A02) P.E.C. Recognition Data" in "2.3

Operation Data (A02)".

Options for Image Recognition Mode

(1) "Enable" (Normal Image Recognition Mode)

(2) "U-N" in "P.E.C. recognition mode image" Text Box

(1) The following is based on the parameter "Enable" (Normal Image Rec-

ognition Mode).

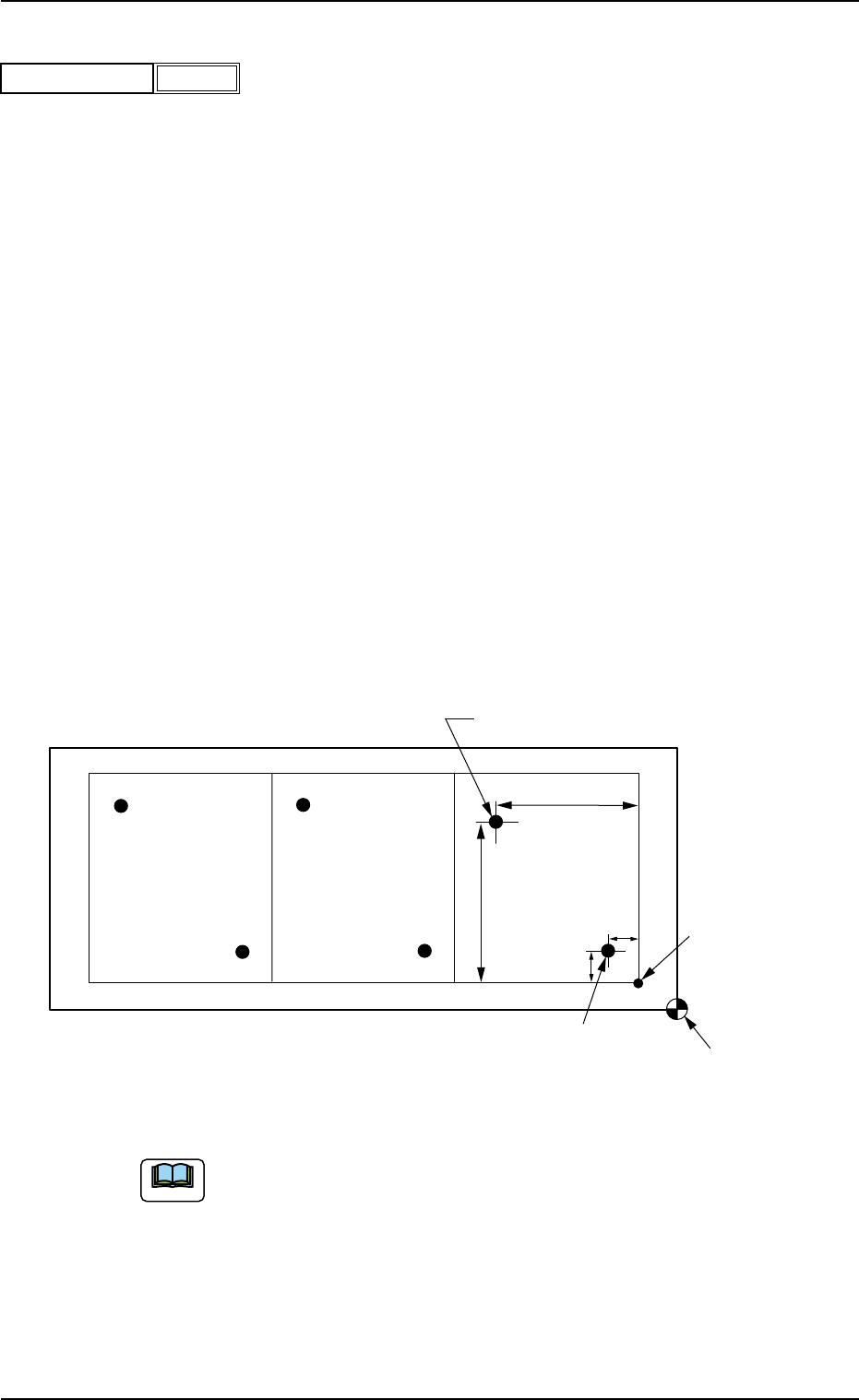

Fig. 3B91 Example of Unit P.C.B. B.B.R. Recognition

(a) Refer to "2. Various Functions" (Section 2) in "Volume 2: Operation

(Supervisor)" for details.

(b) The pattern origin (coordinates) must be located inside the place-

ment coordinate reference point (coordinates).

the unit P.C.B. B.B.R. recognition function.

Placement Coordinate Reference Point

Pattern Origin

Second Fiducial Mark

First Fiducial Mark

2.5 Placement Data

0305-001 2-45 AIL01EDTP

Enable

Unit P.C.B. B.B.R.

Fig. 3B90

Note

Recog Coord X1 [mm] and Recog Coord Y1 [mm]

Set the X1 and Y1 coordinates of the first fiducial mark based on the

pattern origin.

Unit: mm

Recog Coord X2 [mm] and Recog Coord Y2 [mm]

Set the X2 and Y2 coordinates of the second fiducial mark based on

the pattern origin.

Unit: mm

Fiducial Mark FM1 and Fiducial Mark FM2

Set the mark Nos. of the first and second fiducial marks FM1 and FM2.

Select the mark Nos. (Mark #) specified in the P.C.B. recognition mark

data of the operation data.

Recog Coord X1 [mm]

Recog Coord Y1 [mm]

010.000

Fig. 3B92

Fig. 3B93

Recog Coord X2 [mm]

Recog Coord Y2 [mm]

100.000

0305-001 2-46 AIL01EDTP

Fig. 3B94

Fiducial Mark FM1

Fiducial Mark FM2

2.5 Placement Data
