*2 Recording Date & Time

Displayed are the recording date & time and the machine name

related to the bypass & rate data.

*3 Tabs and Tab Sheets

The "Bypass & Rate Data" window is provided with the following

four tab sheets. When a tab is pressed, the corresponding tab sheet

appears inside the window.

Table 3D6

Tabs Description

Head Nozzle Bypass The rotary turret (heads and nozzles) is displayed graphically on the

Data left side of the tab sheet.

When a head (nozzles) is selected on the graphical rotary turret, the

bypass factors are displayed on the right side of the tab sheet.

Feeder Message Rate This tab sheet is provided with two tab sheets - "Feeder Carriage #1"

and "Feeder Carriage #2" tab sheets. Each tab sheet displays the

pick-up rate, the feeder message rate, and the component ID that

are classified by each warning factor on individual feeders (actual

feeders).

Nozzle Message Rate The corresponding tab sheet displays the pick-up rate and the nozzle

message rate classified by each warning factor on the individual heads

and nozzles.

See Fig. 3D23.

Nozzle Bypass Rate The corresponding tab sheet displays the pick-up rate and the nozzle

bypass rate classified by each nozzle bypass rate on the individual

heads and nozzles.

5. "Bypass & Rate Data" Window

0305-001 4-44 AIL01EDTP

5.1 "Head Nozzle Bypass Data" Tab

The corresponding tab sheet displays the bypass factors of the heads

or the nozzles.

• Sheet Layout

When the "Head Nozzle Bypass Data" tab is pressed in the "Bypass

& Rate Data" window, the following tab sheet appears inside the win-

dow.

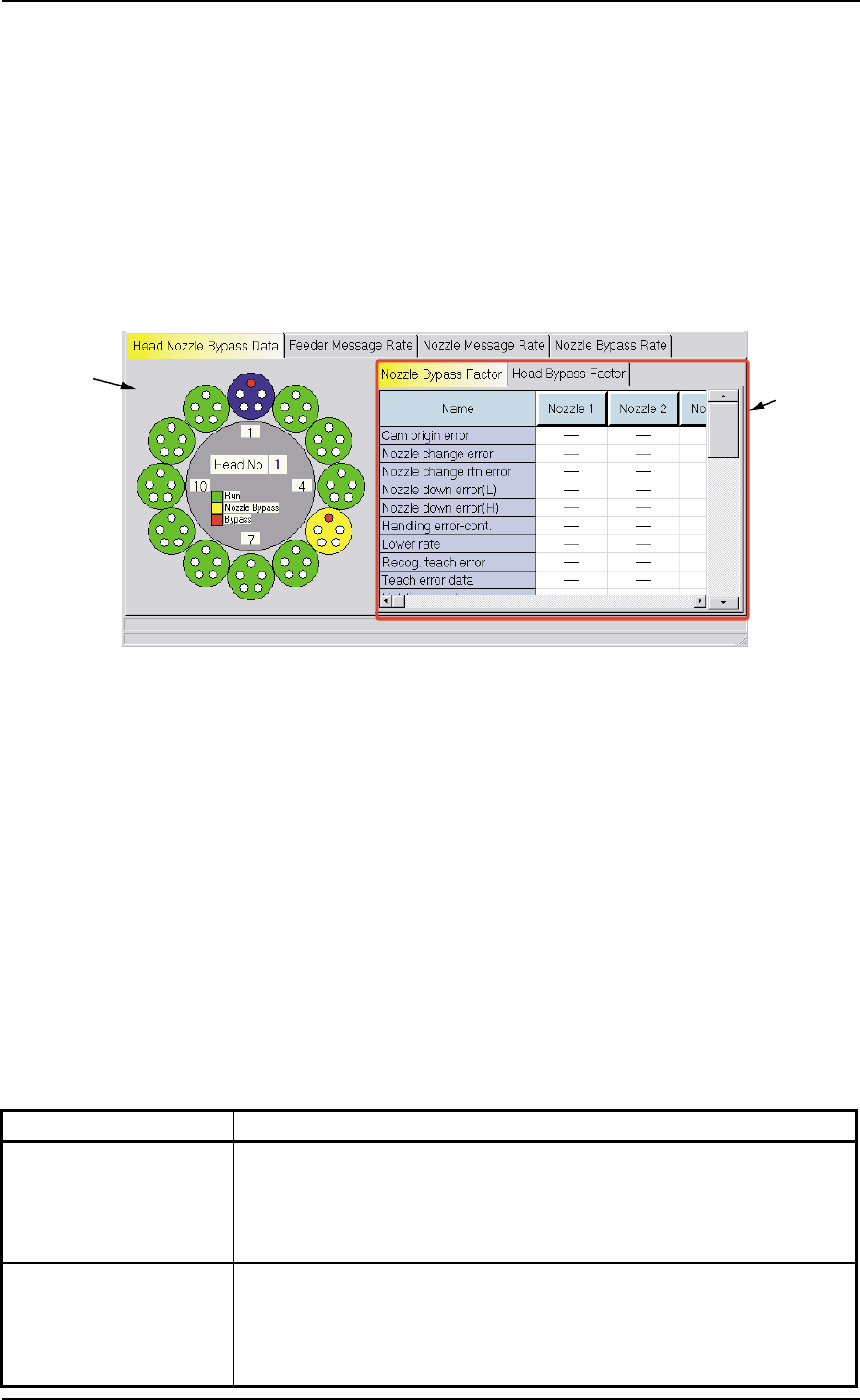

Fig. 3D20 "Head Nozzle Bypass Data" Tab Sheet

("Nozzle Bypass Factor" Tab Sheet)

• Sheet Composition

*1 Graphical Expression of Heads and Nozzles

When a head (nozzles) is selected on the graphical rotary turret,

the bypass factors are displayed on the right tab sheet.

*2 Tabs and Tab Sheets

The right side of the "Head Nozzle Bypass Data" tab sheet is occu-

pied by the following two tab sheets.

Table 3D7

Tabs Description

Nozzle Bypass Factor When this tab is selected, the nozzles are expressed graphically on

the left side and the nozzle bypass factors are indicated on the right

tab sheet.

(See Fig. 3D20.)

Head Bypass Factor When this tab is selected, the heads are expressed graphically on

the left side and the head bypass factors are indicated on the right

tab sheet.

(See Fig. 3D21.)

5.1 "Head Nozzle Bypass Data" Tab

0305-001 4-45 AIL01EDTP

• "Head Bypass Factor" Tab Sheet

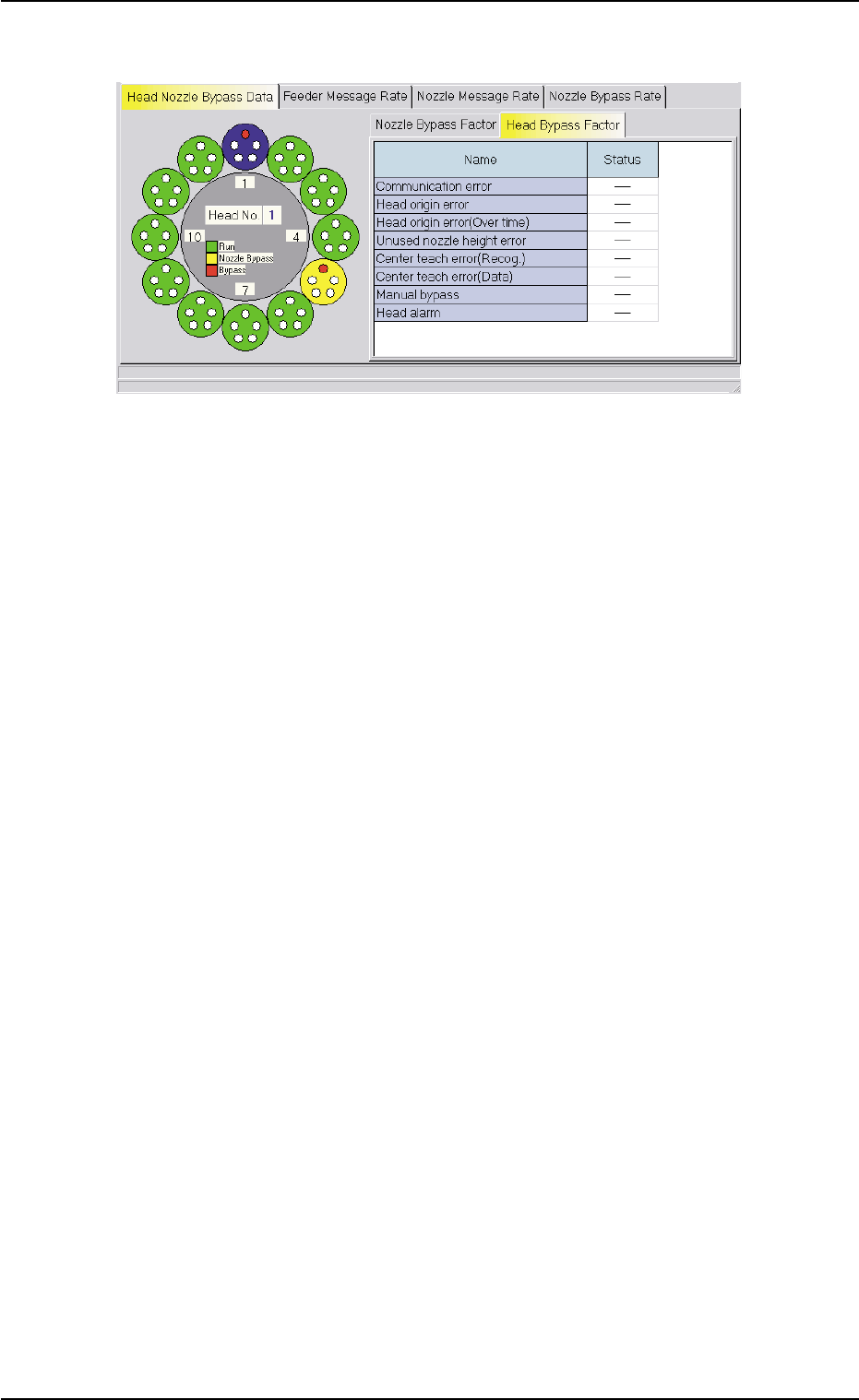

Fig. 3D21 "Head Nozzle Bypass Data" Tab Sheet

("Head Bypass Factor" Tab Sheet)

5.1 "Head Nozzle Bypass Data" Tab
