4.2.4 "Setup Data" T ab • Sheet Layout When the "Setup Data" tab is pressed in the "Operation Data" tab sheet, the following tab sheet appears. Fig. 3B158 "Setup Data" T ab Sheet •…

4.2.3. "P.E.C. Recognition Mark Data" Tab

• Sheet Layout

When the "P.E.C. Recognition Mark Data" tab is pressed in the "Op-

eration Data" tab sheet, the following tab sheet appears.

Fig. 3B157 "P.E.C. Recognition Mark Data" Tab Sheet

• Sheet Composition

Each parameter is displayed or can be entered.

Refer to "4.1.3 Basic Usage of Text Boxes" for the detailed in-

formation on how to enter parameters.

*1 Mark Type, Mark Size D1 [mm], Mark Size D2 [mm], Window

Size [mm], Mark Image, Mark Level, Recog Algo

4.2 "Operation Data" Tab

0305-001 2-95 AIL01EDTP

Note

4.2.4 "Setup Data" Tab

• Sheet Layout

When the "Setup Data" tab is pressed in the "Operation Data" tab

sheet, the following tab sheet appears.

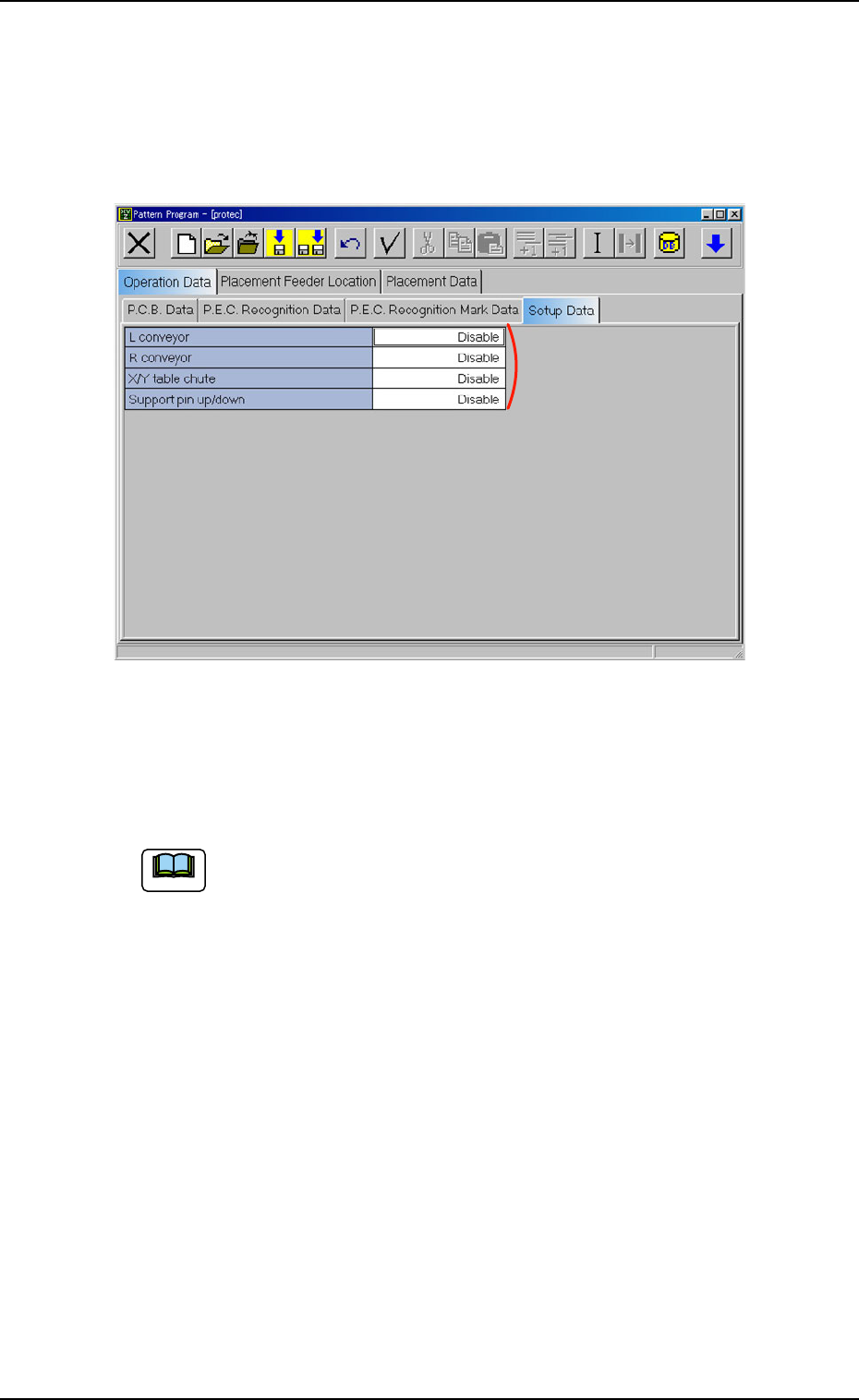

Fig. 3B158 "Setup Data" Tab Sheet

• Sheet Composition

Each parameter is displayed or can be entered.

Refer to "4.1.3 Basic Usage of Text Boxes" for the detailed in-

formation on how to enter parameters.

*1 L conveyor, R conveyor, X/Y table chute, and Support pin up/

down

4.2 "Operation Data" Tab

0305-001 2-96 AIL01EDTP

Note

4.3 "Placement Feeder Location" Tab

4.3.1 "Feeder Carriage" Tabs

• Sheet Layout

When the "Feeder Carriage #1" tab is pressed in the "Placement

Feeder Location" tab sheet, the following tab sheet appears.

Follow the same procedure to make the "Feeder Carriage #2"

visible.

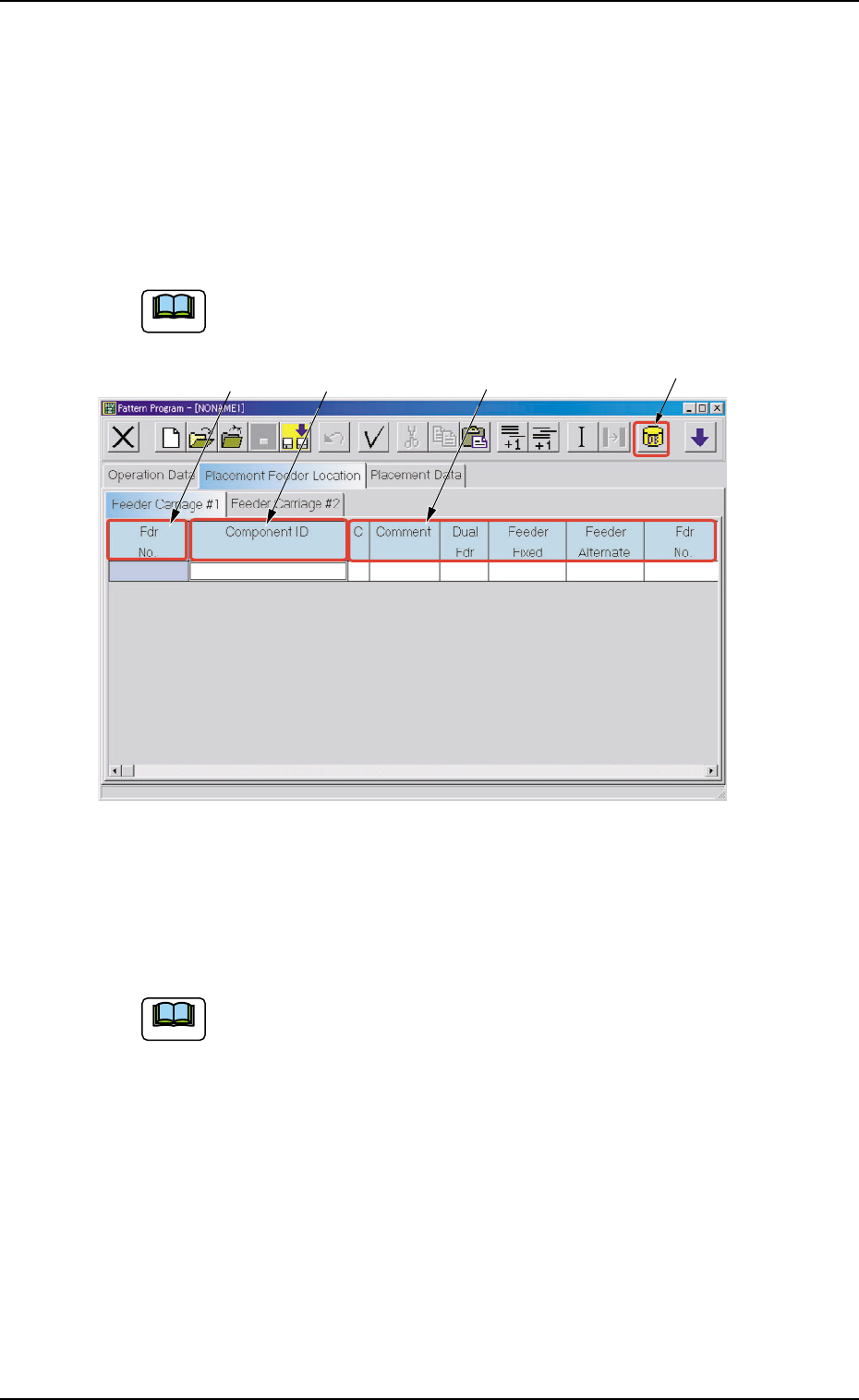

Fig. 3B159 "Feeder Carriage #1" Tab Sheet

• Sheet Composition

Each parameter is displayed or can be entered.

Refer to "4.1.3 Basic Usage of Text Boxes" for the detailed in-

formation on how to enter parameters.

*1 [Component ID List] Icon

When this icon is pressed, the "Component ID List" window opens.

This window enables you to select a component ID from the com-

ponent library and allocate it to an arbitrary feeder (Fdr. No.)

Refer to "4.3.2 "Component ID List" Window" for details.

4.3 "Placement Feeder Location" Tab

*2 *3

051 1-002 2-97 AIL01EDTP
