2.1.2 "Nozzle Data" Window

The following describes how to open the "Nozzle Data" window.

• Window Layout

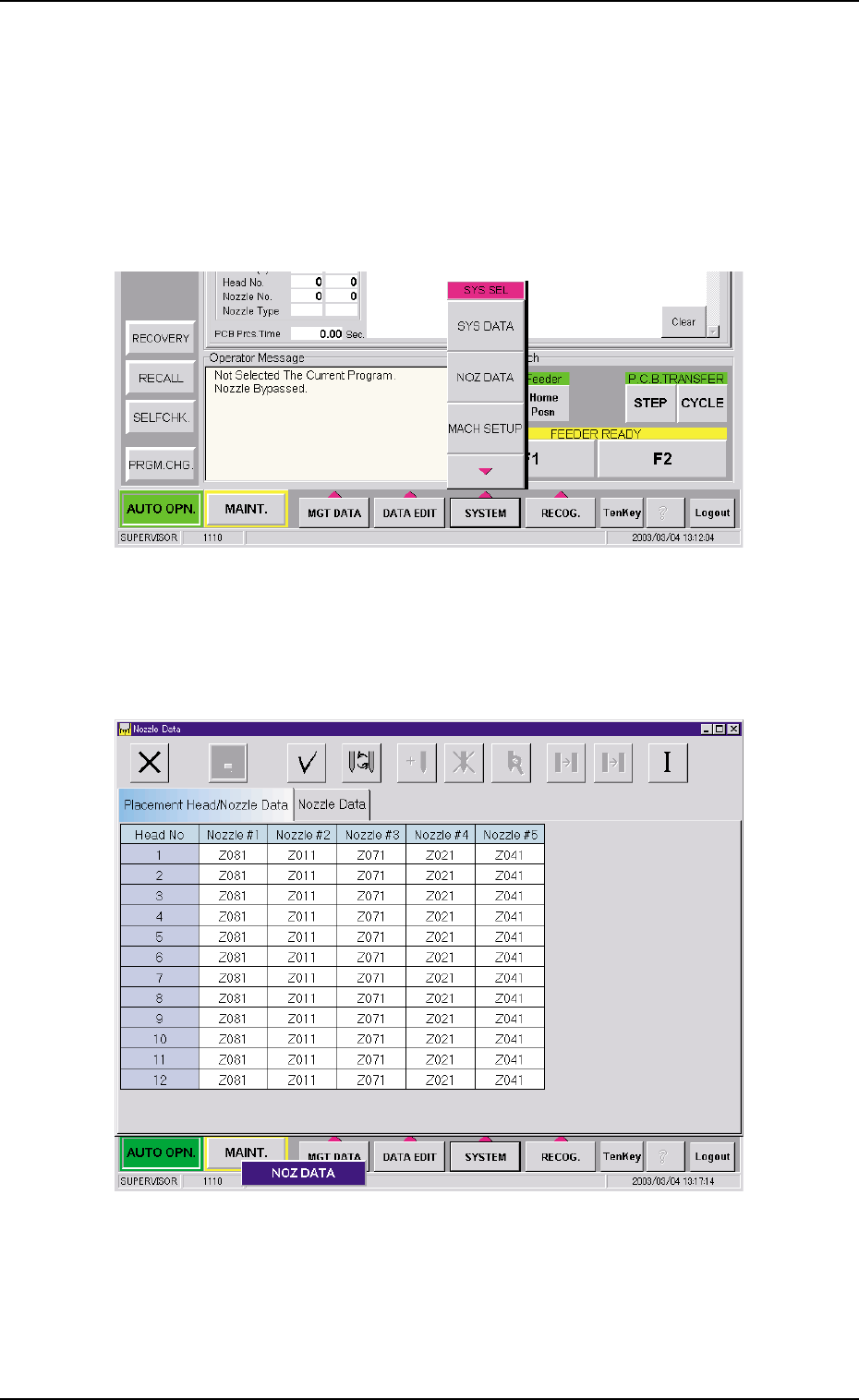

(1) Press the [SYSTEM] button on the main menu bar. The "SYS SEL"

menu opens.

Fig. 3E5

(2) Press the [NOZ DATA] button.

The "Nozzle Data" window opens.

Fig. 3E6 "Nozzle Data" Window

0305-001 5-6

AIL01EDTP

2.1 Display of Each Window

• Composition of "Nozzle Data" Window

Fig. 3E7 "Nozzle Data" Window

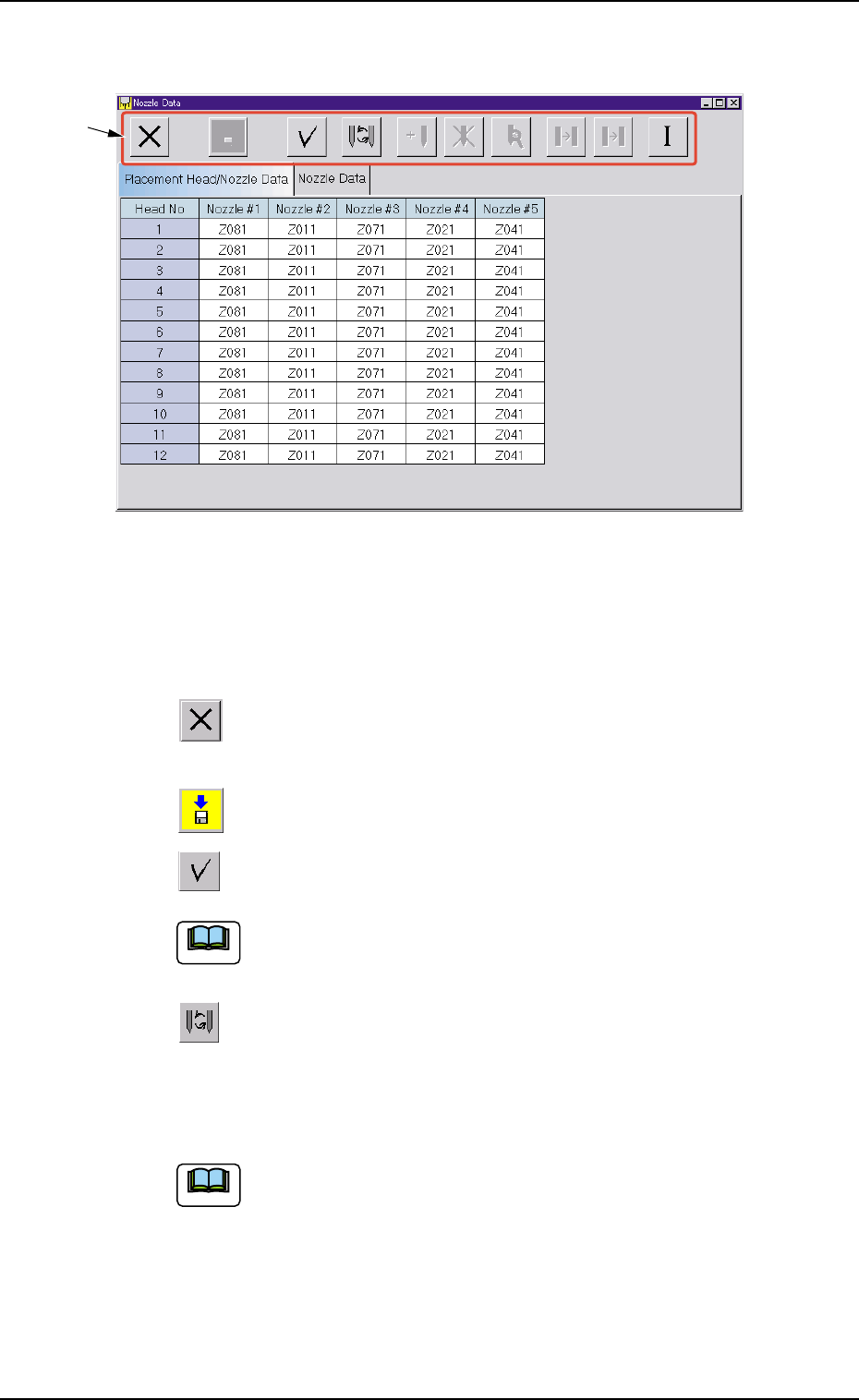

*1 Icons

The following functions can be executed.

: When pressed, this icon closes the "Nozzle Data" win-

dow.

: When pressed, this icon saves the entered parameters.

: When pressed, this icon checks the entered parameters.

When an error is found, an error message box opens.

: When pressed, this icon opens the "Nozzle Type" win-

dow.

This window enables you to change the currently selected

nozzle type to another one.

(a) Double-clicking a text box also opens the "Nozzle

Type" window.

(b) Clicking a "Nozzle #" label (title) selects the nozzle

Nos. on all heads at a time.

0305-001 5-7

AIL01EDTP

2.1 Display of Each Window

Note

: When pressed, the "Nozzle Type Property" window opens,

enabling the operator to add a new nozzle type.

This function is available only in the "Nozzle Data" tab sheet.

: When pressed, this button deletes the selected nozzle

type.

This function is available only in the "Nozzle Data" tab sheet.

: When pressed, this button opens the "Nozzle Type Prop-

erty" window for the selected nozzle type, enabling the

operator to change the nozzle type.

This function is available only in the "Nozzle Data" tab sheet.

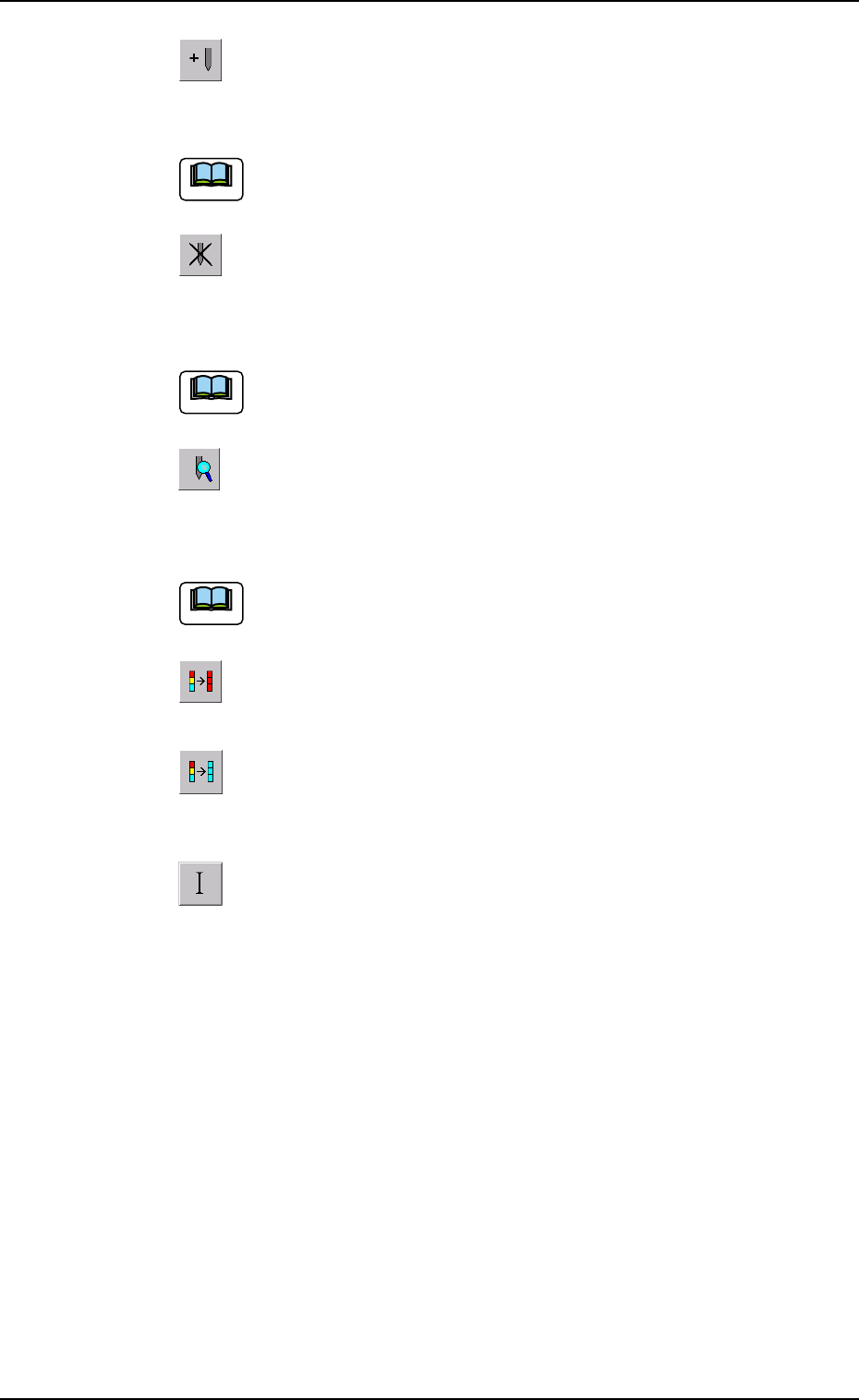

: When pressed, this icon fills all the selected text boxes

with the parameter in the first text box.

: When pressed, this icon fills all the selected text boxes

with the parameter in the last text box.

: When pressed, this icon initializes the selection (sets the

defaults).
