5.2.2 "A vailable Area Set (1/2) or (2/2)" T ab Sheet • Sheet Layout When the "Available Area Set (1/2)" tab is pressed, the following tab sheet appears. Fig. 3E65 "A vailable Area Set (1/2)&quot…

• How to set or change a password

(1) When the [Password Set] button is pressed according to the given

authority, the "Password Entry" edit window opens.

Fig. 3E64 "Password Entry" Edit Window

(2) Enter a password and press the [Set] button. the "Password Reen-

try" edit window opens. Enter the same password again and press

the [Set] button.

The password is set or changed and "Set" appears in red on the

right side of the [Password Set] button.

• How to cancel the set password

(1) To cancel the set password, press the [Password Set] button ac-

cording to the given authority. The "Password Entry" edit window

opens.

(2) Press the [Set] button without entering any characters in the entry

field. The "Password Reentry" edit window opens. Press the [Set]

button again without entering any characters.

The preset password is canceled and "Not Set" appears in blue on

the right side of the [Password Set] button.

5.2 "Password" Tab

0305-001 5-77 AIL01EDTP

5.2.2 "Available Area Set (1/2) or (2/2)" Tab Sheet

• Sheet Layout

When the "Available Area Set (1/2)" tab is pressed, the following tab

sheet appears.

Fig. 3E65 "Available Area Set (1/2)" Tab Sheet

• Sheet Composition

*1 "Available Area Set" Buttons

The labels on the buttons indicate that the functions described on

the left side of the buttons are available for the following operators.

SUP : This indicates that only the supervisor is given the authority to

use the function.

When a red bar appears on the right side of the function

name, it indicates that the function is available for "Super-

visor"

OP1 : This indicates that the supervisor and the operator #1 are given

the authority to use the function.

Red and green bars appear on the right side of the func-

tion name.

OP2 : This indicates that the supervisor, the operator #1, and the op-

erator #2 are given the authority to use the function.

That is, the selection means that all operators can use the func-

tion.

Red, green, and yellow bars appear on the right side of the

function name.

5.2 "Password" Tab

0305-001 5-78 AIL01EDTP

• How to specify the available range of a password

(1) Specify the scope of authority to use the described functions ("Op-

eration Mode (Modify)" through "Placement Head/Noz Data").

Every time the button (corresponding to the desired function) is

pressed, the label changes in scrolling such as "SUP" Æ "OP1" Æ

"OP2" Æ "SUP".

(2) When the "Available Area Set (2/2)" tab is pressed, the following tab

sheet appears.

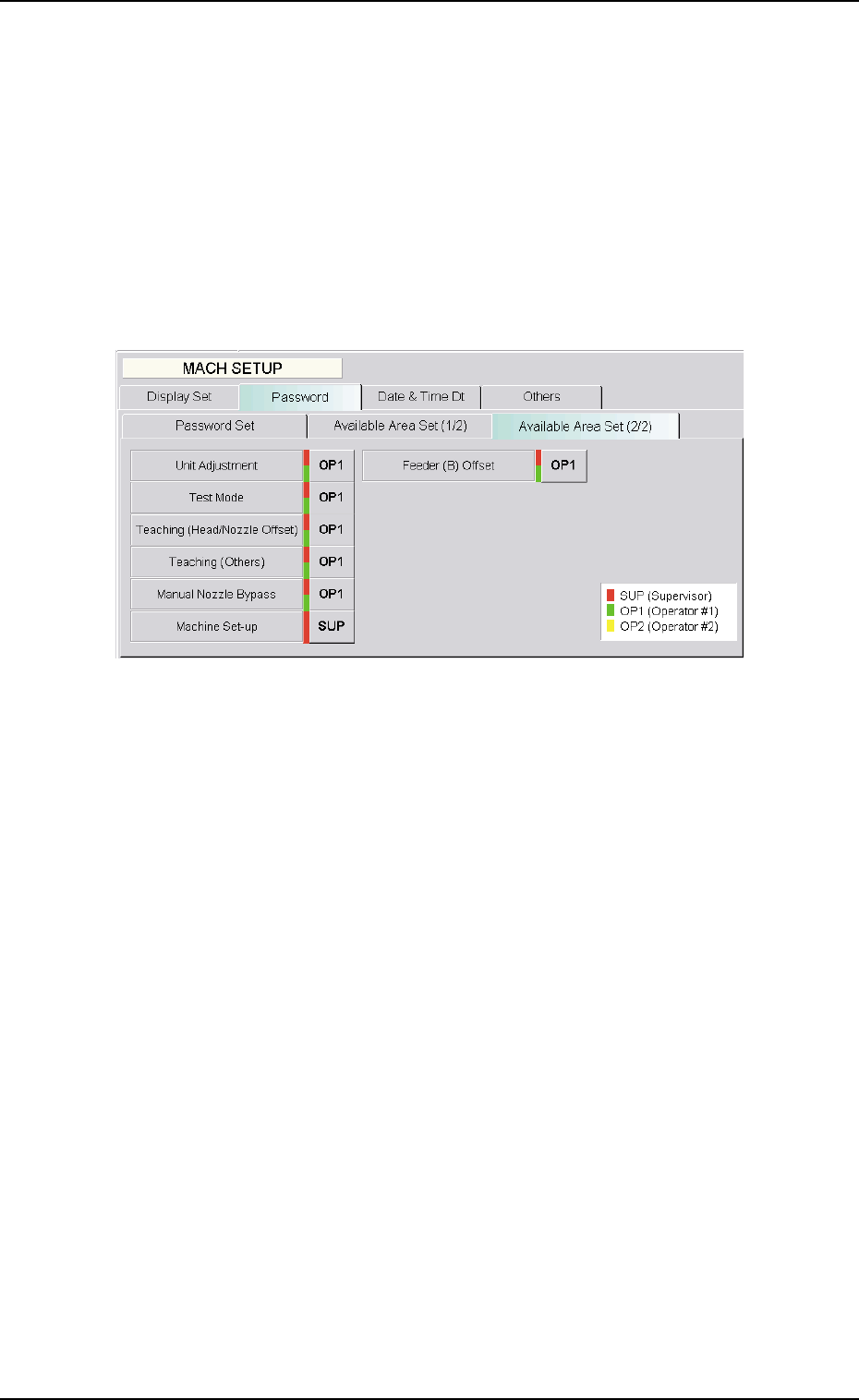

Fig. 3E66 "Available Area Set (2/2)" Tab Sheet

(3) Follow the same procedure as "(1)" to specify the scope of authority

to use the described functions ("Unit Adjustment" through "Machine

Set-up").

5.2 "Password" Tab

0305-001 5-79 AIL01EDTP
