• Sheet Composition *1 X/Y table X [mm] (Horizontal), Y [mm] (V ertical) This is the offset data between the X/Y table origin and the positional reference of the head’s component placement. When the X/Y table is at its o…

Fig. 3E12

Fig. 3E13

0305-001 5-12

AIL01EDTP

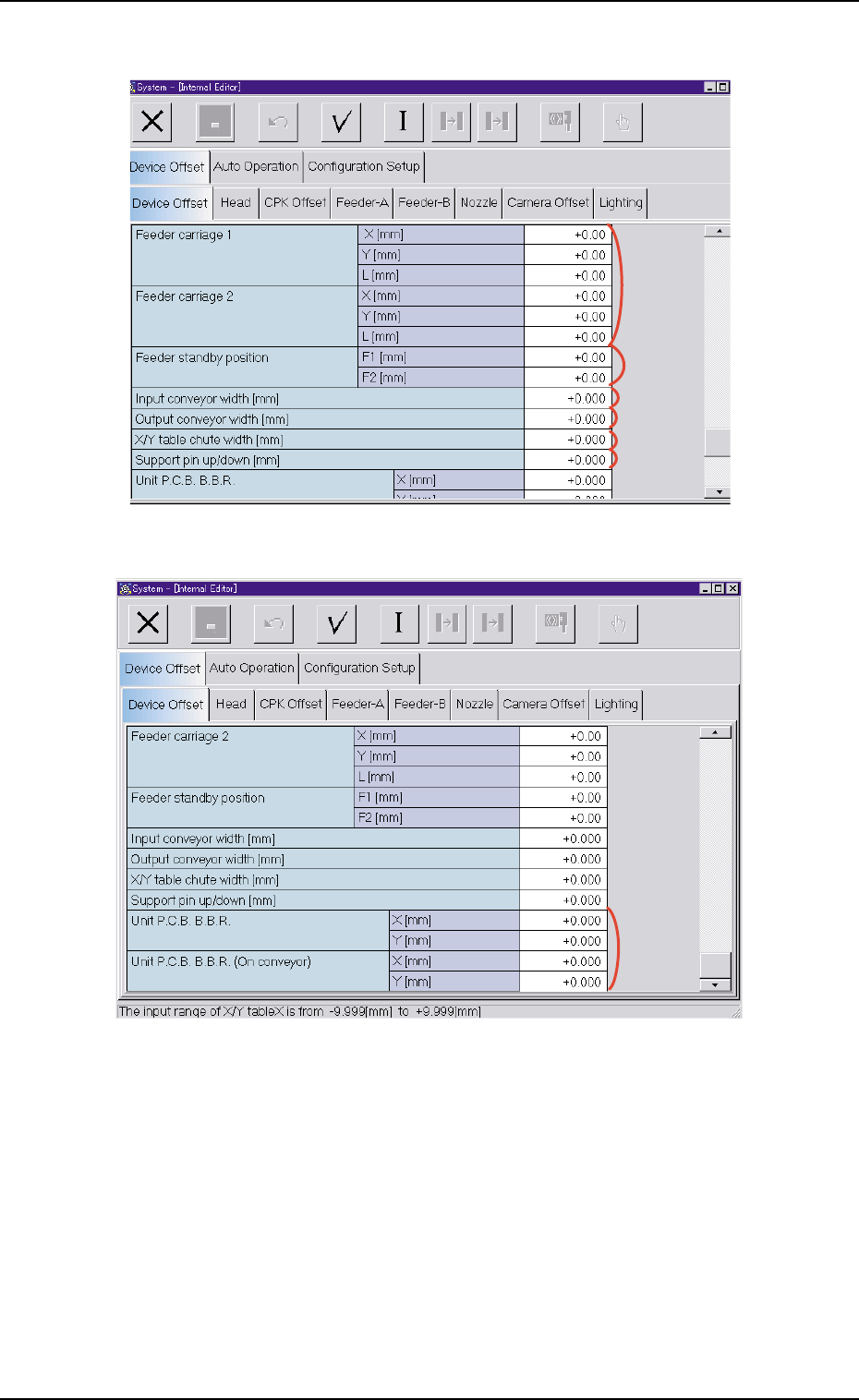

3.2 "Device Offset" Tab

*10

*11

*12

*13

*14

• Sheet Composition

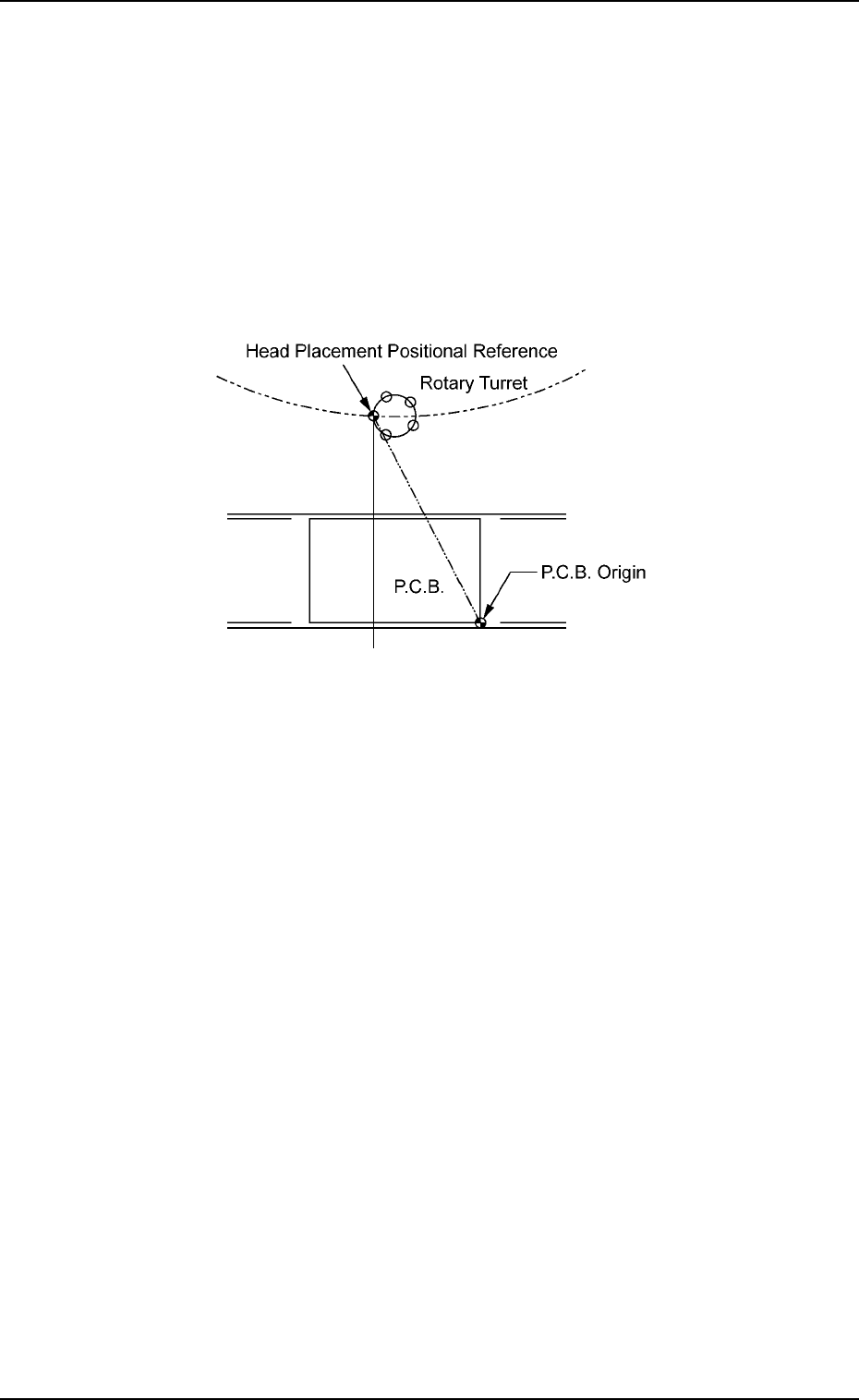

*1 X/Y table X [mm] (Horizontal), Y [mm] (Vertical)

This is the offset data between the X/Y table origin and the positional

reference of the head’s component placement.

When the X/Y table is at its origin, the distance between the P.C.B.

origin and the positional reference (reference head position) for com-

ponent placement performed by a nozzle on the No. 1 head should

be set to adjust the data compared with the design values.

Fig. 3E14

0305-001 5-13

AIL01EDTP

3.2 "Device Offset" Tab

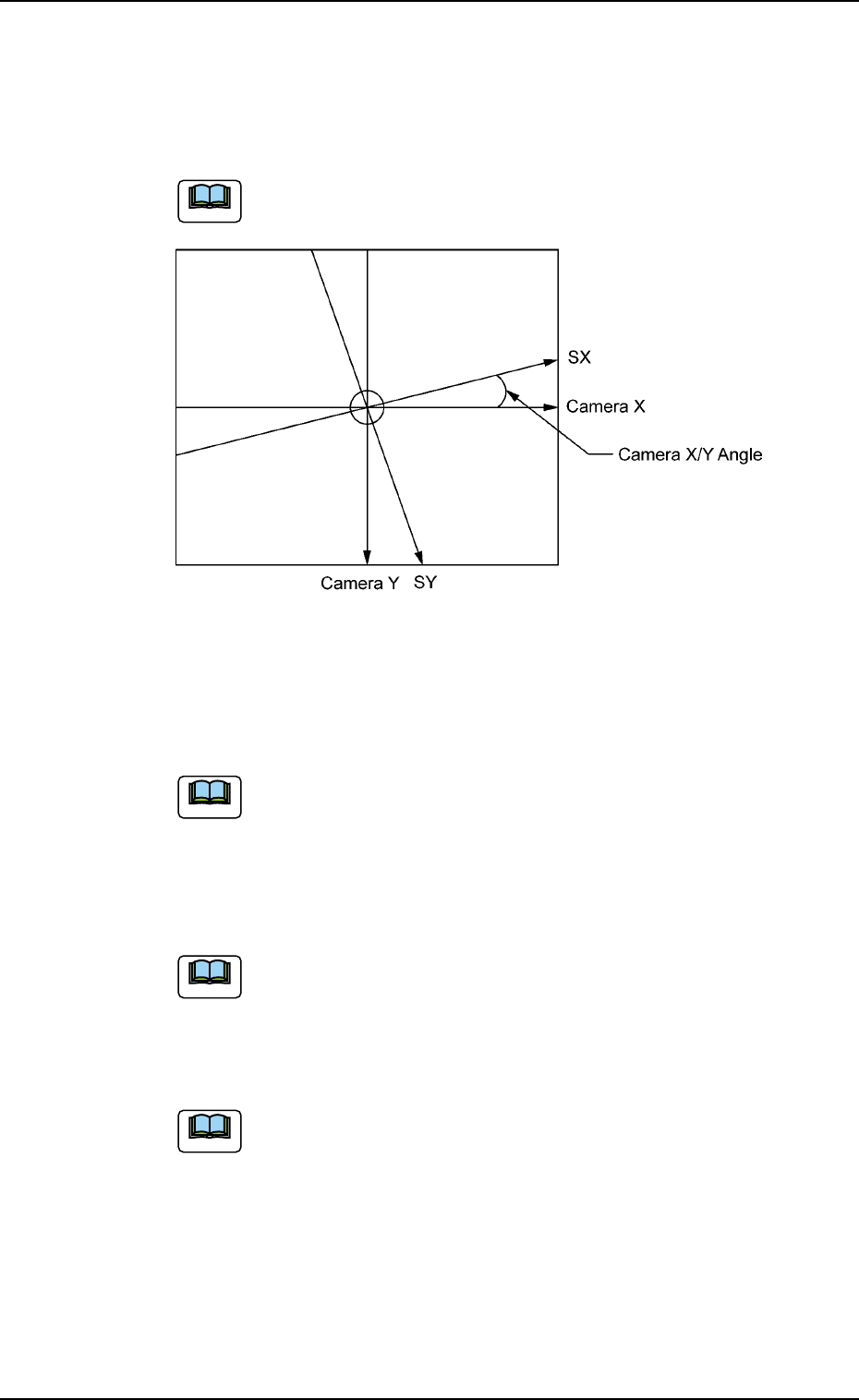

*2 Camera X Theta [deg], Y Theta [deg]

This is the offset data for angle difference between the camera X

and Y axis and the scanning coordinates X and Y of the component

recognition camera (Camera 1: high magnification).

The parameters are computed using the jig nozzle.

Fig. 3E15

*3 Component pickup (Z) axis [mm]

This is the offset data for the origin position of the component pickup

Z axis (CZ).

A plus (+) value increases the downward movement of the

nozzle.

*4 Component placement (Z) axis [mm]

This is the offset data for the origin position of the component place-

ment Z axis (MZ).

A plus (+) value increases the downward movement of the

nozzle.

*5 P.C.B. transfer Left [mm], Right [mm]

This is the offset data to adjust the feed limit at P.C.B. transfer.

This offset data is used for fine adjustment of the transfer

stroke.

*6 Master nozzle H [mm], L-L [mm], L-X [mm], L-Y [mm]

Entered are the nozzle parameters that were measured using the

master nozzle.

H:Height (H Level)

L-L : Height (L Level)

L-X : X in L Level

L-Y : Y in L Level

0305-001 5-14

AIL01EDTP

3.2 "Device Offset" Tab

Note
