*7 Feeder carriage connection 1-2 [mm] This is the offset data used to adjust the space between the two feeder carriages when connected. Reserved Data *8 Feeder carriage 1 X (Horizontal) [mm], Y (V ertical) [mm], L (Heig…

*2 Camera X Theta [deg], Y Theta [deg]

This is the offset data for angle difference between the camera X

and Y axis and the scanning coordinates X and Y of the component

recognition camera (Camera 1: high magnification).

The parameters are computed using the jig nozzle.

Fig. 3E15

*3 Component pickup (Z) axis [mm]

This is the offset data for the origin position of the component pickup

Z axis (CZ).

A plus (+) value increases the downward movement of the

nozzle.

*4 Component placement (Z) axis [mm]

This is the offset data for the origin position of the component place-

ment Z axis (MZ).

A plus (+) value increases the downward movement of the

nozzle.

*5 P.C.B. transfer Left [mm], Right [mm]

This is the offset data to adjust the feed limit at P.C.B. transfer.

This offset data is used for fine adjustment of the transfer

stroke.

*6 Master nozzle H [mm], L-L [mm], L-X [mm], L-Y [mm]

Entered are the nozzle parameters that were measured using the

master nozzle.

H:Height (H Level)

L-L : Height (L Level)

L-X : X in L Level

L-Y : Y in L Level

0305-001 5-14

AIL01EDTP

3.2 "Device Offset" Tab

Note

*7 Feeder carriage connection 1-2 [mm]

This is the offset data used to adjust the space between the two

feeder carriages when connected.

Reserved Data

*8 Feeder carriage 1 X (Horizontal) [mm], Y (Vertical) [mm], L

(Height) [mm], 2 X (Horizontal) [mm], Y (Vertical) [mm], L (Height)

[mm]

This is the offset data used to adjust the positional distances be-

tween the component pickup position and the feeder carriages.

X [mm] (Horizontal) : Horizontal Position Data

Y [mm] (Vertical) : Vertical Position Data

L [mm] (Height) : Pickup Height Position Data

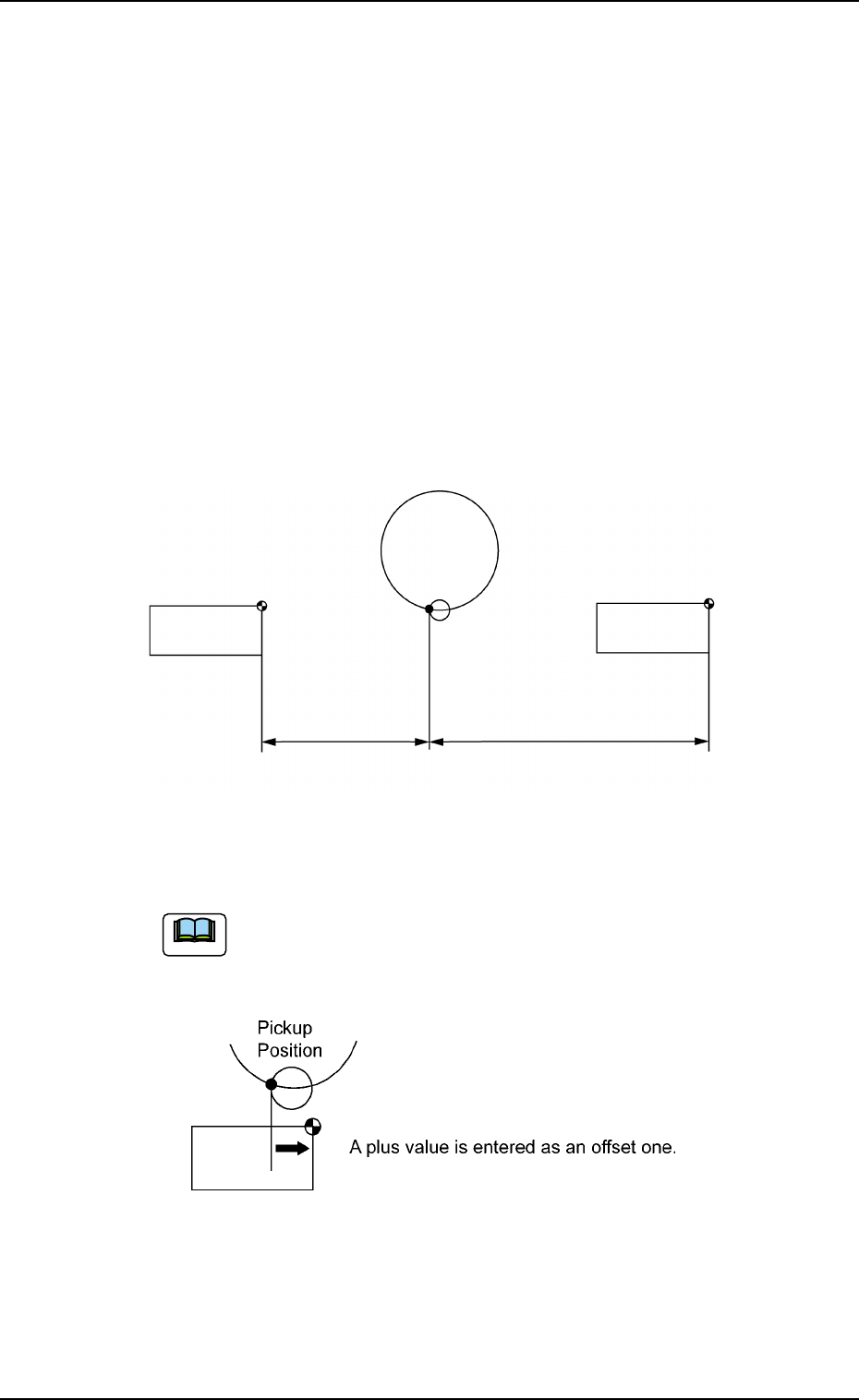

Fig. 3E16

Plus parameters entered in these text boxes increase the

travel of the feeder carriages in the "Fdr. No." direction from

the component pickup position.

Fig. 3E17

0305-001 5-15

AIL01EDTP

3.2 "Device Offset" Tab

Pickup

Position

Feeder Carriage #2

FDR. 201 at Origin

Feeder Carriage #1

FDR. 101 at Origin

Note

*9 Feeder standby position

F1 [mm], F2 [mm]

Shown are the offset values (differences between the values of the

feeder standby position and the actually measured values of the

feeder axis origin position).

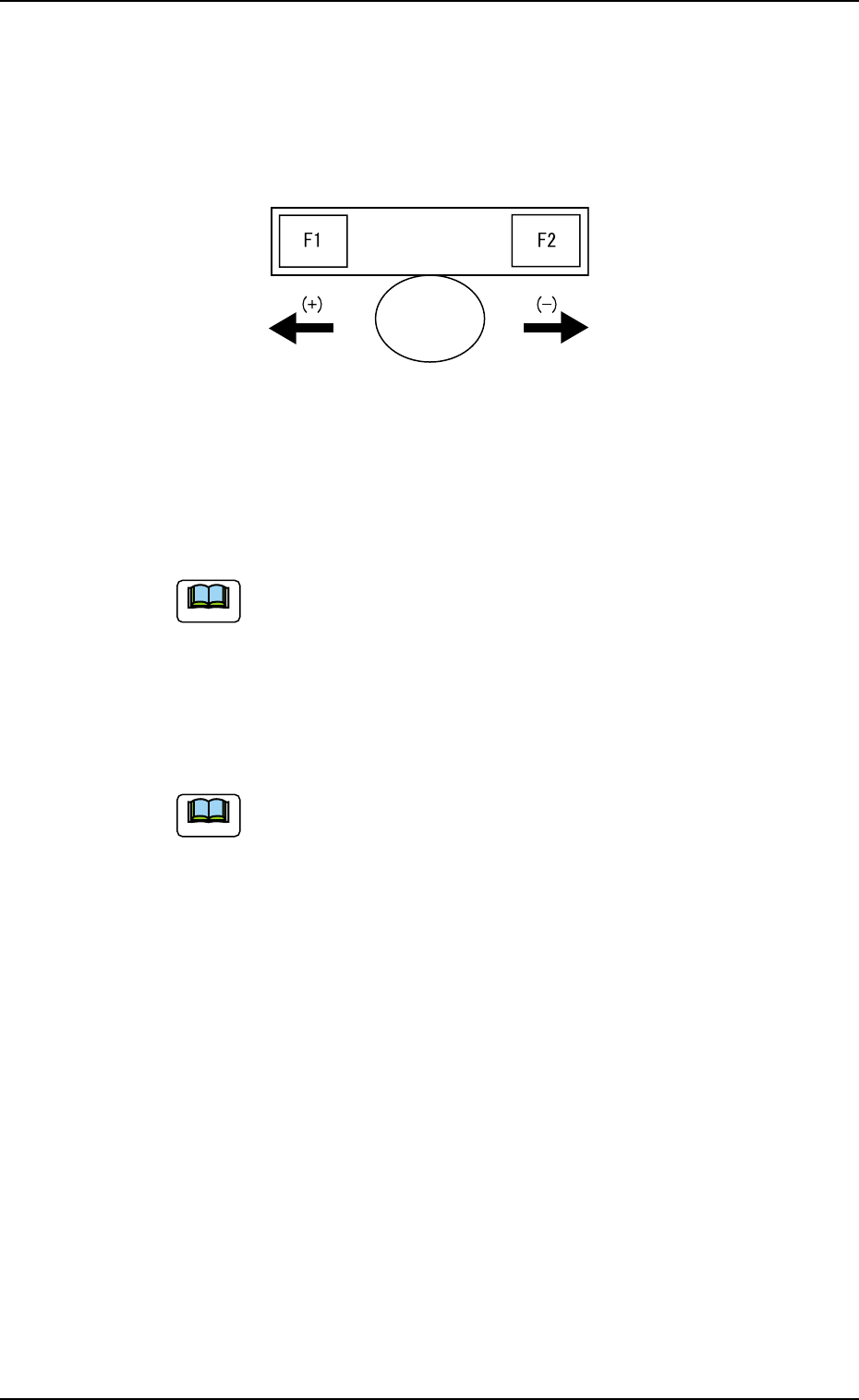

Fig. 3E18

*10 Input conveyor width [mm]

This is the offset value indicating the difference between P.C.B. Di-

mension Y and the actually measured conveyor width.

The actual value is measured after the conveyor width is

changed when the clearance data and device offset are re-

garded as "0" (zero).

*11 Output conveyor width [mm]

This is the offset value indicating the difference between P.C.B. Di-

mension Y and the actually measured conveyor width.

The actual value is measured after the conveyor width is

changed when the clearance data and device offset are re-

garded as "0" (zero).

0403-002 5-16

AIL01EDTP

3.2 "Device Offset" Tab

Note
