NPM-W2 EJM7DE-MB-03O-00
Nozzle pickup condition
Operating procedure
3-2-1
3-2-1-11
Produc-
tion
informa-
tion
●Pickup condition of nozzles in the nozzle changer is displayed.
Stop production after producing the
current PCB. (→P.3-1-2)
Updates to latest information.
Shows the previous or next
table.
●Displays error count of the selecting
nozzle in an hour in graph.
Vertical axis: error count
Horizontal axis: time
Returns to the
previous screen
A
B
D
C
1
Choose either by machine or by line
: By machine
: By line
How to check the screen in
production when stationary
6
A
C
B
D
1
NPM-W2 EJM7DE-MB-03O-00
3-2-1-12
■By machine
TBL (table)
Table to be referred.
PickupCnt
Err Cnt
Err Rate
Displays detailed pickup information.
■By line
Changer Pos.
Nozzle position in the nozzle changer
on the selected table.
Nozzle No
Displays the error rate per machine or per
line.
LeadTo
Displays increase or decrease tendency
of the error rate with arrow icons.
●
●
●
●
●
: Ultra up tendency
: Up tendency
: Constant tendency
: Ultra down tendency
: Down tendency
Production
F
G
H
I
J
K
L
M
Ｎ
E
MC (Machine)
The machine numbers that are assigned
to machines organized into a line and
that start at the head of the line.
HF
KI
J
G
N
M
LE
HF
KI
J
G
N
M
LE
NPM-W2 EJM7DE-MB-03O-00

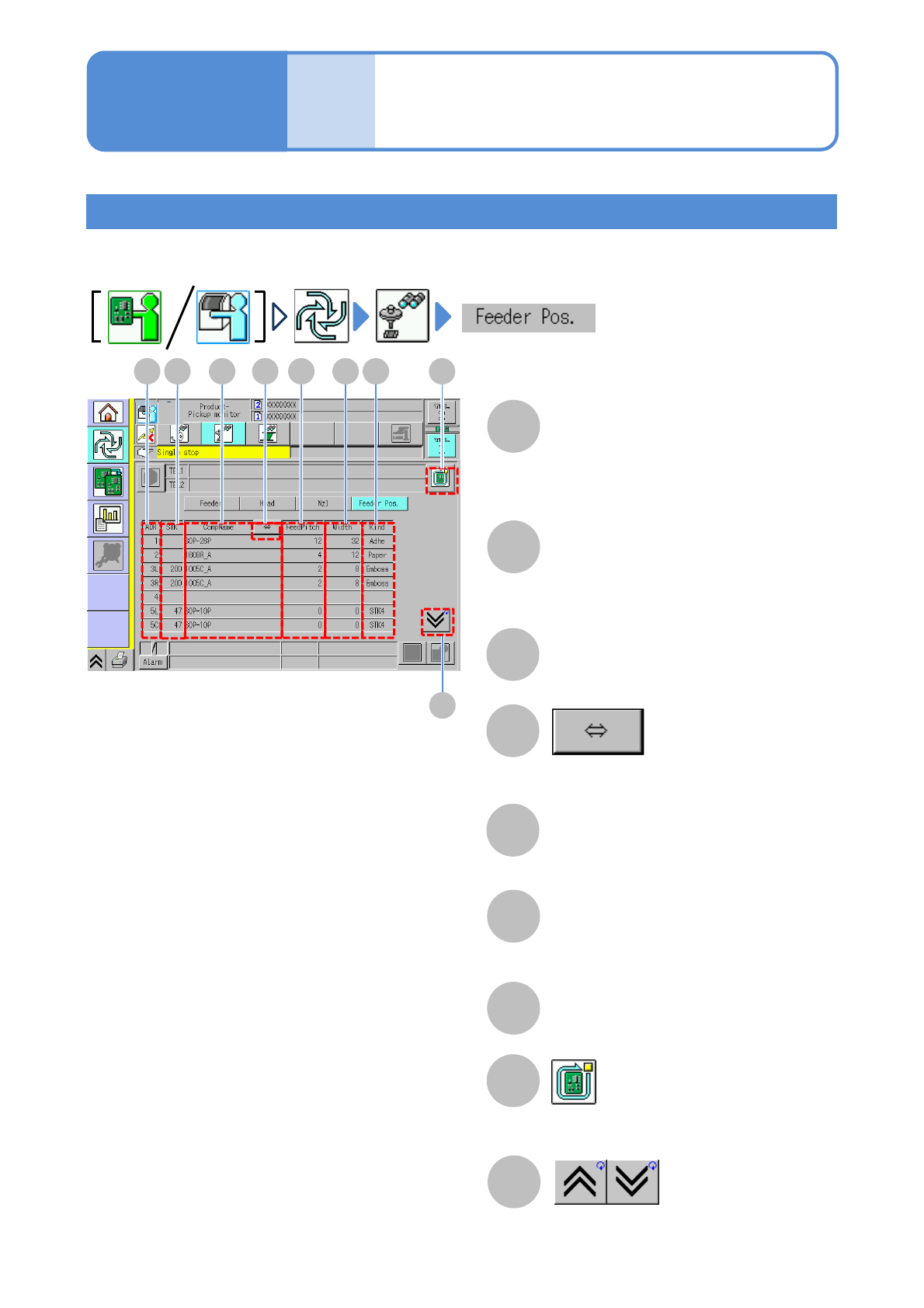

Feeder arrangement information
Operating procedure
3-2-1
H
I
3-2-1-13
Produc-
tion
informa-
tion
●Feeder information arranged on the supply unit is displayed.
Information displays on a per-machine basis.
A
ADR (address)
C
D
E
F
FeedPitch
Width
CompName
Displays the slot number (address) by
which feeders are arranged, and a lane
of the double tape feeder or the thin type
tape feeder.
B
STK
ID number of stock components.
(If there is any stock)
Shows the rest of the component name
by scrolling.
Tape length of one feed.
Tape width.
G
Kind
Tape material type.
FEC D G
Stop production after producing the
current PCB. (→P.3-1-2)
Shows the previous or next table.
H
I
A B
How to check the screen in
production when stationary
