NPM-W 2 EJM7DE-MB-09O -00 A pplica ble PCB specifica tions 1 Item Single conveyor Dimensions (mm) ● Min L 50  W 50 ● Max L 750  W 550 Thicknes s (mm) 0.3 to 8.0 (Dot dispensing : 0.5 to 8.0 ) Mass ( kg ) 3 or under (af…

100%1 / 714
NPM-W2 EJM7DE-MB-09O-00
9-1-3-4
At
a glance
NPM-W2 EJM7DE-MB-09O-00

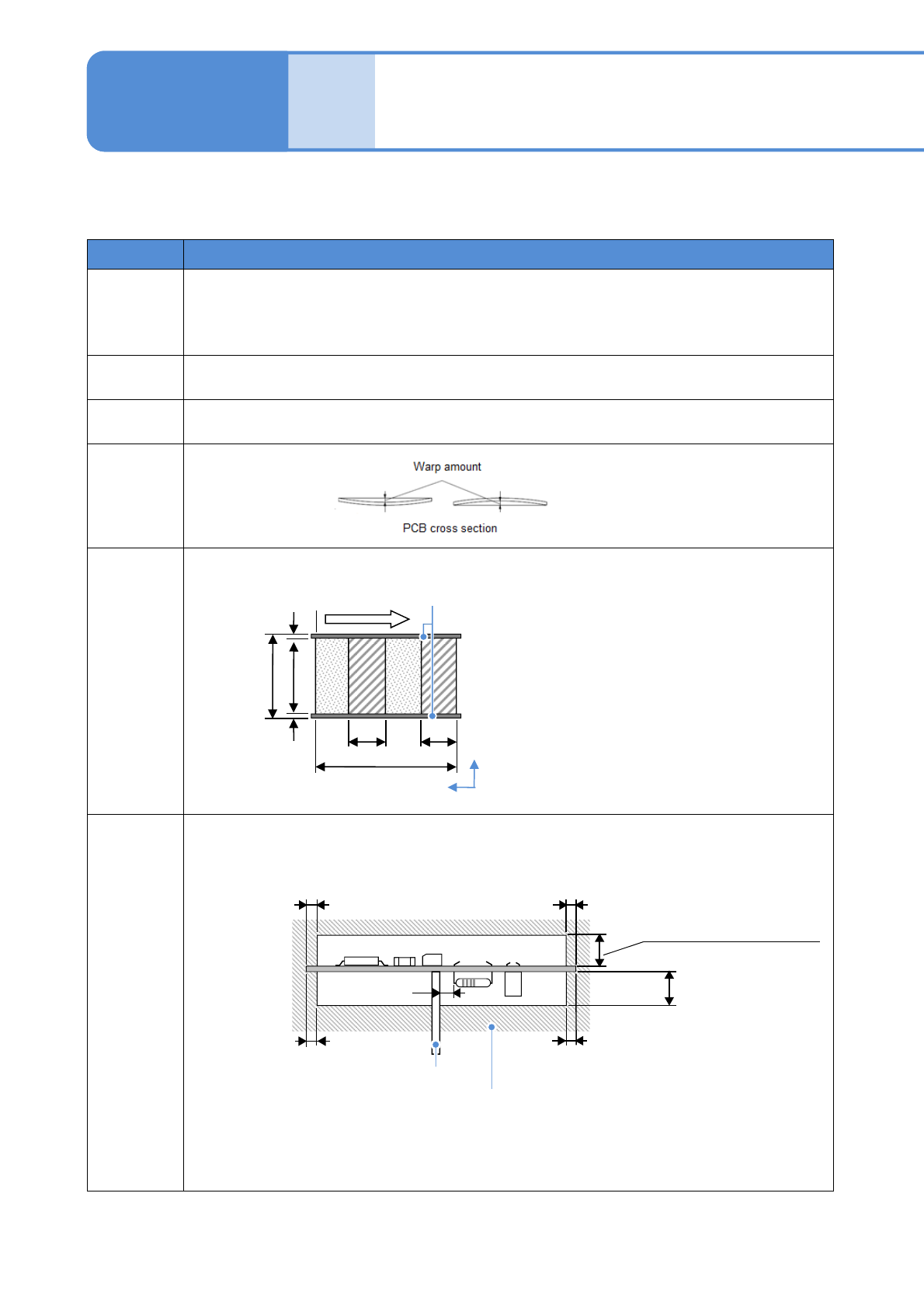

Applicable PCB
specifications 1
Item Single conveyor
Dimensions
(mm)
●Min
L 50 W 50
●Max
L 750 W 550
Thickness
(mm)
0.3 to 8.0 (Dot dispensing: 0.5 to 8.0 )
Mass
(kg)
3 or under (after placement)
Allowable
PCB warp
(mm)
Placement
and
dispensing
area
(mm)
Dead
space
(mm)
9-1-4-1
3
28
16-nozzle head : Max. 6.5
12-nozzle head : Max. 6.5
8-nozzle head : Max. 12
3-nozzle head : Max. 30
Dispensing head : Max. 28
No component area
PCB support pin
No component
area
Y
X Fixed side
Keep 2 mm away from the component on the reverse side.
●If you want to create your own PCB-support blocks, please consult us.
Warp lower: within 0.5
Warp upper: within 0.5
3
3
3
Placement area
a: 50 to 550
b: 44 to 542
c: 3.0
d: 50 to 750
d
1,d2: 50 to 350
*1)
*1)
*1）
Dispence area
a: 50 to 550
b: 42 to 542
c: 4.0
d: 50 to 750
d
1,d2: 50 to 350
*1)
Specifi-
cation
Operating procedure
9-1-4
a b
c
d
c
d2 d1
PCB flow
*1) When two PCBs are clamped
NPM-W2 EJM7DE-MB-09O-00

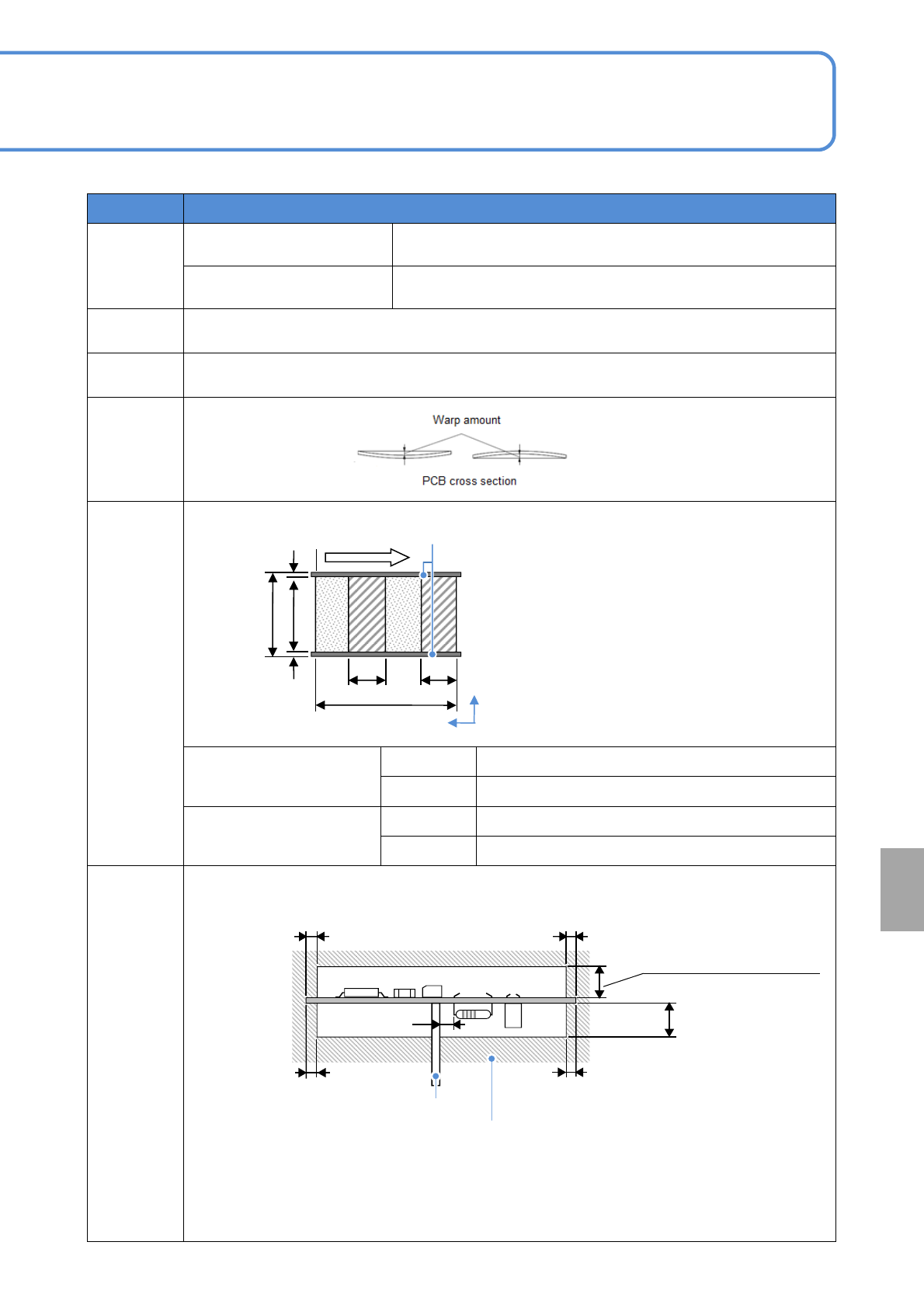

Item Dual conveyor
Dimensions
(mm)
Dual lane mode
●Min. : L 50 W 50 ●Max.: L 750 W 260
Single lane mode
●Min.: L 50 W 50 ●Max.: L 750 W 510
Thickness
(mm)
0.3 to 8.0 (Dot dispensing: 0.5 to 8.0 )
Mass (kg)
3 or under (after placement)
Allowable
PCB warp
(mm)
Placement
and
dispensing
area
(mm)
Single lane mode Placement a: 50 to 510 b: 44 to 504 c: 3.0 d: 50 to 750
Dispensing a: 50 to 510 b: 42 to 502 c: 4.0 d: 50 to 750
Dual lane mode Placement a: 50 to 260 b: 44 to 254 c: 3.0 d: 50 to 750
Dispensing a: 50 to 260 b: 42 to 252 c: 4.0 d: 50 to 750
Dead
space
(mm)
9-1-4-2
3
28
No component area
PCB support pin
Keep 2 mm away from the component on the reverse side.
●If you want to create your own PCB-support blocks, please consult us.
Warp lower: within 0.5
Warp upper: within :0.5
3
3
3
*1）
*1）
16-nozzle head : Max. 6.5
12-nozzle head : Max. 6.5
8-nozzle head : Max. 12
3-nozzle head : Max. 30
Dispensing head : Max. 28
At
a glance
No component
area
Y
X Fixed side
Placement area
a: 50 to 550
b: 44 to 542
c: 3.0
d: 50 to 750
d
1,d2: 50 to 350
*1)
Dispence area
a: 50 to 550
b: 42 to 542
c: 4.0
d: 50 to 750
d
1,d2: 50 to 350
*1)
a b
c
d
c
d2 d1
PCB flow
*1) When two PCBs are clamped
