SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
100
Figure 9-32 Feeder Blocking Message as seen in Station GUI
NOTE
In Feeder Manager 3.1, the Enforce Feeder Block function is only available
when Setup Center is installed.
For online feeders which turn Overdue or being marked as Defective AFTER the starting of
production, there will be no warning / error issued by Feeder Manager until such feeders are
removed and inserted again. In other words, the checking of feeder blocking only happens
when problematic feeders or the COT that contains them are inserted.
In case when a feeder enters the defective, overdue status, if it is still within the Maintenance
Extension criteria defined by Feeder Manager, the user can still choose to extend its usage by
following the Maintenance Extension workflow. But once the extension is done, the feeder
must be removed and inserted again in order for the Blocked status to be reset. Otherwise the
Setup Verification will still fail on this feeder.
SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
101
10 Help
The Help menu group seen from previous versions of Feeder Manager has been removed
because Feeder Manager is now a module inside ASM Studio, and all the corresponding
functions shall be accessed from the ASM Studio main menu.
10.1 Error reporting
Error reporting allows the user to start the ASM Net Error Reporter Services. With this
program the product installation can be selected for which an error report shall be generated.
To start, go to the ASM Studio main menu and select Error Reporting…

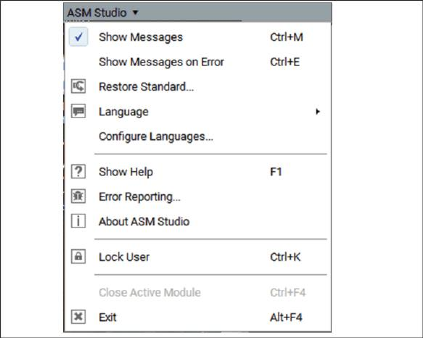

Figure 10-1 ASM Studio Error Reporting
Note: With the current version of ASM Studio, auto navigation to the error report profile for the
active module is not enabled. Therefore you need to manually locate the correct profile and
select it.
10.2 Online Help
Allows the user to open the Online Help file for the Feeder Manager.
Starting from Feeder Manager 3.0, the Online Help is incorporated into the main ASM Studio
Online Help. See below.
SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
102

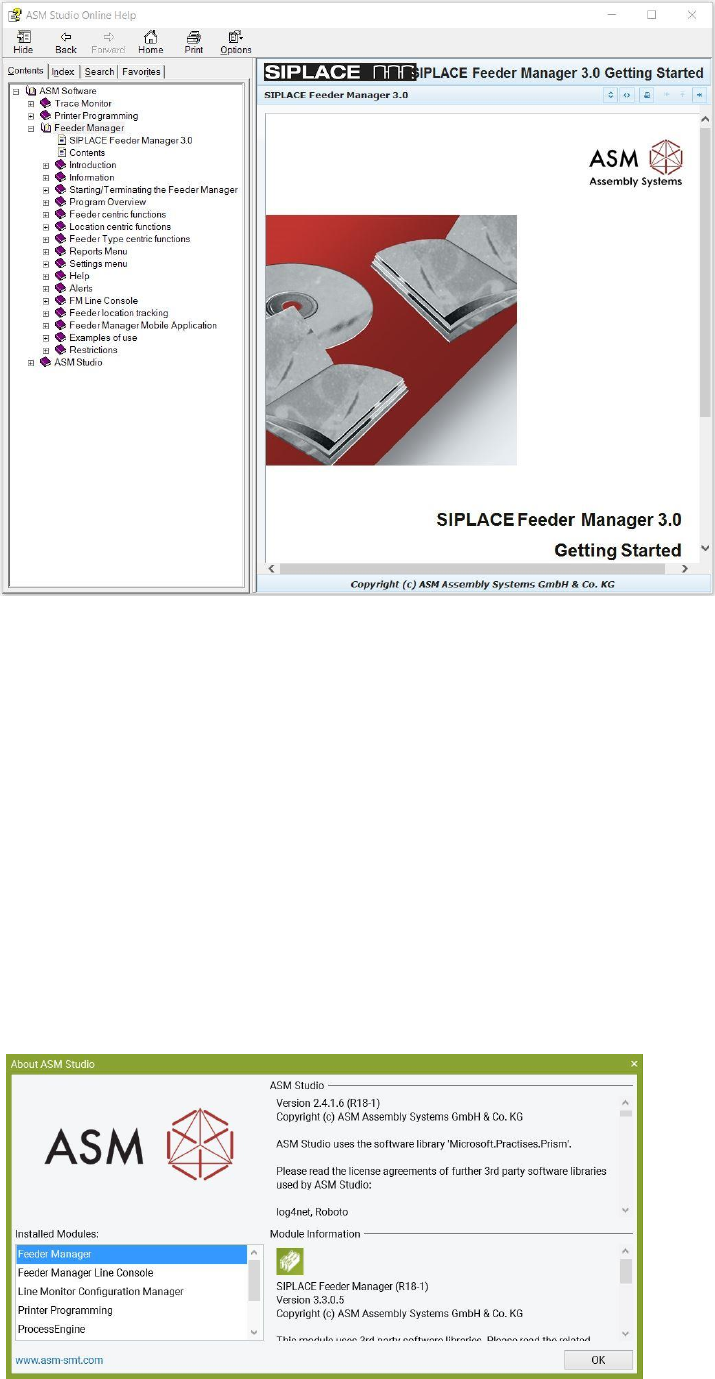

Figure 10-2 ASM Studio Online Help window
To start, press F1 or go to the ASM Studio main menu and select Show Help.
10.3 About
The About window displays the version number and copyright information of ASM Feeder
Manager.
Starting from Feeder Manager 3.0, the About information is accessed from the main ASM
Studio About dialog.
To view, go to the ASM Studio main menu and select About ASM Studio. When opened,
select Feeder Manager to view the details.
Figure 10-3 ASM Studio About box
