SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
48
5.5.4 Step 4 – Feeder Maintenance Option
Figure 5-35 Feeder Repair Option
This step provides an option for you to do the feeder maintenance along the workflow as well.
By default, Yes is selected, and you will be able to see the defined maintenance plan for the
feeder type this feeder belongs to.
See section 5.4.3 for details.
If you keep the Yes as selected, you are required to enter maintenance comment before
proceeding to the next step.
Or you can select No to continue without doing a maintenance plan update.
5.5.5 Step 5 – Option to check feeder with SFTS or XFTS again
Figure 5-36 Option to check feeder with SFTS or XFTS again
This step allows you to choose whether to conduct another round of SFTS or XFTS test to
verify the maintenance / repair result.
Execute the test if necessary in the same way as described in Step 2, or select No to proceed
SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
49
5.5.6 Step 6 – Summary

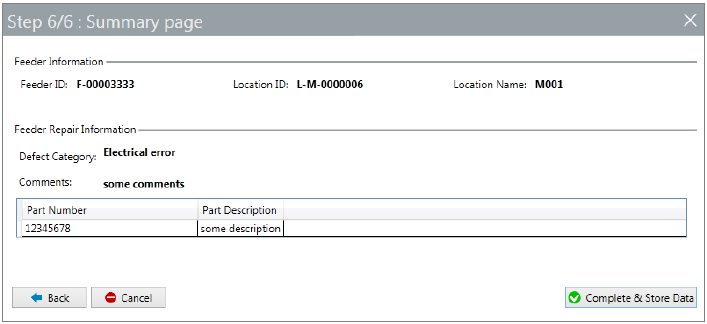

Figure 5-37 Feeder Maintenance Workflow Summary page
The 6
th
and last step gives you the summary of all the repair information entered for the
subject feeder.
Check the content to make sure they are correct. You can use the Back button to go to any
previous step for modifications.
Once satisfied, press the Complete & Store Data button to complete the maintenance
workflow for this feeder and store the relevant maintenance data into Feeder Manager
database.
SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
50
6 Location centric functions
Feeder Manager provides following location centric functions
1) Add New Location
2) Search Location
3) Print Offline Area Setup
4) Import Location
See also chapter 13 Feeder location tracking for more details.
6.1 Add New Location view
New locations can be added from main menu either via
1) Location Add New Location, or
2) Add Add New Location.
The Add New Location view is displayed.

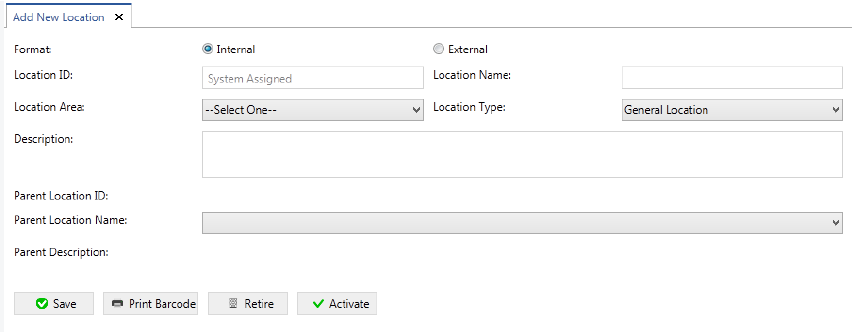

Figure 6-1: Add New Location
Enter the details to add a new location to the system.
6.1.1 Description of the fields
Format
The Feeder Manager supports two types of location ID formats that are selected in the Feeder
ID Format view.
Internal
A unique location ID is generated automatically by the system.
External
A customer specific location ID must be entered.
