SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition

7.2 Search Feeder Type view

Search Feeder Type is accessed from the main menu via either

3) Search  Search Feeder Type, or

4) Feeder Type  Search New Feeder Type

The Search For Feeder Type view displayed as following.

Figure 7-2: Search Feeder Type view

By default all the available feeder types are listed out in the table below the search criteria

area to search a convenient list.

 Enter the details to search for a particular feeder type.

7.2.1 Description of the fields

Feeder type name

Allows the user to enter a feeder type name to search for.

Feeder type

Allows the user to select a specific feeder type or all feeder types to search for from the drop-

down list.

Is X feeder

Allows the user to search for all feeder types belonging to the X-feeder family (or not) from the

drop-down list. The following options are available:

– All (X- and non-X-feeders)

– No (non-X-feeders)

– Yes (X-feeders)

SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition

7.2.2 Description of the buttons

 Click on this button to search for feeder types based on any or all of the search criteria.

Reset

 Click on this button to clear all the field values in the Feeder Type Management dialog

box and reset them to default values (if any).

Refresh

 Click on this button to refresh the Feeder Type drop-down list.

Once any feeder type details are updated or a new feeder type is added, and the user returns

to the Feeder Type Management dialog box, a manual refresh by clicking on this button is

required in order for the changes to take effect in the Feeder type drop-down list.

7.2.3 Editing the maintenance plan

 Double click any feeder type in the above list to enter the Feeder Type Details window.

For each SIPLACE feeder type, default values for date based and cycle based maintenance

plan are provided from the system. Some of these values can be modified in the Feeder Type

Details – Edit view. For customer feeder types, a date-based or a cycle-based maintenance

plan can be defined or modified.

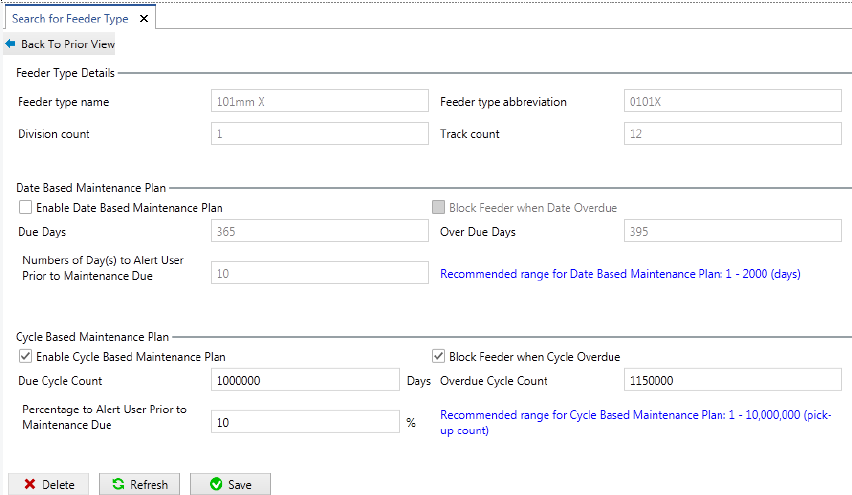

Figure 7-3: Feeder Type Details – Edit view

The Feeder Type Details – Edit view is divided into three sections, Feeder Type Details,

Date Based Maintenance Plan and Cycle Based Maintenance Plan.

SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition

7.2.3.1 Feeder Type Details

This section contains information about the feeder type and can be modified. The fields and

buttons are described in the sections above.

7.2.3.2 Date Based Maintenance Plan

This section contains information about the date-based maintenance plan for a particular

feeder type and can be modified.

Enable date based maintenance

Allows the user to enable date-based maintenance.

Block feeder when date overdue

Allows the user to define, that a feeder shall be marked as blocked, when the overdue date is

exceeded. If this field is unchecked, the status of the feeder remains Available even after the

feeder is overdue for maintenance and the feeder can still be used.

Note: If this option is checked, Feeder Manager will set the feeder to the “Blocked” status

when it’s maintenance status becomes overdue. This “Blocked” status is only visible from

inside Feeder Manager Client and Line Console.

For Enforced Feeder Block feature, please refer to the Settings  Enforce Feeder

Block.

Maintenance due days

Allows the user to define/modify the number of days before a feeder of this particular feeder

type is due for servicing.

Maintenance overdue days

Allows the user to define/modify the number of days before a feeder of this particular feeder

type is overdue for servicing. The recommended range for the date-based maintenance plan

is displayed.

Number of day(s) to alert user prior maintenance due

Allows the user to define/modify a number of days that remains before a feeder of this

particular feeder type is due for servicing. When the defined number of days is reached, the

user will be alerted by the system.

7.2.3.3 Cycle Based Maintenance Plan

This section contains information about the cycle-based maintenance plan for a particular

feeder type and can be modified.

Enable cycle based maintenance

Allows the user to enable cycle-based maintenance.
