SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
36
5.3 Search Feeder view
This function is used to search for a feeder, or a group of feeders, using a set of criteria set by
the user. It can be accessed in the menu bar by either Feeder Search Feeder or Search
Search Feeder.
Once clicked, the Search Feeder view is displayed in the function view area as a new tab.

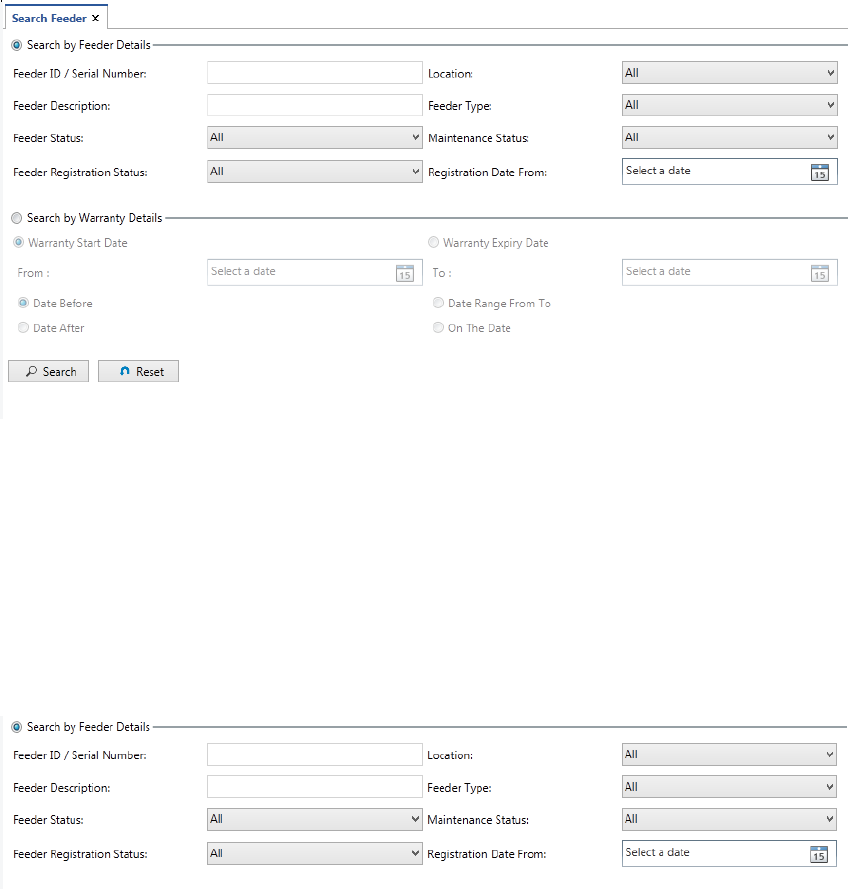

Figure 5-15: Search Feeder View
Feeders can be search by either their detail information or warranty information.
Use the radio button in front of each option to select.
5.3.1 Search feeder by details
Following fields are used for search of feeder
Figure 5-16 Search feeder by details
For example, type in the feeder ID and press “Search” or Enter, or scan the vendor barcode
directly will trigger the search.
SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
37
Feeder ID / Serial Number
This field allows the user to search for a feeder using either its feeder ID or serial number. If
the input string contains a feeder serial number, the serial number will be used for the search.
The user can manually key in the searching information, or use the scanner to scan the
feeder’s vendor barcode.
The search will start once the Enter is pressed during manual entering, or a scanning is
done.
Location
This field allows the user to choose from a list of locations for feeder search.
Click on the drop down button to see the list of locations.
Feeder Description
Allows the user to search for a feeder based on its feeder description.
Feeder Type
Allows the user to search for feeders of a particular feeder type.
Feeder Status
Allows the user to search for feeders based on their status. It is possible to search for all or
single status types. The following feeder status types exist:
Available
Blocked
In Use
Scrapped
Maintenance Status
Allows the user to search for feeders based on their maintenance status. It is possible to
search for all or single maintenance status types. The following maintenance status types
exist:
Normal
Defective
Due
Overdue
Feeder Registration Status
Allows the user to search for feeders based on their registration mode. It is possible to search
for all or single modes. The following registration modes exist:
Manual Registered
Auto Registered
SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
38
Registration Date from
Allows the user to search for feeders registered on or after the input date.
Select a date from the calendar.

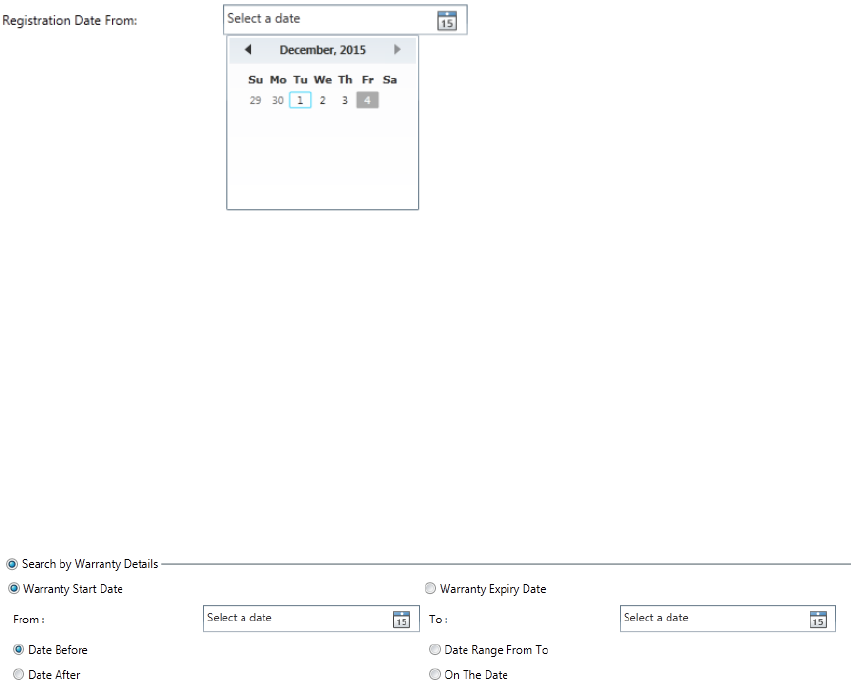

Figure 5-17: Registration Date - Calendar
All feeders registered between the selected date and today's date will be found.
Note: you can only choose a date before the current date of searching.
5.3.2 Search feeder by warranty information
Feeders can also be search using their warranty information. Below is the search criteria
editing form.
Figure 5-18 Search feeder by warranty information
Warranty Date Type
Here you can choose to search feeders by using either the warranty start date or warranty
expiry date.
Date Range
The Date range setter consists of 4 types of filters.
Date Before
This option allows the user to search for all the feeders with warranty start or expiry date
before the selected date. Selected date is not included in the search.
Date After
This option allows the user to search all the feeders with warranty start or expiry date after
the selected date .Selected date is not included in the search.
Date Range From To
This option allows the user to search all the feeders with warranty start or expiry date
which falls between the two selected dates or on either of them.
