SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
136
Figure 14-22: Change Feeder Type – Feeders
Feeders tab
Scan the feeder barcode of the feeder. (Scan all possible feeders to change the feeder
type)
Tap on Save to save the feeder type.
Tap on Close to exit the screen.
14.3.4 Mark Feeder as Defective
With this function the user can mark a feeder as defective and enter a defect comment.
Select Mark Feeder as Defective in the Main menu.
The following screen is displayed.
Figure 14-23: Mark Feeder as Defective
Scan the feeder barcode of the feeder that shall be marked as defective.
SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
137
The following screen is displayed for the feeder.
Figure 14-24: Mark Feeder as Defective - Status
In the following screen the user can enter a defect comment for the feeder. Use the integrated
keyboard function for this.
Figure 14-25: Mark Feeder as Defective – Enter defect comment
Tap on the Defect comment field and then on the keyboard symbol in the menu bar.
The keyboard function opens.
Use the keyboard to enter the defect comment text.
Tap on Save to save the entries.

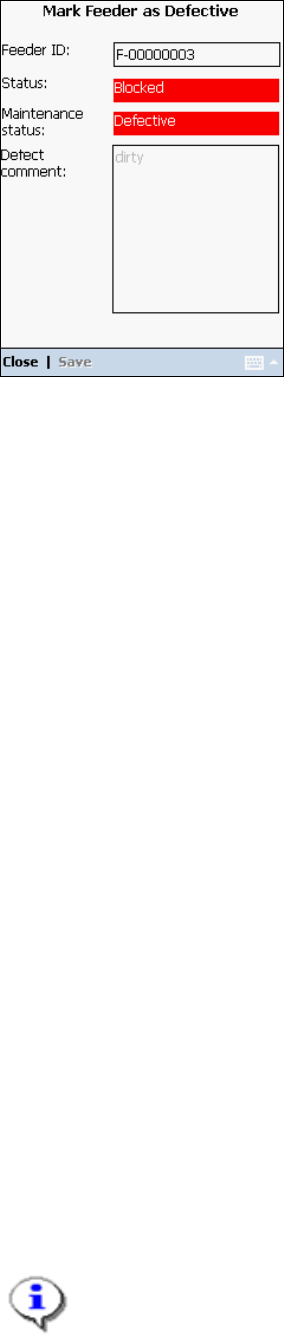

The following screen is displayed for the feeder. The feeder status and maintenance status
have changed to Blocked and Defective respectively and the status is indicated in red.
SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
138
Figure 14-26: Mark Feeder as Defective – Result
Tap on Close to exit the screen.
14.3.5 Assign Feeder to Location
With this function the user can assign a feeder to a location. There are 3 possible workflows:
(1) Assign to Production Line Station Location
Scan station location barcode
Scan track
Scan feeder barcode
Repeatable for next track and feeder
(2) Assign to Changeover Table in the Offline Area
Scan COT table barcode
Scan offline area (only if the table is not in offline area)
Scan track
Scan feeder barcode
Repeatable for next track and feeder
(3) Assign to Storage Area, Maintenance Area, Outside Factory or General Location
Scan location barcode
Scan feeder barcode
Repeatable for the feeder
Select Assign Feeder to Location in the Main menu.
Note:
Starting from Feeder Manager V2.3, the user is not allowed to manually assign X feeders
to either online locations or COTs in the offline areas.
