SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition

129

Configure

 Tap on this menu item to display or modify the configuration.

Figure 14-8: Configure – Server Connection

Server Connection tab

The IP address for the Feeder Server is displayed in the Feeder Server IP address field. This

entry can be modified.

 Enter the details that shall be changed of the IP address.

It shall have the correct IP address of the machine, where the Feeder Server has been

installed.

 Tap on the Update button to save the changed IP address.

 Tap on the Close button to exit the screen.

Figure 14-9: Configure – Global Settings

Global Settings tab

The barcode description in the Global Settings is displayed.

SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition

130

Display Language

 Tap on this menu item to display or change the display language.

Figure 14-10: Display Language

To change the selected language:

 Highlight the language to change to. In this version of Feeder Manager, English (United

States), Deutsch (Germany) and Chinese (Simplified) are available.

 Tap on Save to save the changes.

 Tap on Close to exit the screen.

14.3 Function description

In this section the single functions of the Feeder Manager Mobile Application are described.

14.3.1 Check Feeder Status

With this function the user can check the feeder status for any feeder in the system.

 Select Check Feeder Status in the Main menu.

The following screen is displayed.

Figure 14-11: Check Feeder Status

SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition

131

General tab

 Scan a feeder barcode.

The feeder status for the scanned feeder is displayed.

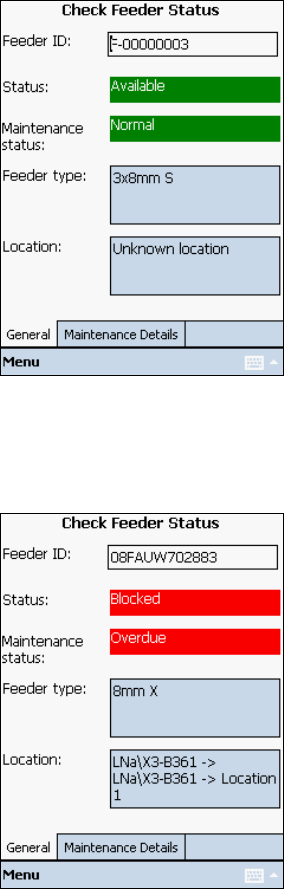

Figure 14-12: Feeder status - green

By feeder status Available and maintenance status Normal, the status is indicated in green.

By feeder status Blocked and maintenance status Overdue, the status is indicated in red.

Figure 14-13: Feeder Status - red

By feeder status Available/In Use and maintenance status Due, the status is indicated in

orange.

Maintenance Details tab

 Tap on this tab to display more maintenance details.

 Tap on Menu – Close to exit the screen.

 Tap on Menu – Clear Form to perform the function for another feeder.
