14.3.2 X Feeder ID Association

X feeders produced in early times may not indicate the feeder ID on the vendor barcode.

Feeder Manager can obtain the feeders ID through EDIF communication when this type of

feeders are placed online or connected through docking station. But when the vendor barcode

is scanned, Feeder Manager will not be able to identify it correctly.

With the X Feeder ID association function, the user can associate an X-feeder’s vendor

barcode with its actual feeder ID by scanning the barcode (which is composed of its part

number and serial number), followed by the actual location (location barcode and track

barcode).

After the association is done, this feeder will be conveniently identified by its vendor barcode.

Warning: Use this function with caution.

1) This function is ONLY applicable to X feeders which has a valid EDIF

communication and with a vendor barcode like this,

Figure 14-14 Old X Feeder External Barcode Example

2) The user is strongly suggested to do the association outside of the production time.

3) In order to avoid any erroneous association, the user should insert the feeder into

EDIF communication right after scanning the vendor barcode.

4) The EDIF communication should also be maintained for the rest of the ID

association process.

Following are the steps for this operation.

 Select X Feeder ID Association in the Main menu.

The following screen is displayed.

Figure 14-15: X Feeder ID Association

SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition

133

 Scan the vendor label (item number and serial number) from the feeder.

The following screen is displayed, in which the feeder ID has been derived from the item

number and serial number.

Figure 14-16: X Feeder ID Association with Feeder ID

 Scan the location barcode where this feeder is located.

The following screen is displayed, in which all feeders on the scanned location are displayed.

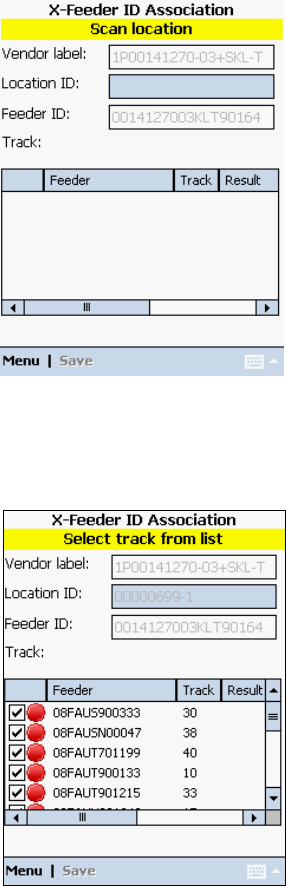

Figure 14-17: X Feeder ID Association with Location ID

 Scan track ID barcode

The user will be prompted with following message.

SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition

134

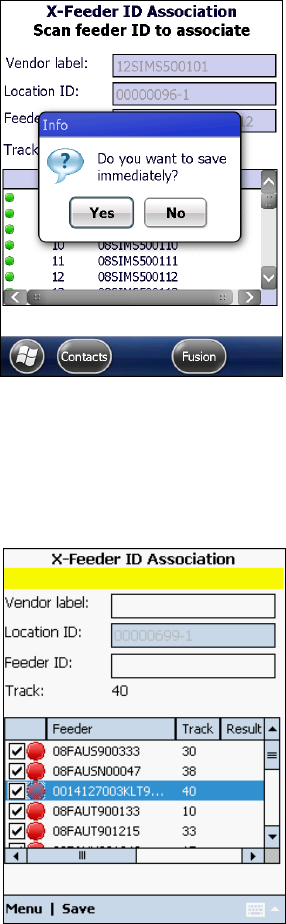

Figure 14-18: Save confirmation after track ID scan

 Tap Yes to save the association result immediately.

Or No to go to the summary page. The following screen is displayed, in which the track just

scanned is indicated.

Figure 14-19: X Feeder ID Association with Track

 Tap on Save to save the entries.

Or tap Menu  Close to cancel the association.

If Save is selected, the following screen is displayed indicating the association is successful.
