SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition

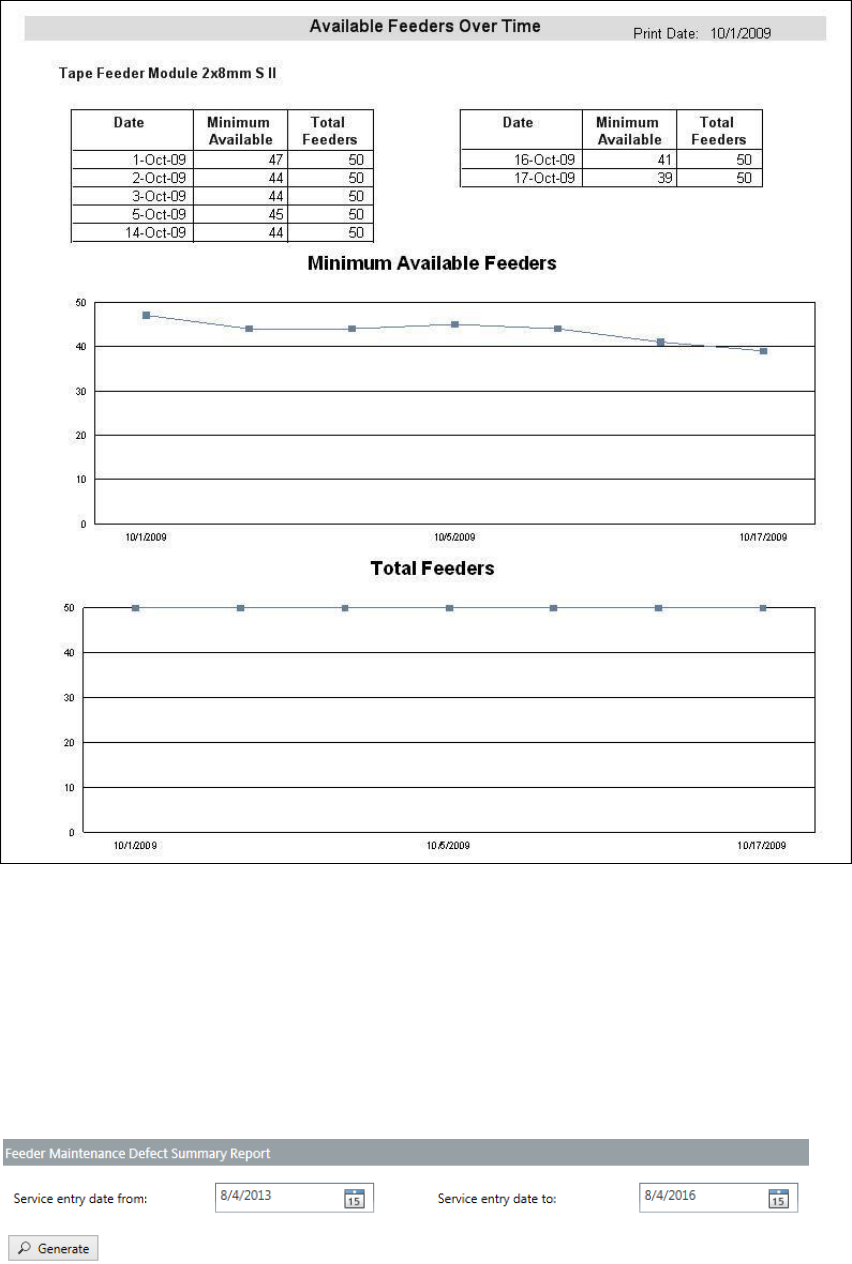

Example: Available Feeders Over Time Monthly Report

Figure 8-11: Available Feeders Over Time Monthly Report

8.5 Feeder Maintenance Defect Report view

 Click on Report – Feeder Maintenance Defect Report in the menu bar to open the

view.

The Feeder Maintenance Defect Summary Report view is displayed.

Figure 8-12: Feeder Maintenance Defect Summary Report view

 Select a service entry date range to search for the number of maintained feeders to

generate the report.

SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition

8.5.1 Description of the fields

Service entry date from

Allows the user to search for feeders based on the service entry date to generate the report.

All feeders that were maintained on/after the selected date are included in the report.

Service entry date to

Allows the user to search for feeders based on the service entry date to generate the report.

All feeders that were maintained on/before the selected date are included in the report.

8.5.2 Description of the buttons

Generate

 Click on this button to search for maintained feeders in the selected service entry date

range and generate the report.

Reset

 Click on this button to clear all fields and reset them to their respective default values.

Note:

Feeders with feeder status Scrapped will not be included in the report.

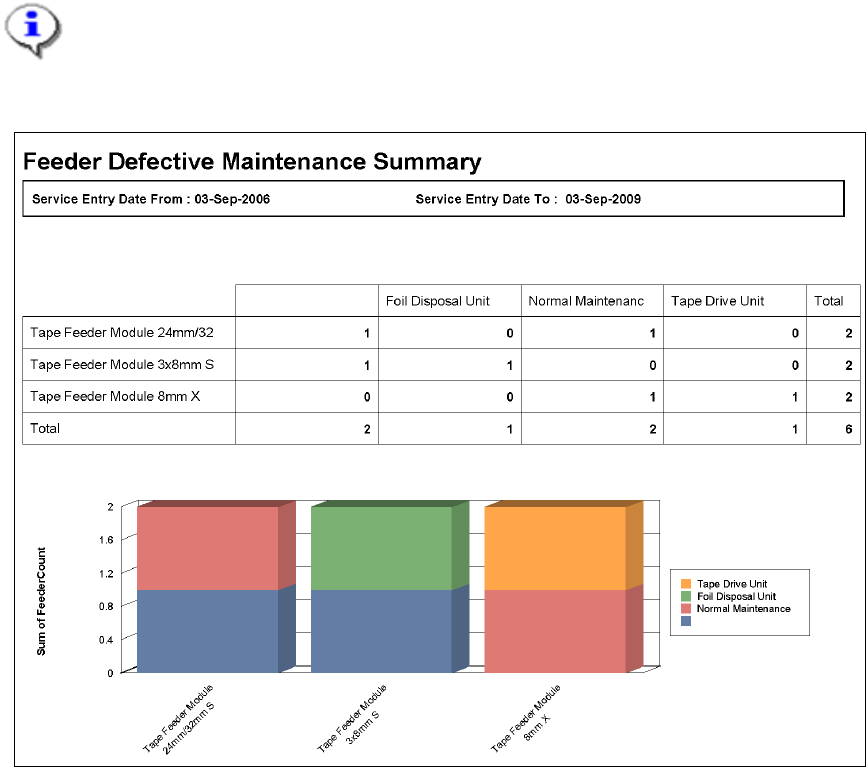

Example: Feeder Maintenance Defect Report

Figure 8-13: Feeder Maintenance Defect Report

SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition

9 Settings menu

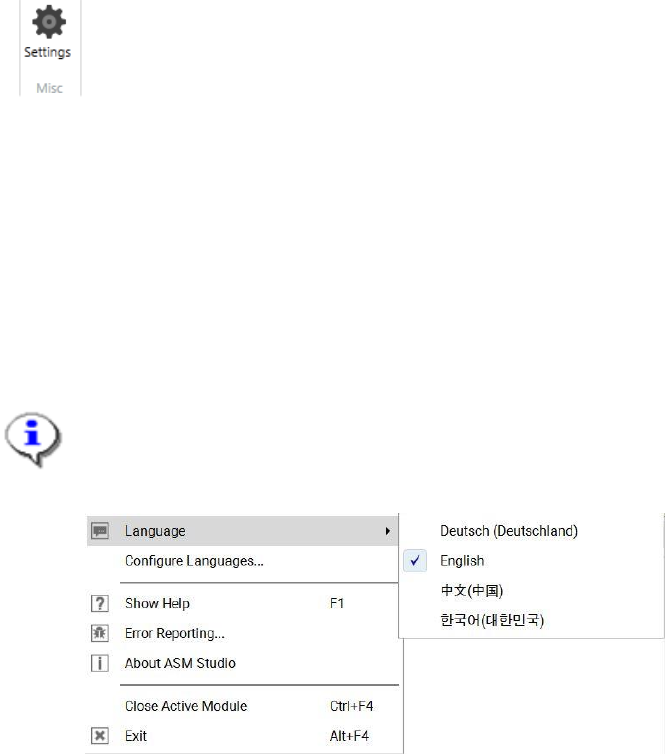

 Click on Settings button in the menu bar to open the Setting dialog.

Figure 9-1 Settings menu button

From the Settings function, the user can

1) Define a common configuration,

2) Make global settings,

3) Define feeder and location ID format,

4) Define barcode label printing format for feeders and locations,

5) Change user passwords

Note:

The language change function which was previously parked under Settings, is now

accessed from the ASM Studio main menu.

Figure 9-2 ASM Studio Language Change
