SIPLACE Feeder Ma nager 3.3 (R18 -1) / Getting S tarted 08/2018 Edition 30 Clicking the Export T o Excel bu tton will allow you to export the curre nt feeder’s location assignment histor y to an excel file. Note: Exporte…

SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition

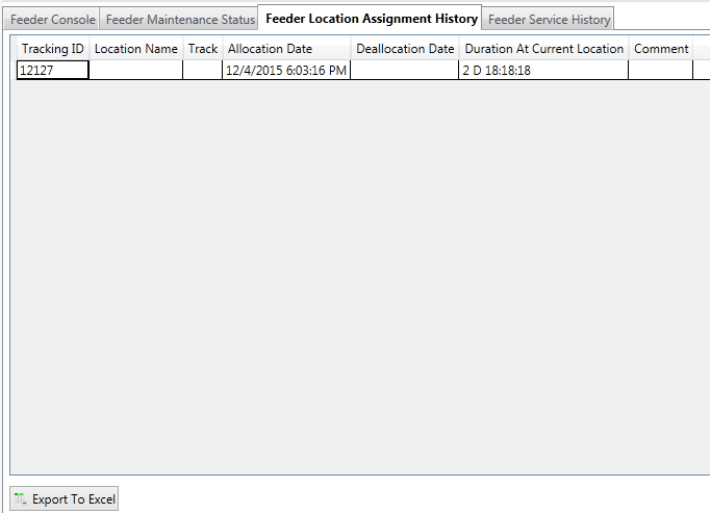

Figure 5-7: Feeder Location Assignment History tab

Tracking ID

This is a unique number referring to a particular record in the list for tracking purposes.

Location Name

The location is displayed, to which the feeder is assigned.

Track

The track is displayed.

Allocation Date

The date and time are displayed, at which the feeder was assigned to the location.

Deallocation Date

The date and time are displayed, at which the feeder was de-allocated from the location and

moved to another location.

Duration at Current Location

The duration is displayed for which the feeder has been assigned to the current location.

Comment

Allows the user to enter any comments associated with the movement of a feeder from one

location to another.

 Double-click on the corresponding cell to open the Feeder Location Comment window

and enter the comments for a particular record.

SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition

Clicking the Export To Excel button will allow you to export the current feeder’s location

assignment history to an excel file.

Note:

Exported excel files require Microsoft Office Excel or Excel Viewer 2007 or higher to open.

5.1.5 Feeder Service History tab

This tab allows you to display the feeder’s service history within a certain timespan at your

selection. The result will be displayed in the table below.

Note: If you don’t select From and To time before clicking the Display button, all the available

service history for this feeder will be displayed.

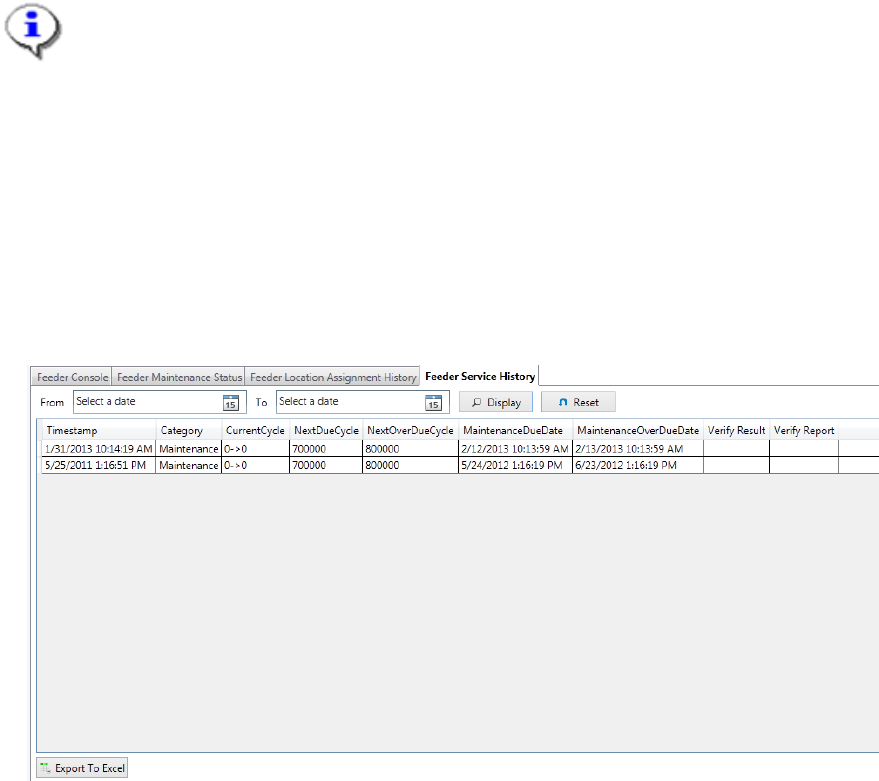

Figure 5-8: Feeder Maintenance History tab

The fields of the service history data records are explained below.

5.1.5.1 Description of Fields of the Feeder Service History

Timestamp

This is the timestamp of a particular record in the list for tracking purposes.

Category

This is the category of the maintenance activity, including (Defect, Verification and Complete

Maintenance).

Current Cycle

The current cycle count is displayed for this feeder.

SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition

Next Due Cycle

The number of cycle counts to the next due value is displayed for the defective/serviced

feeder.

Next Overdue Cycle

The number of cycle counts to the next overdue value is displayed for the defective/serviced

feeder.

Maintenance Due Date

The maintenance due date is displayed for the defective/serviced feeder.

Maintenance Overdue Date

The maintenance overdue date is displayed for the defective/serviced feeder.

Result

This is the result of the feeder verification test. This field is only applicable for maintenance

category Verification.

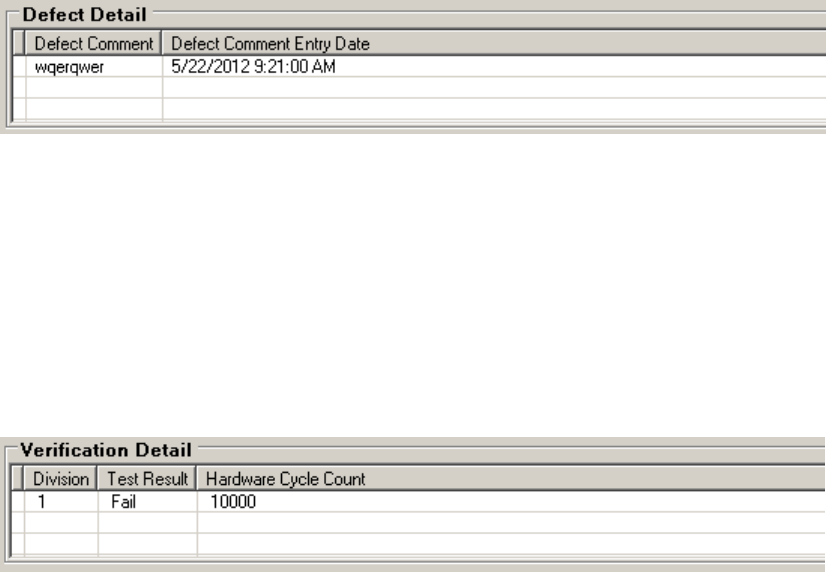

When the record is selected, a detail pane for the record is shown below the Maintenance

History table. Based on the maintenance category, the detail pane will show following fields.
