SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
81

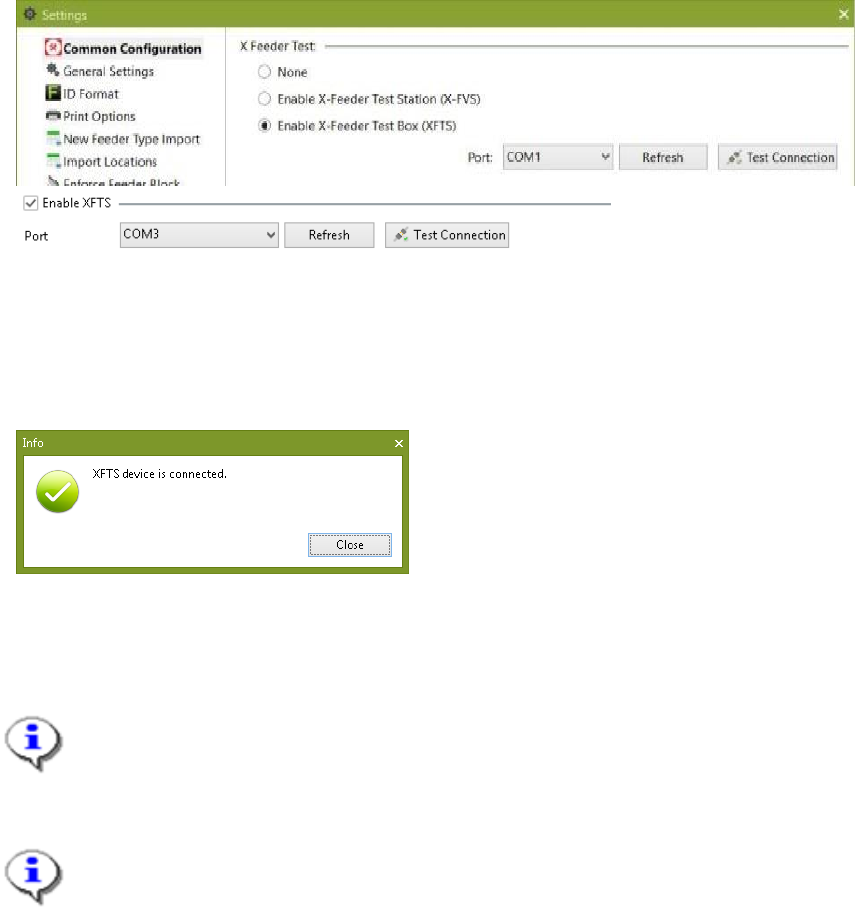

Check the Enable X-Feeder Test Box (XFTS).
The Refresh button and Test Connection button will be enabled.
Plug the XFTS USB cable to the FM Client PC, then power on the XFTS.
Press Refresh button
The com port for XFTS connection is detected.
Figure 9-9 XFTS virtual com port is detected
Press the Test Connection button.
Following dialog will be shown to confirm the connection test to the XFTS device is successful.
Figure 9-10 XFTS connectivity is tested successfully
Press Save to save your settings.
Note:
Once the configuration is done successfully, subsequent XFTS test results will be
automatically saved in the Feeder Manager's Feeder Maintenance History under the
tested feeder.
Note:
When FM Client application detects the XFTS connection, it will automatically
retrieve all the existing test results and empty the XFTS data memory.
9.1.3.1 Limitations and Restrictions
1) The raw data of XFTS test result does not contain timestamp information. FM Client uses
the retrieval time as the time for the test results.
2) XFTS is only able to store a maximum of one hundred (100) test results in its data
memory.
3) Only one XFTS connection is supported per FM Client computer.
SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
82
9.1.3.2 Troubleshooting
If test connection to XFTS fails, this dialog will be shown.

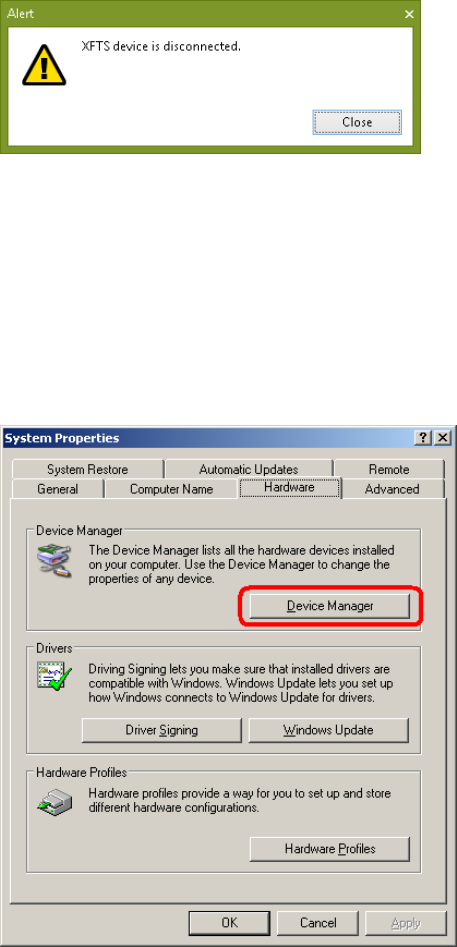

Figure 9-11 XFTS connection test failed
Follow these steps to troubleshoot.
Open Device Manager
From Windows Start menu, click Start Settings Control Panel, then double click
System to open the System Properties window. In Hardware tab, click Device Manager
button.
Figure 9-12 How to start Windows Device Manager
Once Device Manager is opened, right click on Ports (COM & LPT) and select Scan for
hardware changes.
SIPLACE Feeder Manager 3.3 (R18-1) / Getting Started 08/2018 Edition
83

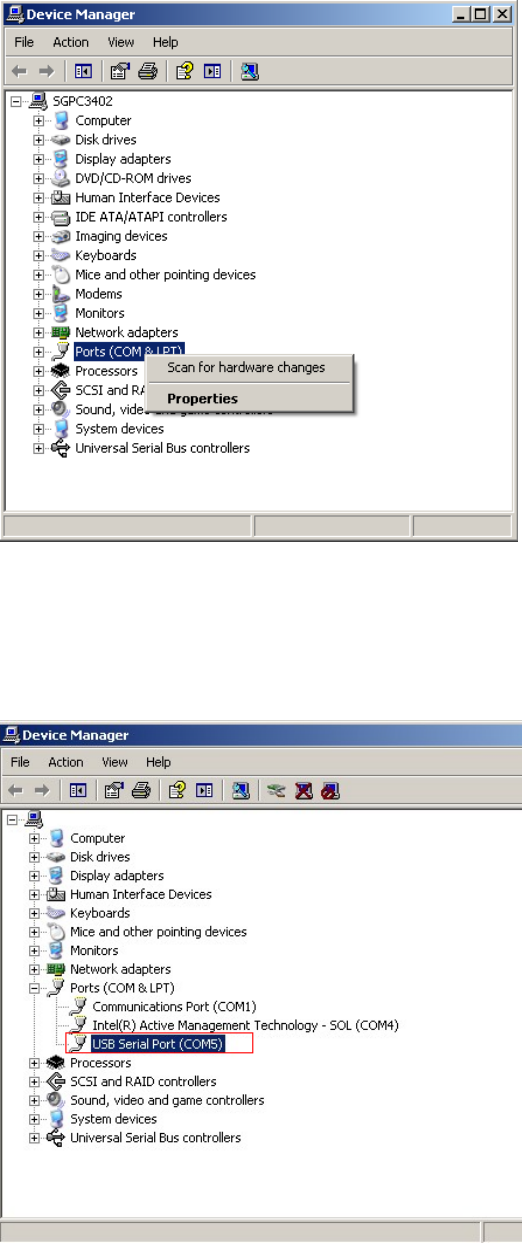

Figure 9-13 Windows Device Manager - Scan for hardware changes
If the XFTS and the cable are in normal state, you will see the XFTS detected as a USB Serial
Port device with the port number indicated as shown below. This means the XFTS is
successfully detected.
Figure 9-14 Device Manager - XFTS is detected
In case if previously XFTS function was enabled, but disconnected or powered off, you will
see the following error message (using COM3 as example) when Feeder Manager Client is
started inside ASM Studio.
